Gr2 Gr7 Gr12 Forged Titanium Tubesheet Rings and Discs CNC Machined

Gr2 Gr7 Gr12 Forged Titanium Tubesheet Rings and Discs CNC Machined

Gr2 Gr7 Gr12 Forged Titanium Tubesheet Rings and Discs CNC Machined

Brand Name: LHTi
Model Number: LHTI-015
MOQ: 100pcs
Price: USD18-85 per pc
Payment Terms: Western Union,T/T,
Supply Ability: 5 Ton per month
Detail Information
Product Description
Detail Information
Place of Origin:
Baoji City Shaanxi Province
Certification:
ISO9001
Grade:
Gr2 Gr7 Gr12
Stype:
ANSI, DIN, ISO, JIS, ASME, ASME B16.47 ANSI B16.5
Standard:
ANSI, DIN, JIS, ASME
Technique:
Forged And CNC Machined
Payment:
Alibaba Trade Assurance, TT, Western Union Etc
Application:
Chemical Industry
Inspection:
UT%
Certificate:
ISO9001, TUV Etc.
Packaging Details:
Standard foreigh packing, plastic inside and plywood case outside Or as the clients' request
Supply Ability:
5 Ton per month
Highlight:

Forged Titanium Tubesheet

,

Titanium Forged Discs Gr12

,

Titanium Tubesheet Discs

Product Description
Gr2 Gr7 Gr12 Forged Titanium Tubesheet Rings Discs
High-quality forged titanium tubesheet rings and discs available in Grade 2, Grade 7, and Grade 12 titanium alloys.
Product Parameters
Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Σb (Mpa) σr0.2 (Mpa)
Grade 1 0.2 0.18 0.03 0.1 0.015 24 240 140
Grade 2 0.3 0.25 0.03 0.1 0.015 20 400 275
Grade 5 0.4 0.2 0.05 0.1 0.015 5.5-6.7 3.5-4.5 10 895 828
Grade 7 0.3 0.25 0.03 0.1 0.015 0.12-0.25 20 400 275
Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 18 460 300
Product Images

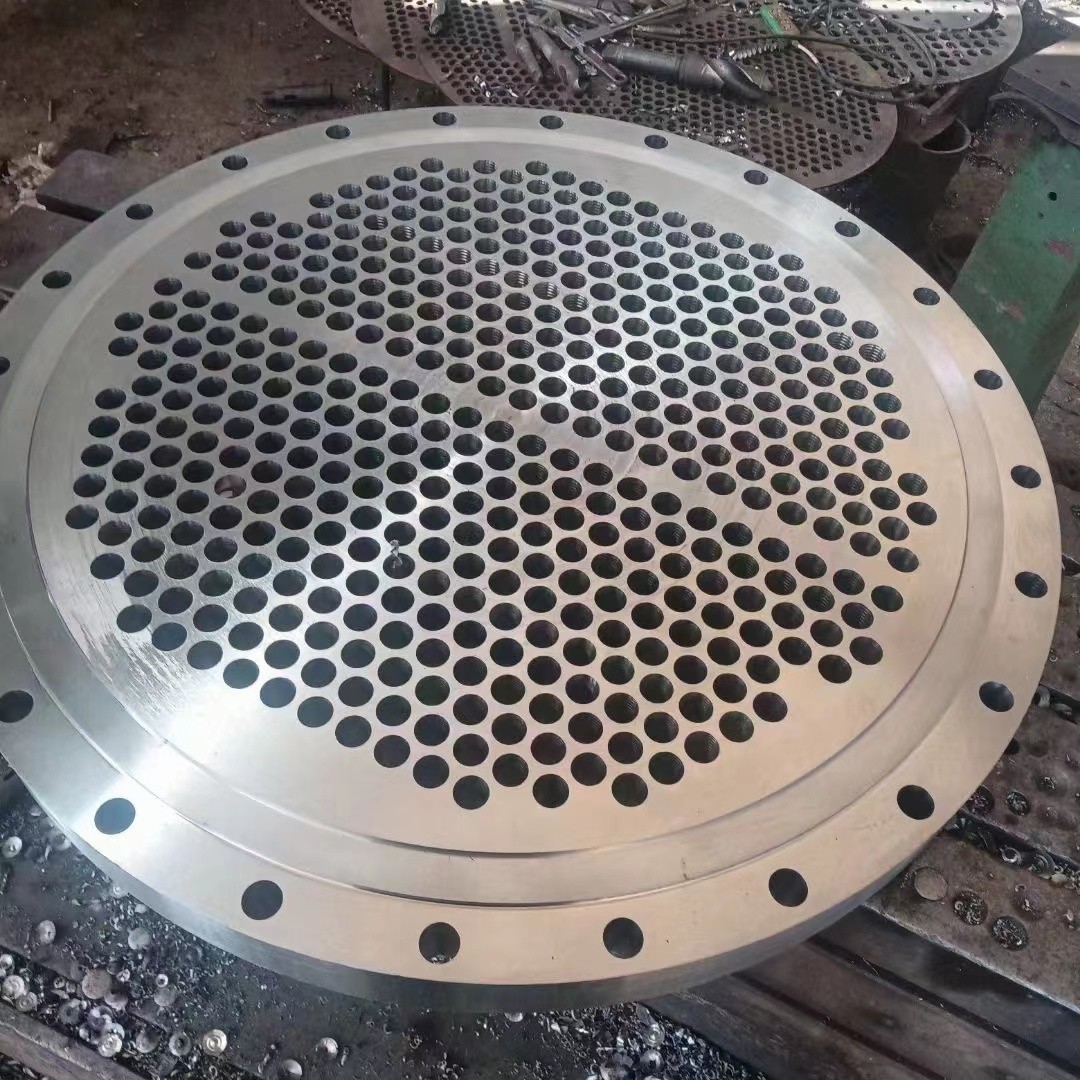

Gr2 Gr7 Gr12 Forged Titanium Tubesheet Rings and Discs CNC Machined 0 Gr2 Gr7 Gr12 Forged Titanium Tubesheet Rings and Discs CNC Machined 1
Available Flange Types
Custom flange types available upon request. Contact us for specific flange requirements.
Detailed Product Images
Gr2 Gr7 Gr12 Forged Titanium Tubesheet Rings and Discs CNC Machined 2 Gr2 Gr7 Gr12 Forged Titanium Tubesheet Rings and Discs CNC Machined 3 Gr2 Gr7 Gr12 Forged Titanium Tubesheet Rings and Discs CNC Machined 4
