ASME B16.5 Gr2 Titanium Weld Neck Flange RF

Brand Name:	LIHUA
Model Number:	LH-WN
MOQ:	3 pieces
Payment Terms:	L/C,T/T,Western Union etc.
Supply Ability:	50000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV

Product Name:

High Quality Best Price ASME/ANSI B16.5 Gr2 Titanium Flange

Standard:

ASME B16.5 ASTM B381

Material:

Gr2 Gr5 Gr7 Gr12

Application:

Oil & Gas Industry

Sealing Surface:

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Forged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

50000 pcs per month

Highlight:

Polished Titanium Weld Neck Flange

Oil Gas Industry Titanium Flange

Weld Neck Titanium Blind Flange

Product Description

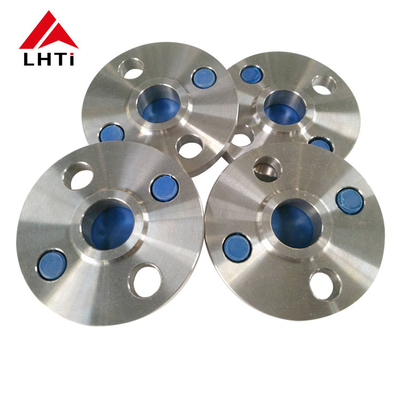

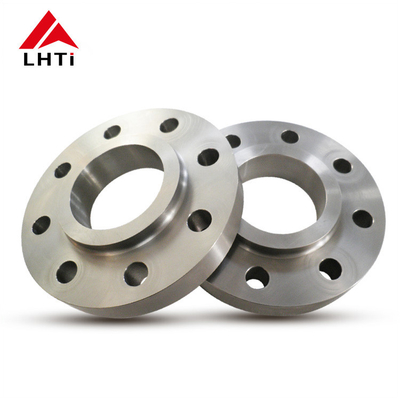

ASME B16.5 Gr2 Titanium Weld Neck Flange RF

This titanium weld neck flange is forged and CNC machined to ASME B16.5 with dimensional tolerance to ASTM B381. It is supplied in Grade 2, Grade 5, Grade 7 and Grade 12 with a polished RF sealing face, in sizes from NPS 1/2 to NPS 24 and pressure ratings from Class 150 to Class 2500, covering oil and gas, chemical and marine service.

Technical Specifications

Product Type	Weld neck (WN) flange
Standard	ASME B16.5, ASTM B381
Grade	Gr2, Gr5, Gr7, Gr12
Size	NPS 1/2 - NPS 24 (DN 10 - DN 2000)
Pressure Rating	Class 150 - Class 2500 (PN6 - PN64)
Sealing Surface	RF (raised face)
Surface	Polished
Technique	Forged and CNC machined
Inspection	Ultrasonic testing and material test report EN10204.3.1
Certification	ISO9001, TUV

Mechanical properties by grade:

Grade	Rp 0.2 (MPa)	Rm (MPa)	Elongation (%)
Grade 2	275-450	345-480	20
Grade 5	800-1100	890-1400	10
Grade 7	275-450	345	20
Grade 12	414-460	499-600	25

Applications & Titanium Advantages

Weld neck flanges are used where a strong, leak free connection is needed on high pressure or high temperature lines. Titanium resists seawater and aggressive chemicals, so these flanges suit oil and gas pipelines, chemical process equipment, desalination plants and marine piping. Compared with carbon steel, titanium gives a much longer service life at low weight, and the forged structure provides uniform mechanical properties at the neck where the flange meets the pipe.

Quality, Customization & Inquiry

Each flange is forged and CNC machined under ISO9001 and TUV quality control, and ultrasonic testing with a material test report to EN10204.3.1 is available. Size, pressure class, sealing surface and grade can be customized, monthly capacity reaches 50000 pcs and orders are normally delivered within 3-15 working days. Please send your size, pressure rating, facing and grade so that we can prepare an exact quotation.

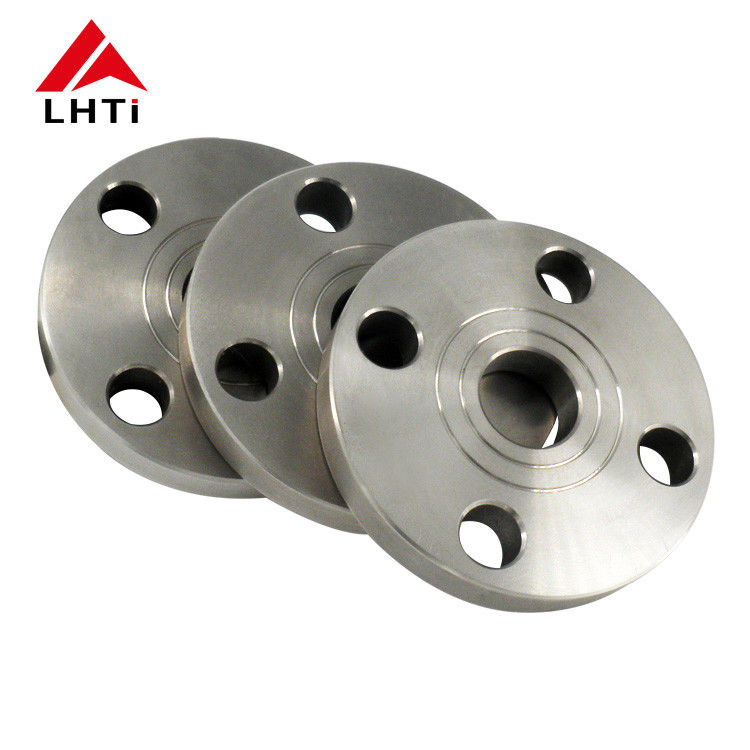

Titanium weld neck flange
