ASTM16.5 Gr2 Welding Neck Flange Polished Titanium Pipe Connect

Basic Information
Place of Origin: Baoji, China
Brand Name: LIHUA
Certification: ISO9001, TUV
Model Number: LH-WN
Minimum Order Quantity: 3 pieces
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T, Western Union etc.
Supply Ability: 50000 pcs per month
Detail Information
Product Name: Factory Supply Titanium ASTM16.5 Gr2 Welding Neck Flange(WN) DN10-DN600 Standard: ASME B16.5 ASTM B381
Material: Gr2 Gr5 Gr7 Gr12 Application: Oil & Gas Industry
Sealing Surface: RF Size: NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure: 150#-2500# Surface: Polished
Technique: Forged And CNC Machined Inspection: Ultrasonic Testing & Material Test Report EN10204.3.1
High Light:

Pipe Connect Weld Neck Flange

,

Polished Titanium Pipe Flange

,

ASTM16.5 Titanium Weld Neck Flange


Product Description

Factory Supply Titanium ASTM16.5 Gr2 Welding Neck Flange(WN) DN10-DN600

Titanium wn flange/ titanium welding neck flange


Titanium welding neck flanges have good strength, extremely hard bearings and many other functions are available. These can be used in marine applications, chemical industry and many other forms. It provides high performance and packaging for safety. This is easy to install and can be used in a variety of other applications, such as chemical and mechanical. Titanium flanges are available in many other standards and materials.



Product name Titanium flange
Type WN
Standards ASME B16.5 ASTM B381
Size 1/2" to 36"
Pressure Ratings Class 150, 300#, 600#, CL 900, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Grade gr2 gr5 gr7 gr12
Other Flanges Types Lapped Joint Flanges, Flat Flanges, Blind Flanges, Square Flanges, RTJ Flanges, Long Neck Weld Flanges, Reducing Flanges, Nipo Flanges, Threaded Flanges, Orifice Flanges, Expander Flanges, Socket Weld Flanges, High Hub Blinds Flanges, Forged Flanges, Slip On Flanges etc



ASTM B265



Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Rp 0.2 Rm
No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa
Grade 2 0.3 0.25 0.03 0.1 0.015 / / / / / 20 275-450 345-480
Grade 5 0.4 0.2 0.05 0.1 0.015 / 5.5-6.7 /   / 10 800-1100 890-1400
Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 / / / / 20 275-450** 345
Grade 12 0.3 0.25 0.03 0.1 0.015 / / / 0.3 0.8 25 414-460 499-600


Detailed images:

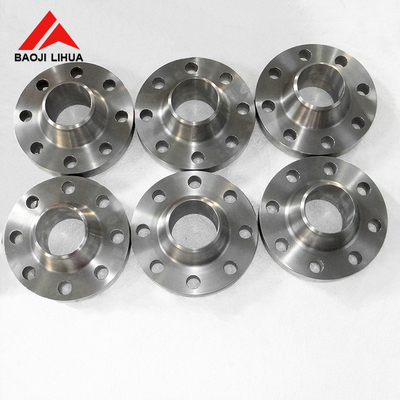

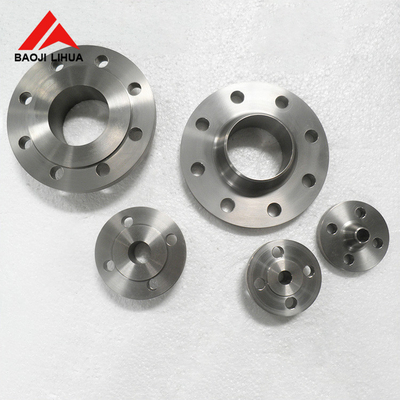

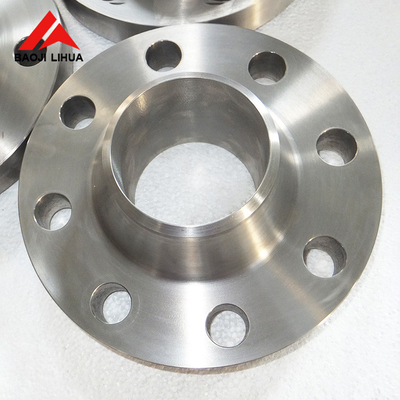

 ASTM16.5 Gr2 Welding Neck Flange Polished Titanium Pipe Connect 0ASTM16.5 Gr2 Welding Neck Flange Polished Titanium Pipe Connect 1ASTM16.5 Gr2 Welding Neck Flange Polished Titanium Pipe Connect 2

Titanium Blind Flange Type 05

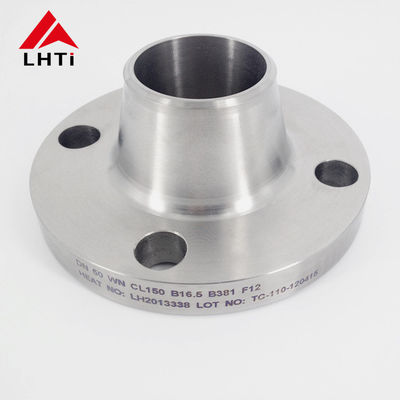

ASTM16.5 Gr2 Welding Neck Flange Polished Titanium Pipe Connect 4



Packagings:

ASTM16.5 Gr2 Welding Neck Flange Polished Titanium Pipe Connect 5



Titanium flange Production Process



Titanium Blind Flange Type 05















































About us

We are a titanium manufacturer with over 15 years production and export experience.We offer different titanium flanges: titanium blind flanges, necks and lap flanges,slip on flange, plate flange etc, in a range of diameters from ½ "to 24". Dimensional tolerance to ASTM B/SB 381. Whether you are working on a production job that requires thousands of pieces, or a project that requires only one titanium pipe flange, we can help. You'll get everything you need to get the job done, no matter how big or small your needs are!

Titanium Blind Flange Type 05

ASTM16.5 Gr2 Welding Neck Flange Polished Titanium Pipe Connect 8









ASTM16.5 Gr2 Welding Neck Flange Polished Titanium Pipe Connect 9
