ASTM B381 F2 Titanium WN Blind Flange 1/2-24 Inch

Brand Name:	LIHUA
Model Number:	LH-WN
MOQ:	3 pieces
Payment Terms:	L/C,T/T,Western Union etc.
Supply Ability:	50000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, China

Certification:

ISO9001, TUV

Product Name:

Best Price An Forged ASME B16.5 1/2"-24" ASTM B381 F2 Ti Titanium WN Slip-on Blind Flange

Standard:

ASME B16.5 ASTM B381

Material:

Gr2 Gr5 Gr7 Gr12

Application:

Oil & Gas Industry

Sealing Surface:

Size:

NPS 1/2 - NPS 24(DN 10 - 2000)

Pressure:

150#-2500#

Surface:

Polished

Technique:

Forged And CNC Machined

Inspection:

Ultrasonic Testing & Material Test Report EN10204.3.1

Packaging Details:

Wrapped by foam contained in plywood box for export

Supply Ability:

50000 pcs per month

Highlight:

Forged Slip On Blind Flange

F2 Titanium Slip On Blind Flange

Weld Neck Blind Flange 1/2"

Product Description

ASTM B381 F2 Titanium WN Blind Flange 1/2-24 Inch

Titanium weld neck flanges have good strength and extremely hard bearings, and are used in marine applications, the chemical industry and many other forms. This F2 titanium WN, slip-on and blind flange is forged to ASME B16.5 and ASTM B381 and CNC machined with a polished surface and an RF sealing surface. It is supplied in Gr2, Gr5, Gr7 and Gr12 in sizes from 1/2 inch to 24 inch (DN10-DN2000) and pressure classes from 150# to 2500#, and is easy to install.

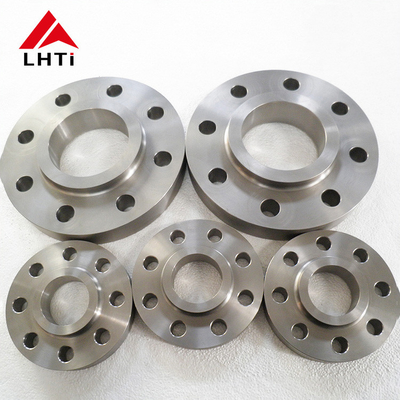

F2 titanium WN blind flange 1

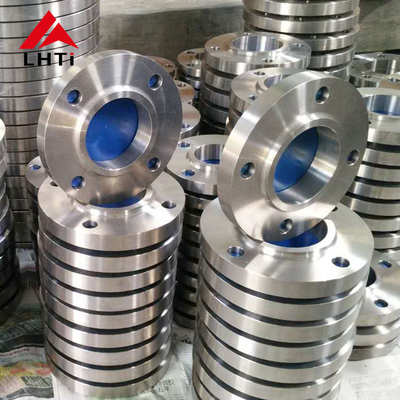

F2 titanium WN blind flange 2

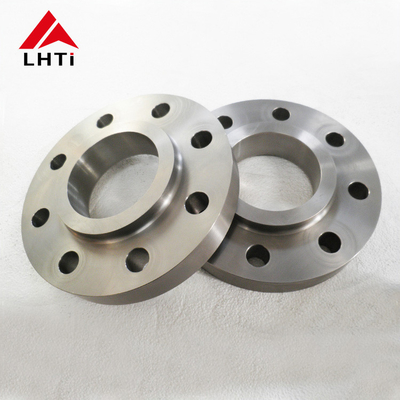

F2 titanium WN blind flange 3

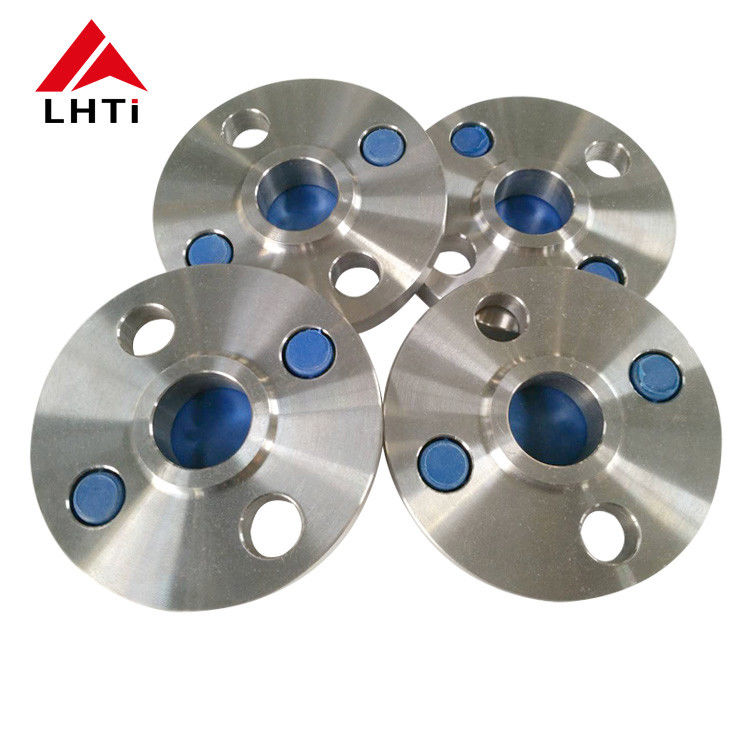

F2 titanium WN blind flange 4

F2 titanium WN blind flange 5

F2 titanium WN blind flange 6

F2 titanium WN blind flange 7

F2 titanium WN blind flange 8

F2 titanium WN blind flange 9

F2 titanium WN blind flange 10

Technical Specifications

Product name	Titanium flange
Type	WN, slip-on, blind
Standard	ASME B16.5, ASTM B381
Size	1/2 inch - 36 inch; NPS 1/2 - NPS 24 (DN10 - DN2000)
Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6 - PN64
Grade	Gr2, Gr5, Gr7, Gr12
Sealing surface	RF
Surface	Polished
Technique	Forged and CNC machined
Inspection	Ultrasonic testing and material test report EN 10204 3.1
Application	Oil and gas industry

ASTM B265 Grade Properties

Grade	Fe max	O max	N max	C max	H max	Elong'n %	Rp0.2 MPa	Rm MPa
Grade 2	0.3	0.25	0.03	0.1	0.015	20	275-450	345-480
Grade 5	0.4	0.2	0.05	0.1	0.015	10	800-1100	890-1400
Grade 7	0.3	0.25	0.03	0.1	0.015	20	275-450	345
Grade 12	0.3	0.25	0.03	0.1	0.015	25	414-460	499-600

Other Flange Types Available

Type	Also Supplied
Standard types	WN, slip-on, blind, plate, lapped joint, flat, square
Special types	RTJ, long neck weld, reducing, nipo, threaded, orifice, expander, socket weld, high hub blind, forged

Applications & Titanium Advantages

Titanium flanges are used in the oil and gas industry, marine applications, chemical and mechanical equipment. Titanium offers high strength, excellent corrosion resistance and long service life, so connections stay leak-free and reliable even in demanding environments.

Quality, Customization & Inquiry

LIHUA is a titanium manufacturer with over 15 years of production and export experience, supplying flanges from 1/2 inch to 24 inch with dimensional tolerance to ASTM B/SB 381, and ISO 9001 and TUV quality control with EN 10204 3.1 reports. Whether a production job needs thousands of pieces or a single flange, custom sizes are welcome, wrapped in foam inside a plywood box for export. Please send your drawing or specification for a quotation.
