|Place of Origin:||China|
|Certification:||ISO9001:2015; TUV; SGS;BV|
|Model Number:||Titanium wire|
|Minimum Order Quantity:||20 kg|
|Price:||USD16.00-28.00 per kg|
|Packaging Details:||Plastic bag with laber, outside plastic box, then plywod box|
|Delivery Time:||7-20 work days|
|Payment Terms:||T/T, MoneyGram, L/C, Western Union, Paypal|
|Supply Ability:||200000 kg per month|
|Material:||High Quality And Best Price Gr1 Gr2 Pure Titanium Wire For Welding AWS A5.16 Titanium Spool Wire||Grade:||Gr1, Gr2|
|Diameter:||0.5mm-3mm||Straight Wire Length:||1000mm-3000mm|
|MOQ:||20 Kg||Package Box:||5kg Per Plastic Box, Or As Your Request|
|Certificate:||ISO9001:2008||Processing Service:||Bending, Cutting|
|Package Coil:||10~15kg ,or As Per Buyer Requirement||Advantage:||Corrosion Resistance, High Strength, Light Quality|

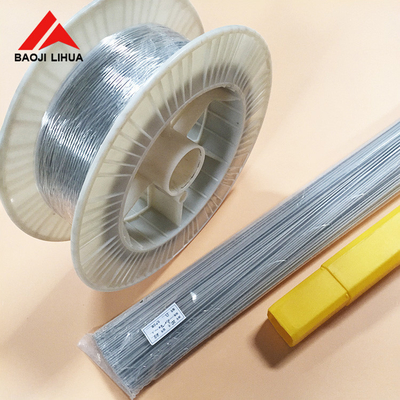

Pure Titanium Wire Spool,
Welding Titanium Wire Spool,
Gr2 Titanium Round Wire
High Quality And Best Price Gr1 Gr2 Pure Titanium Wire For Welding AWS A5.16 Titanium Spool Wire
|Size (mm)||Dia 0.5||Dia 0.8||Dia 1.0||Dia 1.2||Dia 1.6||Dia 2.0||Dia 2.4||Dia 2.5||Dia 3.0||Dia 3.2||Dia 4.0|
2.Guide to choose of filler metal for general purpose titanium welding
|ASTM Base Metal Grade||Base metal||Normal composition||Recommended Filler Metal|
|UTS(min.) ksi[Mpa]||YS(min.) ksi[Mpa]|
|Grade 1||35||20||Unalloyed Ti CP1||ERTi-1|
|Grade 2||50||40||Unalloyed Ti CP2||ERTi-2|
|Grade 4||80||70||Unalloyed Ti CP4||ERTi-4|
|Grade 5||130||120||Ti 6AL-4V||ERTi-5|
|Grade 7||50||40||Ti 0.15Pd||ERTi-7|
3.Chemical compostion requirements
4. Definition of Different Levels
ERTI-1: Grade 1 is the lowest strength unalloyed (or Commercially Pure-CP)grade. Grade 1 is used in applications where ductility is paramount,such as explosive cladding, loose linings, expanded metal, and deep drawing applications. It is also used in electrolytic applications like coated anode substrates for production of chlorine and sodium chlorate.
ERTI-2: Grade 2 is the "workhorse"of the industrial corrosion market and most common unalloyed(or commercially Pure-CP)grade. Grade 2 is generally the most readily available in all product forms and has the lowest cost . It is used for process equirpment like pressure vessels ,columns ,tanks,heat exchangers,shafts,blowers and fans,conderser tubing ,valves,fittings and pipe.
ERTI-4: Grade 4 is the highest strenth unalloyed(or Commerically Pure-CP) grade.Grade 4 is rarely used I corrosion service ,but have beeen used(under AMS Specifications)in aircraft components where its higher strength can reduce the weight of components like bulk-heads and firewalls.

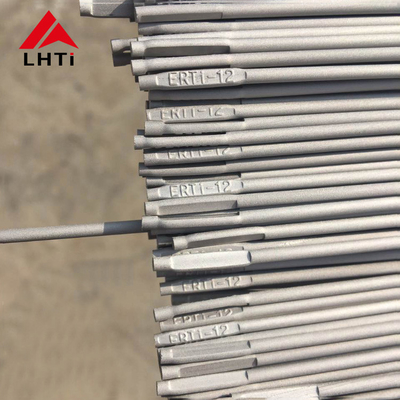

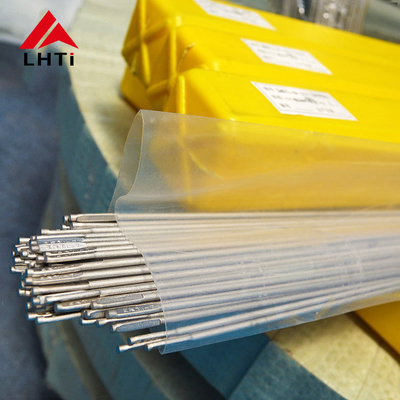

5. Detailed Images and Application
