Gr1 Pure Titanium Disc Cold Rolled Bright Surface

Brand Name:	LHTi
Model Number:	TST117
MOQ:	5 piece
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	5000 piece per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Place Of Origin:

China

Brand Name:

LHTi

Technique:

Stamping

Grade:

GR1

Powder Or Not:

Not Powder

Ti Content (%):

99.7% Min

Product Name:

Titanium Disk Titanium Disc

Shape:

Round

Material:

Gr1 Gr2 Gr5 Gr7 Gr9 Gr12

MOQ:

5 Piece

Color:

Silver Gray

Surface:

Cold Rolled Bright

Technology:

Cold Colled Stamping

Density:

4.51g/cm^3

Packed:

Wooden Case

Purity:

>99.7%

Packaging Details:

Wooden Case

Supply Ability:

5000 piece per week

Highlight:

Bright Pure Titanium Disc

Cold Rolled Titanium Disk

Pure Titanium Alloy Disc

Product Description

Gr1 Pure Titanium Disc Cold Rolled Bright Surface

Titanium is a silver white transition metal with the chemical symbol Ti and atomic number 22. It is light, strong, has a metallic luster and resists corrosion well, including in sea water, aqua regia and chlorine, which is why it is called the space metal. This disc is made from GR1 pure titanium with a titanium content of more than 99.7%, cold rolled and stamped to ASTM B265 and supplied round with a bright surface. Titanium is close to human bone and has good biocompatibility with no side effects on human tissue, so the same disc is used for medical implants as well as for industrial parts.

Product Specification

Grade	GR1
Material	Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Technique	Cold rolled stamping
Surface	Cold rolled bright
Shape	Round
Purity	Over 99.7%
Powder Or Not	Not powder
Density	4.51 g/cm3
Color	Silver gray
Standard	ASTM B265
Sample Size	Diameter 70 mm x thickness 1 mm

Chemical Composition (mass %)

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.4	0.2	5.5-6.75	3.5-4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.3	0.25	/	/	0.12-0.25	/	/	bal

Mechanical Properties

Grade	Tensile Strength min (MPa)	Yield Strength min (MPa)	Elongation min (%)
Gr1 (Ta1)	240	138	24
Gr2 (Ta2)	345	275	20
Gr5 (Ti6Al4V)	895	828	10
Gr7 (Ti-0.2Pd)	345	275	20
Gr9 (Ti-3Al-2.5V)	620	483	15
Gr12 (Ti-0.3Mo-0.8Ni)	483	345	18

Disc and Ring Dimensions

Product	Outer Diameter (mm)	Inner Diameter (mm)	Height (mm)
Disc	150 - 300	/	20 - 140
Disc	300 - 500	/	25 - 150
Disc	500 - 600	/	30 - 110
Ring	200 - 400	100 - 300	20 - 150
Ring	400 - 700	150 - 500	30 - 250
Ring	700 - 900	300 - 700	35 - 300
Ring	900 - 1300	400 - 900	50 - 400

Grades GR1, GR2, GR5, GR7, GR9, GR12 and GR23, standard ASTM B381.

Product Pictures

Gr1 pure titanium disc cold rolled bright

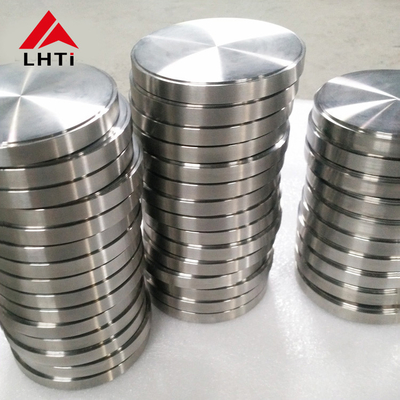

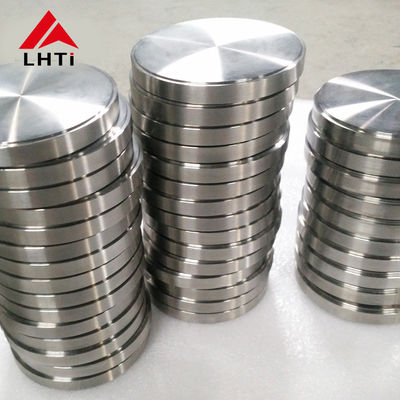

Round titanium disc bright surface

Titanium disc stamped ASTM B265

Pure titanium disc 99.7 percent purity

Cold rolled titanium disc silver gray

Titanium disc and ring dimensions

Titanium disc inspection

Packed titanium disc wooden case

Applications

Medical implants and instruments, chemical and marine equipment, and general industrial parts that need a light, non magnetic and corrosion resistant disc. Diameter and thickness can be produced to the drawing.
