Dental Titanium Disc for CAD CAM Crown Bridge

Brand Name:	LHTi
Model Number:	TST117
MOQ:	5 piece
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	5000 piece per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Place Of Origin:

China

Brand Name:

LHTi

Technique:

Stamping

Grade:

GR1

Powder Or Not:

Not Powder

Ti Content (%):

99.7% Min

Product Name:

Titanium Disk Titanium Disc

Shape:

Round

Material:

Gr1 Gr2 Gr5 Gr7 Gr9 Gr12

MOQ:

5 Piece

Color:

Silver Gray

Surface:

Cold Rolled Bright

Technology:

Cold Colled Stamping

Density:

4.51g/cm^3

Packed:

Wooden Case

Purity:

>99.7%

Packaging Details:

Wooden Case

Supply Ability:

5000 piece per week

Highlight:

Crown Bridge Titanium Alloy Disc

Dental Titanium Alloy Disc

Round Titanium Dental Disc

Product Description

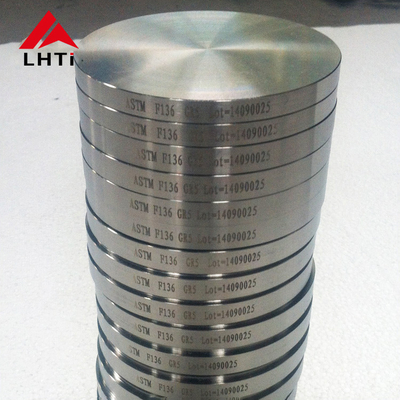

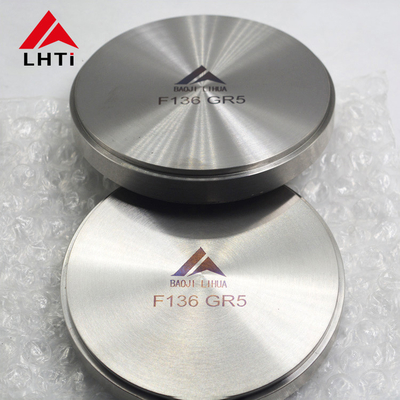

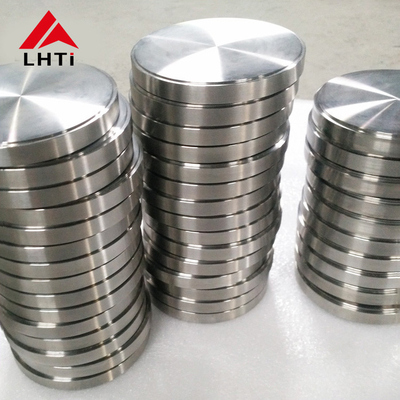

Dental Titanium Disc for CAD CAM Crown Bridge

The dental titanium disc is a round, cold rolled bright blank stamped from pure Gr1 and Gr2 titanium with a purity above 99.7 percent and a density of 4.51 g/cm3. Titanium is light, non magnetic and close to human bone, so it is widely chosen for medical use. These discs are milled into crown and bridge frameworks on CAD CAM machines, and each disc is produced to ASTM B265 and packed in a wooden case.

Technical Specifications

Item	Specification
Material Grades	Gr1, Gr2
Purity	Over 99.7%
Standard	ASTM B265
Shape	Round disc
Surface	Cold rolled bright
Technique	Cold rolled, stamping
Density	4.51 g/cm3
Color	Silver gray

Chemical Composition (%)

Grade	N	C	H	Fe	O	Ti
Gr1	0.03	0.08	0.015	0.2	0.18	bal
Gr2	0.03	0.08	0.015	0.3	0.25	bal

Mechanical Properties

Grade	Tensile Strength (MPa, min)	Yield Strength (MPa, min)	Elongation (%)
Gr1	240	138	24
Gr2	345	275	20
Gr5	895	828	10
Gr7	345	275	20
Gr9	620	483	15
Gr12	483	345	18

Applications and Inquiry

Dental titanium discs are milled into crown and bridge frameworks and other dental restorations. Because titanium is light, low in elastic modulus, non magnetic and high in strength with good toughness, the discs hold their shape during CAD CAM machining. Tell us your diameter, thickness and grade, such as 70 mm by 1 mm in Gr1, and we will quote the right dental titanium disc for you.
