ASTM F67 Titanium Round Rod 3mm-350mm Annealed

Name: ASTM F67 Titanium Round Rod 3mm-350mm Annealed
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Titanium rod
Price: 84.00 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Titanium rod
MOQ:	50 kg
Payment Terms:	T/T,,L/C,Western Union,Paypal
Supply Ability:	300000 kg per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015; TUV; SGS;BV

Diameter:

3mm-350mm

Material:

Pure/alloy Titanium

Surface:

Bright,Polished,Pickling

Condition:

Annealed; M

MOQ:

50 Kg

Packing:

Standard Export Packing

Packaging Details:

Plywood box with soft foam for additional protection

Supply Ability:

300000 kg per month

Highlight:

ASTM F67 Titanium Connecting Rod

Polished Surface Titanium Round Bar

Titanium Welding Electrode Rod

Product Description

ASTM F67 Titanium Round Rod 3mm-350mm Annealed

Baoji Lihua Nonferrous Metals Co., Ltd. has manufactured titanium products for more than 16 years and supplies annealed titanium round rod and bar to ASTM F67, ASTM B348, ASTM F136 and AMS 4928 for medical and industrial buyers worldwide. The polished bar surface is free from cracks and pitting, and both ends are flattened to keep the length tolerance and a clean appearance.

Technical Specifications

Standard	ASTM B348, ASTM F67, ASTM F136, AMS 4928
Material Grade	Grade 1, Grade 2, Grade 5, Grade 9, Grade 23 (Gr5 ELI)
Diameter	3 mm to 350 mm
Stock Size	3 mm, 6 mm, 8 mm, 10 mm, 20 mm, 30 mm
Length	1000 mm to 6000 mm, or cut to requested length
Product Status	Cold rolled (Y), hot rolled (R), annealed (M), solid
Shape	Round bar, square bar, hex bar
Surface	Bright, polished, pickled
Condition	Annealed

Chemical Requirements

Grade	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr5	0.05	0.08	0.015	0.40	0.20	5.5-6.75	3.5-4.5	/	/	/	bal
Gr7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/	bal
Gr9	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0	/	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2-0.4	0.6-0.9	bal

Physical Properties

Grade	Tensile (ksi)	Tensile (MPa)	Yield (ksi)	Yield (MPa)	Elongation (%)
Grade 1	35	240	20	138	24
Grade 2	50	345	40	275	20
Grade 3	65	450	55	380	18
Grade 4	80	550	70	483	15
Grade 5	130	895	120	828	10
Grade 7	50	345	40	275	20
Grade 9	90	620	70	483	15
Grade 12	70	483	50	345	18
Grade 23	120	828	110	759	10

Diameter Tolerance

Diameter (mm)	h7	h8	h9	h10	h11	h12
3 to 6	12	18	30	48	75	120
6 to 10	15	22	36	58	90	150
10 to 18	18	27	43	70	110	180

Tolerance precision is given in microns. The letter h stands for a tolerance range of -x to +0, and the letter H stands for a range of -0 to +X.

Detailed Images

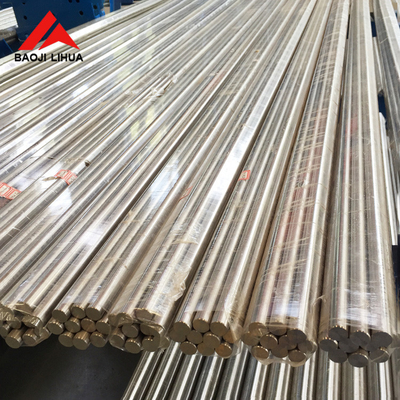

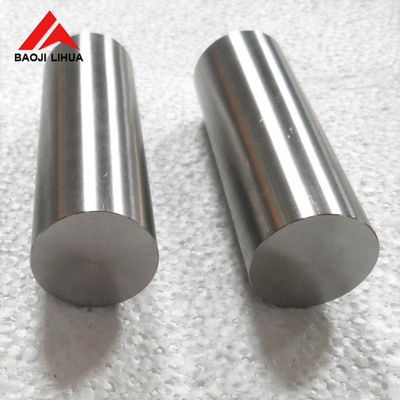

Annealed ASTM F67 titanium round rod polished surface

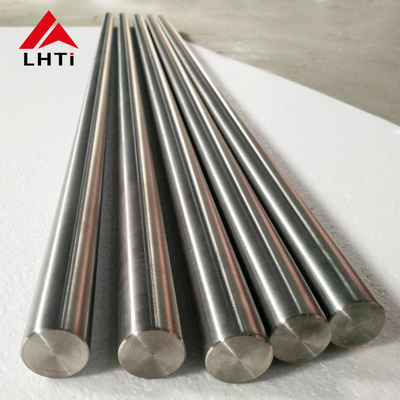

Gr5 titanium round bar 3mm to 350mm diameter

Pickled and polished titanium bar packed in plywood box

Production Process

Titanium sponge and master alloys are compacted into electrodes, melted, forged into billets, then precision forged, machined and finished into bars, so every batch keeps a stable microstructure and a clean polished surface.

Quality Assurance

Products are manufactured to recognized standards such as ASTM, AMS and ASME, and third-party inspection reports are available under an ISO quality management system. Visual inspection confirms the surface is free from flaws and black spots, chemical composition is tested to meet customer demands, and mechanical properties are verified before delivery.
