ASME B381 Gr5 Titanium Tube Sheet For Heat Exchanger

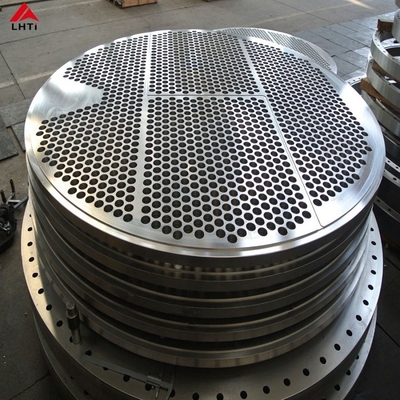

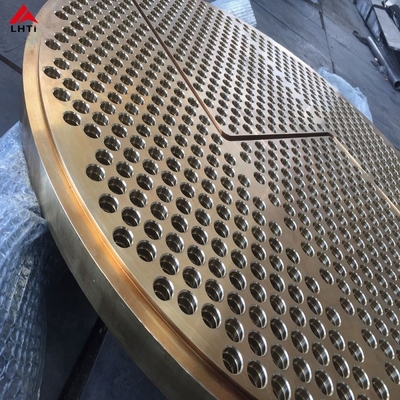

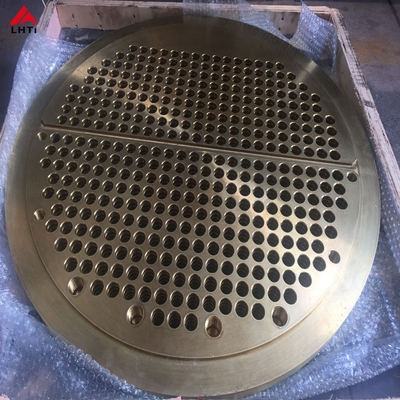

 Customized titanium tube plate Tube Sheet Φ1057×125 for Heat Exchanger



 Titanium tubesheet is mainly used in chemical vessels, such as tubular heat exchanger, pressure vessel, steam boiler, condenser, central air conditioner, evaporator and seawater desalination. It plays the role of maintaining the same tubular. The material of metal makes it not only have strong rigidity, but also have great heat conduction function



 It is a kind of accessory that can drill holes on the titanium plate with the same outer diameter as the pipe, penetrate the pipe and weld it unchanged.



The accuracy of tubesheet processing is that the distance between tube holes and pipe diameter, perpendicularity and brightness all affect the assembly and application functions of the chemical equipment listed above. With the large-scale of chemical equipment and power stations, the diameter of tubesheet is becoming larger and larger. Tubesheet with diameter of 4m-5m is very common. Large tubesheet is characterized by large number of tube holes, dense, small aperture, deep, high precision and brightness requirements.



Porduct name Titanium Tube sheet Φ1057×125
Material

Gr1/Gr2 Titanium +stee

Gr1/Gr2 lTitanium+stainless steel  etc.

Size &Standard As per client drawing
Production Method Forging,annealing and machining
Advantage Excellent corrosion resistance ability
Packing Plywood case
Application Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc.



Chemical composition (Wt%)

ASTM No.

Fe max

O max

N max

C max

H max

Pd

Al

Bal

Grade 1

0.2

0.18

0.03

0.1

0.015

-

-

Ti

Grade 2

0.3

0.25

0.03

0.1

0.015

-

-

Ti



Physical Properties (Min)

ASTM Grade

Alloy  Composition

Tensile Strength

Yield Strength

Elongation min %

ksi

Mpa

ksi

Mpa



Grade 1

Unalloyed Ti ("Pure") 35A -CP1

35

240

25

170

30

Grade 2

Unalloyed Ti ("Pure") 50A -CP2

58

400

40

275

25



Detailed images:

titanium tube plate

 titanium tube plate 3

 Titanium tube sheet (1)



Titanium tubesheet used in heat exchanger:

202110191454096760814titanium clad tubesheet
