Gr2 Titanium Hex Nut and Washer DIN934 DIN125

Name: Gr2 Titanium Hex Nut and Washer DIN934 DIN125
Brand: Baoji Lihua Nonferrous Metals Co., Ltd.
SKU: Hex nut
Price: 8.08 USD
Availability: InStock

Brand Name:	LHTi
Model Number:	Hex nut
MOQ:	100 PCS
Payment Terms:	T/T,Western Union,L/C,D/A,D/P
Supply Ability:	100K piece per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji , Shaanxi , China

Certification:

ISO9001:2015; SGS; TUV; BV

Standard:

DIN934,DIN125

Material:

Titanium Gr2

Size:

M5/M6/M8/M10/M12/M14

MOQ:

100 PCS

Technique:

Forged

Application:

Chemical Industry, Machinery,aerospace, Electroplating Etc

Surface:

Polished

Packaging Details:

Small quantity: pp bags inside,carton box outside packing. More than 10kgs: pp bags inside, Plywood case outside packing

Supply Ability:

100K piece per month

Highlight:

M14 Titanium Hex Nuts

Gr2 Titanium Hex Nuts

DIN125 Titanium Hex Nuts

Product Description

Gr2 Titanium Hex Nut and Washer DIN934 DIN125

LHTi produces these pure titanium hex nuts to DIN934 and flat washers to DIN125 in Grade 2, with sizes from M5 to M14. Pure titanium has extremely high corrosion resistance in most media, particularly in neutral, oxidizing and seawater conditions, where it outperforms aluminium alloys, stainless steels and nickel based alloys. It stays stable in various concentrations of nitric acid and chromic acid and resists alkaline solutions and most organic acids, so the fasteners keep their surface for years in industrial, agricultural and marine environments. The nuts and washers are forged or CNC machined and polished, giving light weight components with a long service life.

Technical Specifications

Item	Titanium hex nuts and flat washers
Material	Pure titanium
Grade	Gr2
Standard	DIN934, DIN125
Size	M5, M6, M8, M10, M12, M14
Technique	Forged, CNC machined
Surface Treatment	Polished
Color	Ti natural

Chemical Composition (Gr2, wt%)

Grade	Fe (max)	O (max)	N (max)	C (max)	H (max)	Ti
Gr2	0.3	0.25	0.03	0.1	0.015	Balance

Physical Properties (min)

Grade	Alloy Composition	Tensile ksi	Tensile MPa	Yield ksi	Yield MPa	Elongation %
Gr2	Unalloyed Ti (Pure), 50A-CP2	58	400	40	275	25

Features and Applications

The fasteners are not easy to rust and resist acid and alkali corrosion, and their low density keeps the assembled joint light. Typical applications include chemical industry equipment, machinery, aerospace, electroplating lines and marine hardware, where a durable, corrosion resistant nut and washer are needed.

Production and Packing

The titanium bolts and screws are produced by forging and CNC machining, then polished. Small quantities are packed in PP bags inside a carton, while orders above 10kgs are packed in PP bags inside a plywood case to keep the goods protected during transport.

Detailed Images

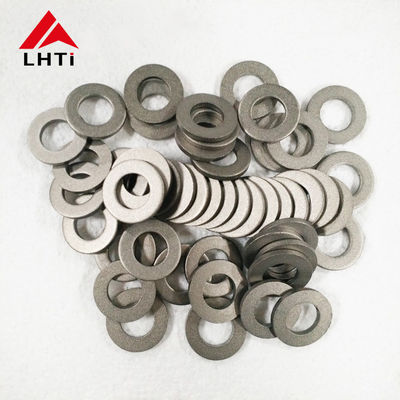

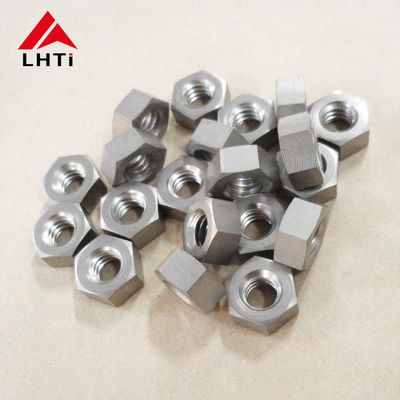

Gr2 titanium hex nut and flat washer DIN934 DIN125
