Gr5 Ti6Al4V Titanium Sheet UNS N56400 Annealed

Brand Name:	LHTi
Model Number:	Ti-04
MOQ:	100 kgs
Price:	USD26.5-38.500 per kg
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	1000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Baoji, Shaaxi, China

Certification:

ISO9001:2015; TUV; SGS ;BV

Porudct Name:

Titanium Sheet/ Titanium Plate

Standard:

ASME/ASTM B265 , AMS 4911

Material Grade:

Ti6Al4V (Grade 5 Titanium)

Technology:

Cold Rolled, Hot Rolled

Situation:

Annealed

Shape:

Straight

Surface:

Pickled , Polished

Application:

Chemical Industry, Aerospace Etc.

Packaging Details:

Standard export packaging: soft foam protection inside, plywood outside

Supply Ability:

1000 tons per month

Highlight:

titanium alloy sheet

forming titanium sheet

Product Description

Gr5 Ti6Al4V Titanium Sheet UNS N56400 Annealed

Baoji Lihua offers an enormous variety of Grade 5 titanium sheets, plates and coils, in many dimensions and sizes, to meet varied customer requirements. These Gr5 Ti-6Al-4V (UNS N56400) plates are widely used in medical, aerospace, chemical processing and marine fields. In its annealed state the alloy is a ductile metal, and its resistance to fatigue and crack propagation is excellent. The material contains a mixture of titanium and other chemical elements; it is about 60% heavier than aluminium but twice as strong, with a density of 4.51 g/cc, less than 60% that of steel. It has excellent tensile properties at ambient temperature and worthwhile creep resistance up to 570 Deg F.

Technical Specifications

Product Name	Titanium sheet / titanium plate / titanium coil
Material Grade	Ti6Al4V (Grade 5 titanium), UNS N56400
Standard	ASME / ASTM B265, ASME SB265, AMS 4911
Technology	Cold rolled, hot rolled
Condition	Annealed
Shape	Straight
Surface	Pickled, polished
Application	Medical, aerospace, chemical processing, marine

Size Range

Rolling Type	Thickness	Max Width	Max Length
Cold rolled	0.02 mm to 5 mm	1500 mm	2500 mm
Hot rolled	5 mm to 100 mm	3000 mm	6000 mm

Properties

Property	Value
Density	4.51 g/cc (less than 60% of steel)
Strength vs aluminium	About 60% heavier but twice as strong
Tensile strength	Up to 180 kg/mm2 for titanium products
Creep resistance	Up to 570 Deg F
Fatigue and crack resistance	Excellent

Product Pictures

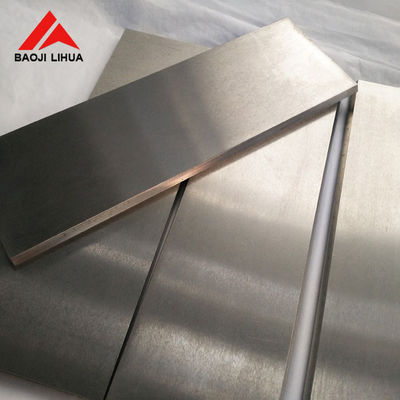

Gr5 Ti6Al4V titanium sheet UNS N56400 annealed

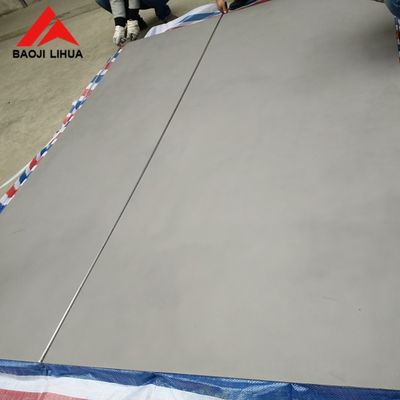

Titanium Gr5 plate pickled polished surface

Applications

Medical devices, aerospace structures, chemical processing equipment and marine hardware, together with sporting goods where the coil is used as cast. Suppliers should note that fabrication operations such as annealing and descaling can increase the impurity level unless particular care is taken, so the material is supplied annealed and ready for machining. Plates and coils can be cut to the required size on request.
