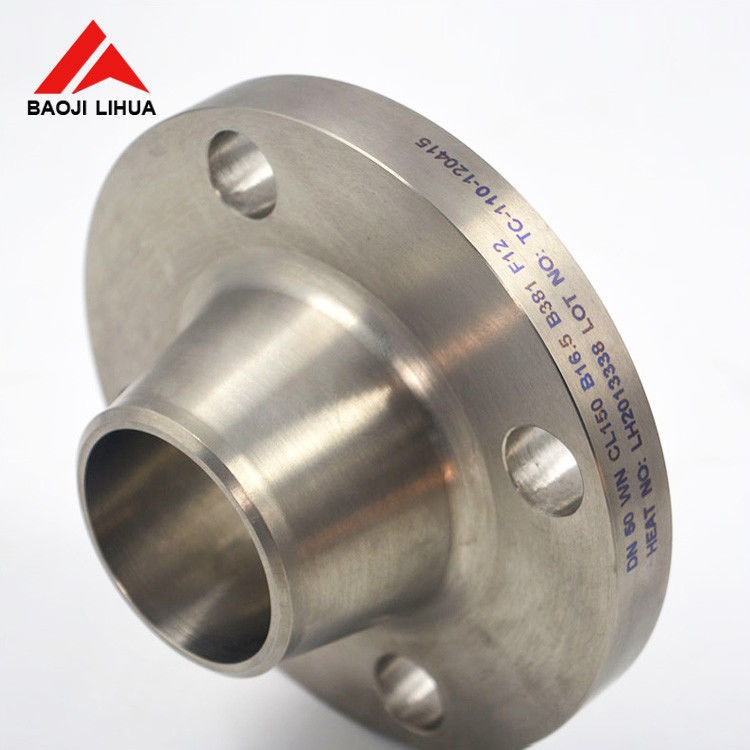

Cp1 R50250 Titanium Weld Neck Pipe Flanges Gr2 Gr7 Gr9 DN 50 WNRF ANSI B16.5

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: Titanium weld neck flange

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: USD12.00-58.00 per piece

Packaging Details: Plywood box with soft foam for additional protection

Delivery Time: 10-25 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal

Supply Ability: 200000 kg per month

Get Best Price
Highlight:

titanium gr 2 flanges

,

wn rf flange

Standard:
ASME/ANSI B16.5
Pressure Rating(ANSI):
CL150,CL300,CL600,CL900,CL1500
Working Temp:
-60℃~250℃
Processing Method:
Forging,then Machining
Application:
Chemical; Industry
Pressure Rating(DIN):
PN16
Standard:
ASME/ANSI B16.5
Pressure Rating(ANSI):
CL150,CL300,CL600,CL900,CL1500
Working Temp:
-60℃~250℃
Processing Method:
Forging,then Machining
Application:
Chemical; Industry
Pressure Rating(DIN):
PN16
Cp1 R50250 Titanium Weld Neck Pipe Flanges Gr2 Gr7 Gr9 DN 50 WNRF ANSI B16.5

Cp1 R50250 gr2 gr7 gr9 titanium weld neck flange DN 50 WNRF ANSI B16.5



1. Production Information



Products Titanium Flange
Material Grade Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9
Certification ISO9001:2015;SGS;BV;TUV;
Standard ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
size 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure Clase PN0.25~32Mpa
  (DIN) PN6,PN10,PN16,PN25 though PN250
  150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB
Technique Forged and CNC Machined
type WNRF , SORF , BLIND ,SW, PL
Flange surface FF,RF,TG,RJ etc
Application used in cars, glasses,medical equipment , electronics , petrochemical equ ipment
Advantage 1. Long service life
  2. corrosion -resistant
  3.hign yeiled strenth and tensile strength.





Standard Specification: ASTM B381/ASME SB381



Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.



Size: 1/2’’ to 18’’



Class/Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, etc/



Flange Face Type: Flat Face(FF), Raised Face(RF), Ring Type Joint(RTJ)



Grade: Titanium Gr1, Titanium Gr2, Titanium Gr4, Titanium Gr5, Titanium Gr7





Products Size
Titanium Weld Neck Flanges Titanium Reducing Flanges



1/8’’ - 36’’

Raised Face or Flat Face

Titanium Blind Flanges Titanium Plate Flanges
Titanium Slip-On Flanges Titanium Forged Flanges
Titanium Lap Joint Flanges Titanium Socket Weld Flanges
Titanium Threaded Flanges







2. Available Dimensions



OD ( mm) I D ( mm) HEIGHT ( mm)
200-400 100-300 35-120
400-700 150-500 40-160
700-900 300-700 50-480
900-1300 400-900 70-250







3. Titanium Flange Type



a.Slip On Flange        b.Welding Neck Flange        c.Threaded Flange(Screwed Flange)         d.Plain Flange



e.Blind Flange            f.Lap Joint Flange                   g.Wocket Welding Flange                               h. welded flange



i. titanium large-diameter flange





Mechanical Properties of ASTM B381 Titanium Plate Flanges



Element Density Melting Point Tensile Strength Yield Strength Elongation
Titanium Gr2 4.5g/cm3 1665℃(3030°F) Psi- 49900, MPa- 344 Psi-39900, MPa-275 20%
Titanium Gr5 4.43g/cm3 1632℃(2970°F) Psi- 138000, MPa- 950 Psi-128000, MPa-880 14%







4. Titanium Flange Production Process





Raw Material ⇒ Inspection Material ⇒ Cutting ⇒ Heating ⇒ Forging ⇒ Heat Treatment ⇒ Machining ⇒ Drilling ⇒ Marking ⇒ Washing/Cleaning ⇒ Final Inspection ⇒ Packing ⇒ Delivery
