Titanium Rf Slip On Flange DN250 CL150 ASME B16.5 125 250 Class Gr2 Gr9 Gr12

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015; TUV; SGS;BV

Model Number: Titanium slip on flange

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: USD12.00-56.00 per piece

Packaging Details: Plywood box with soft foam for additional protection

Delivery Time: 12-20 work days

Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal

Supply Ability: 200000 kg per month

Get Best Price
Highlight:

slip on raised face flange

,

slip on type flange

Material:
Gr1,Gr2,Gr5,Gr7,Gr9,Gr12
Standard:
ANSI, ASME B16.5, ASME/ANSI B16.5
Pressure Rating:
0.6~32Mpa
DIN:
PN6,PN10,PN16,PN25 Though PN250
Material:
Gr1,Gr2,Gr5,Gr7,Gr9,Gr12
Standard:
ANSI, ASME B16.5, ASME/ANSI B16.5
Pressure Rating:
0.6~32Mpa
DIN:
PN6,PN10,PN16,PN25 Though PN250
Titanium Rf Slip On Flange DN250 CL150 ASME B16.5 125 250 Class Gr2 Gr9 Gr12

gr2 gr9 gr12 titanium slip on flange DN250 CL150 RF ASME B16.5 125 250 class





1. Product Information



Product name gr2 gr12 titanium slip on flange DN250 CL150 RF ASME B16.5 125 250
Material grade Gr1,Gr2,Gr5,Gr7,Gr12
Certificate ISO9001:2015; SGS; BV; TUV
Standard ANSI B16.5/ASTM B16.5
Size NPS 1/2"~ 24"
Pressure Class150-class 2500
Technique Forged and CNC Machined
Type WNRF , SORF , BLIND ,SW, PL
Flange surface FF,RF,TG,RJ etc
Application Boiler pressure vessels, chemical, petroleum, shipbuilding, pharmaceutical, metallurgy, machinery
Advantage 1. Long service life
2. Corrosion -resistant
3. Hign yeiled strenth and tensile strength.







2. Tensile Strength



grade Tensile strength(min) Yeild strength(min) Elongation(%)
component ksi MPa ksi MPa
Gr1 Ta1 35 240 20 138 24
Gr2 Ta2 50 345 40 275 20
Gr5 Ti6Al4V 130 895 120 828 10
Gr7 Ti-0.2Pd 50 345 40 275 20
Gr9 Ti-3Al-2.5V 90 620 70 483 15
Gr12 Ti-0.3Mo-0.8Ni 70 483 50 345 18







3. Quality Assurance





A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.



B. Visual inspection to check surface quality, ensuring without flaw, black dot and other defects.



C. Chemical Composition making sure all chemical components can satisfy customer’s demands.



D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.







4. Detailed Images

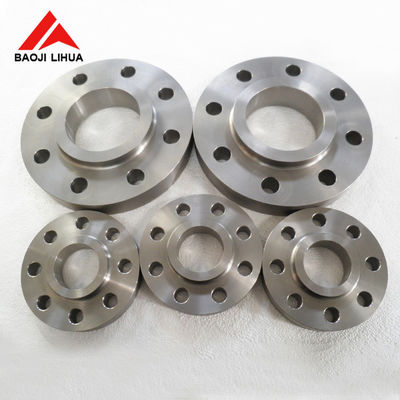

Titanium Rf Slip On Flange DN250 CL150 ASME B16.5 125 250 Class Gr2 Gr9 Gr12 0



Titanium Rf Slip On Flange DN250 CL150 ASME B16.5 125 250 Class Gr2 Gr9 Gr12 1



Titanium Rf Slip On Flange DN250 CL150 ASME B16.5 125 250 Class Gr2 Gr9 Gr12 2







5. FAQ



FAQ
Q1.--How can you ensure the product quality?

--All products are manufactured according to ASTM standard (Bolts are according to ASME
standard and DIN standard),and we make 100% inspection before shipment,also we can provide the

MTC Material Test Certification.

Q2.--Can you print our LOGO on the products?
--Sure, and we welcome the customerized products.
Q3.--Can we get the free sample?
--Sure.
Q4.--What about the payment terms?
--T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.
Q5.--Do you have your website?
--Yes, Please click here. http://www.metalstitanium.com(Independent website)
Q6.--What is the necessary information for a inquiry?

--Product name, specification, material grade and quantity. If customized products, your drawing and

special requests also needed.







6. Titanium AISI, ASME, DIN, BS, EN Flanges Application



ASTM B381 Titanium Flanges are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of ASTM B381 titanium alloy pipe flanges. These flanges are used in various industries like:



1. Titanium Flanges uses in Oil and Gas Pipeline 2. ASTM B381 Titanium Pipe Flange uses in Chemical Industry

2. Titanium Gr2 Flanges uses in Plumbing

3. Titanium Gr5 Flange uses in heating

4. ASTM B381 titanium plate flanges use in Water Supply Systems

5. ASTM B381 titanium forged flange uses in Powder Plant

6. Titanium Flanges use in Paper &Pulp industry

7. Titanium Flanges use in General Purpose applications
