Gr5 Ti6Al4V CNC Machined Titanium Disc ASTM B381

Brand Name:	LH
Model Number:	LHTB
MOQ:	10pcs
Price:	USD18-35/PC
Payment Terms:	T/T,Western Union,,L/C
Supply Ability:	5000 Kilogram/Kilograms per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015

Technique:

Forging

Product Name:

Titanium Disc

Material:

Gr5

Application:

Industry

Standard:

ASTM B381

Surface:

Polished,Machine Finished

Type:

Round Disc (target)

Density:

4.51g/cm3

Name:

Titanium Disk

Advantage:

Factroy Price,longer Working Time

Packaging Details:

Standard export packing

Supply Ability:

5000 Kilogram/Kilograms per Month

Highlight:

titanium disk

titanium block

Product Description

Gr5 Ti6Al4V CNC Machined Titanium Disc ASTM B381

This titanium disc is forged from Gr5 (Ti-6Al-4V) and then CNC machined, so the outside diameter and the faces are true before the part is used. Titanium is strong, light and corrosion resistant, and at almost half the weight of steel it gives a high strength to weight ratio with a clean machined finish. The disc is supplied to ASTM B381 with an outside diameter of 98 mm or to the customer request, and with heights of 10 mm, 12 mm, 16 mm, 18 mm, 20 mm and 25 mm. Gr5 is the most widely used titanium alloy and combines good toughness, high strength and resistance to many acids and alkalis, so the disc suits coating, electroplating and general industrial parts.

Technical Specifications

Product	Titanium disc
Material	Gr5 (Ti-6Al-4V)
Standard	ASTM B381; medical grade to ASTM F136 on request
Technique	Forging and CNC machining
Shape	Round disc
Surface	Polished, machine finished
Outside diameter	98 mm, or as requested
Height	10, 12, 16, 18, 20, 25 mm
Quality control	Ultrasonic testing
Density	4.51 g/cm3

Available Sizes

Item	Range
Outside diameter	98 mm, or to customer drawing
Height	10 mm to 25 mm
Material grade	Gr5, Gr5 ELI; Gr2 ELI and Gr4 ELI on request
Surface	Polished, machine finished
Shape	Round disc

Material Properties

Property	Value
Toughness	High
Weight	Light, about half that of steel
Acid and alkali resistance	High
Temperature	Withstands high and low temperature
Density	4.51 g/cm3

Product Pictures

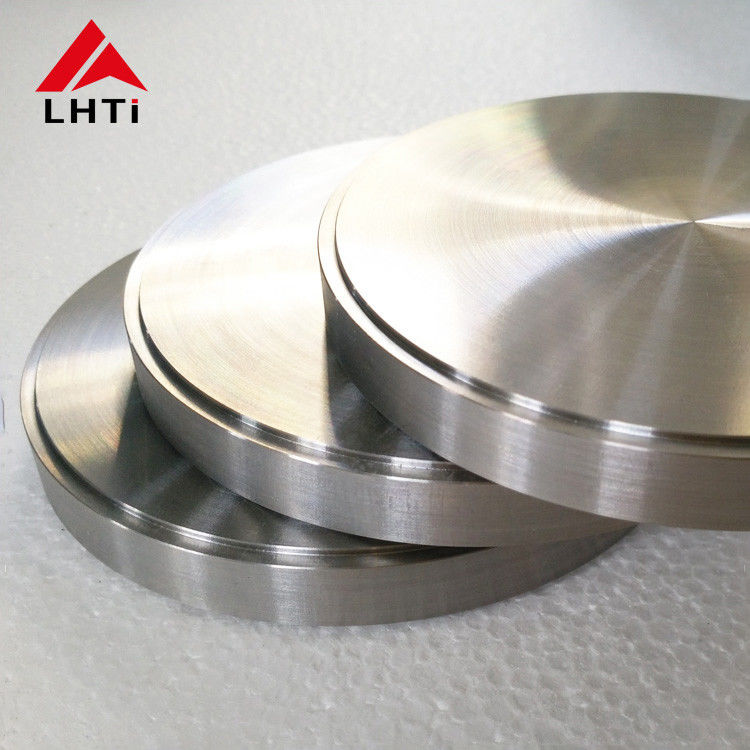

Gr5 Ti6Al4V forged titanium disc

Titanium disc CNC machined surface

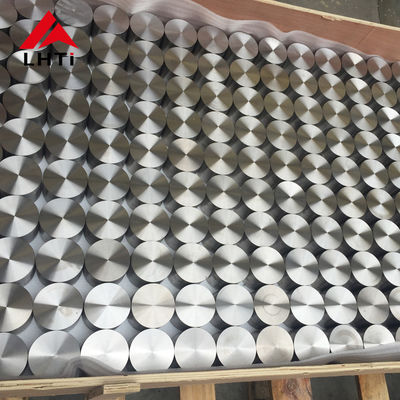

ASTM B381 titanium disc round shape

Titanium disc polished machine finished

Titanium disc electroplating material

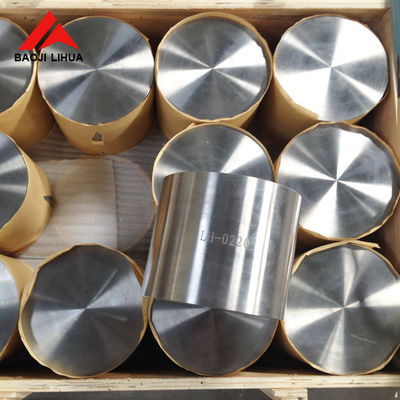

Round titanium disc industrial grade

Gr5 titanium disc ultrasonic tested

Applications

The disc is a machined blank and coating material for many industrial parts. Typical uses include electroplating and coating targets, chemical and processing equipment, and general engineering components that need a light, strong and corrosion resistant material. Because the disc is forged and then CNC machined, it saves the machining time needed to turn a raw bar down to size. The outside diameter, height and surface finish can be produced to the customer drawing, and each batch is checked by ultrasonic testing before delivery.
