Forged Titanium Weld Neck Flange Class 1500

Brand Name:	LHTI
Model Number:	LHTI-7
MOQ:	5piece
Price:	USD20-55 per piece
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	2000pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Technics:

Forged And CNC Machined

Pressure:

Class150-1500

Certificate:

ISO9001:2015

Color:

Metal Nature

Standard::

ANSI, DIN, JIS

Packaging Details:

Plywood\wooden Pallets

Supply Ability:

2000pieces per month

Highlight:

weld neck pipe flanges

titanium gr 2 flanges

Product Description

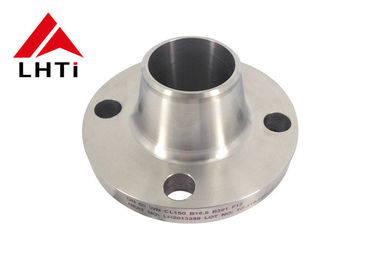

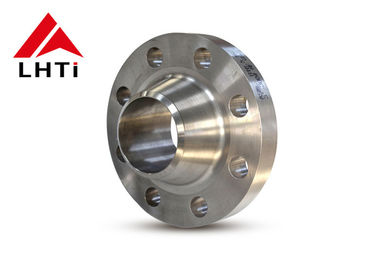

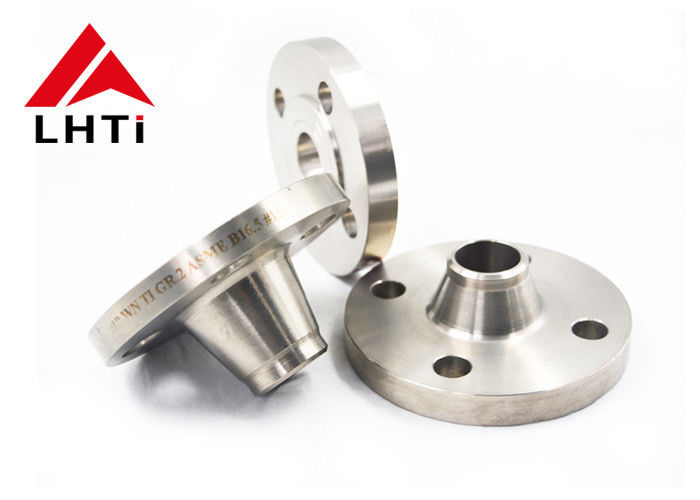

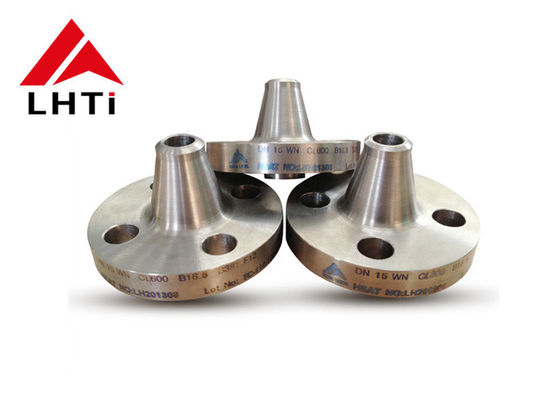

Forged Titanium Weld Neck Flange Class 1500

A flange is a detachable connection in which the flange, gasket and bolts form a combined sealing structure. Flange connections are widely used in pipeline construction because they are easy to assemble and can withstand high pressure. This forged weld neck flange is produced by forging and CNC machining in Gr2, Gr5, Gr11 and Gr12 titanium to ANSI, ASME, DIN and JIS standards.

Forged Titanium Weld Neck Flange

Technical Specifications

Standard	ASME / ANSI B16.5, B16.47; DIN; EN1092-1; JIS
Material / Grade	Gr2, Gr5, Gr11, Gr12
Pressure Class	Class 150 - 1500 (PN6 - PN250)
Size	DN15 - DN600 (1/2" - 36")
Technique	Forged and CNC machined
Type	WNRF, SORF, BLIND, SW, PL, TH
Sealing Face	FF, RF, TG, RJ
Colour	Metal nature

Flange Types & Standards

Type	Description
Welding neck (WN)	Long tapered hub welded to the pipe, preferred for high pressure and severe service
Slip-on (SO)	Slides over the pipe and is fillet welded, a low cost general purpose type
Blind (BL)	Closes a pipe end or valve opening
Socket welding (SW)	Used on small diameter high pressure lines
Threaded (TH)	Used where welding is not practical
Plate flat (PL)	Simple flat flange for low pressure service

Sealing Faces & Pressure

Sealing Face	Code	Typical Use
Raised face	RF	General high pressure pipeline service
Male and female	MF	Gasket located in the female groove
Tenon groove surface	TG	Large diameter connections
Metal ring joint	RJ	Very high pressure and temperature lines

Applications & Flange Advantages

These flanges are used in petrochemical, medical and healthcare, power, aerospace, metallurgy, marine, gas and environmental protection systems that require high pressure connections. Titanium offers a long service life, corrosion resistance and high yield and tensile strength, which keeps the joint reliable in aggressive media.

Quality, Customization & Inquiry

Manufacturing is carried out under an ISO 9001:2015 quality system with inspection before shipment. Sizes, grades, pressure ratings and sealing faces can be made to your drawing. Please send your specification and quantity for a quotation.
