DIN 933 M14 Gr2 Hex Head Titanium Bolts Nuts CNC Machined

Brand Name:	LHTi
Model Number:	LHTi-05
MOQ:	100pcs
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	100000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2015

Product Name:

M5 M6 M8 M10 M1 M14 Grade 2 Titanium Bolts Hex Head Bolt Hexagon Screw DIN 933

Material:

Gr2 Titanium

Head Style:

Hex , Hexagon

Standard:

DIN 933

Surface:

Bright

Technique:

CNC Machined, Forged

MOQ:

100PCS

Applications:

Chemical Industry

Packaging Details:

PP bags inside, standard exporting plywood case outside

Supply Ability:

100000pcs/month

Highlight:

Gr2 Hex Head Titanium Bolts Nuts

DIN 933 Titanium Bolts Nuts

CNC Machined Titanium Bolts Nuts

Product Description

M5 M6 M8 M10 M1 M14 Grade 2 titanium bolts hex head bolt hexagon screw DIN 933

Titanium bolts are widely used in various industries such as automobiles,chemical industry. Different from welding and riveting, the biggest feature of bolts is that they can be easily removed even after tightening and can be reused by re-tightening

Place of origin: Baoji Lihua, China

Material: Gr2 Titanium

Standard: DIN933

Size: M3-M52

Treatment: Polished, Anodized different color

Technique:CNC machined, Forged

Color: Natural,black,blue,golden,red,rianbow etc.

Surface: Machined, Anodizing, Black oxide

Test: Hardness test, torque test, mechanical size test, and so on

Application: Chemical industry

Payment: L/C,D/A,D/P,T/T, Western Union,Other

Other services: customized stype and size

Chemical composition (Wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Al	V	Bal
Grade2	0.3	0.25	0.03	0.1	0.015	-	-	Ti

Physical Properties (Min)

ASTM Grade	Alloy Composition	Tensile Strength		Yield Strength		Elongation min %
ASTM Grade	Alloy Composition	ksi	Mpa	ksi	Mpa
Grade 2	Unalloyed Ti ("Pure") 35A -CP1	58	400	40	275	20

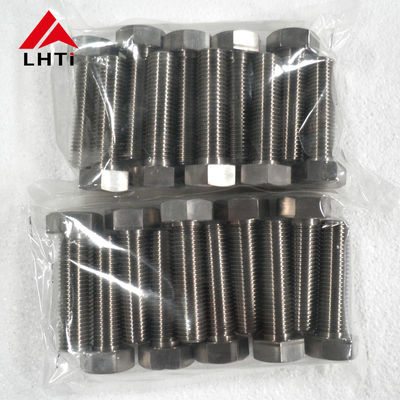

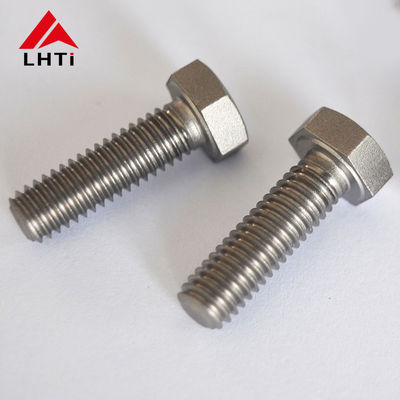

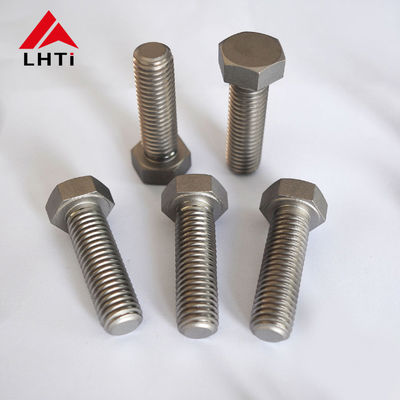

Detailed images:

DIN 933 M14 Gr2 Hex Head Titanium Bolts Nuts CNC Machined 0

The production process:

DIN 933 M14 Gr2 Hex Head Titanium Bolts Nuts CNC Machined 4

About our company:

Baoji Lihua Non-ferrous Metal Co., Ltd. with over 15 years production and export experience of titanium fasteners,the factory covers an area of 1800 square meters, with strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annual production value is more than 30 million CNY.

The titanium fasteners we manufactured have good surface, accurate size, good performance, mainly used for automobiles and chemical industry.Now the company have been built long-term cooperations of titanium fasteners with customers from UK,Germany,USA,Japan, Singapore etc.

DIN 933 M14 Gr2 Hex Head Titanium Bolts Nuts CNC Machined 5
