Product Details
Place of Origin: Baoji, China
Brand Name: LIHUA
Certification: ISO9001, TUV etc.
Model Number: LH-TH
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Price: US dollar $15/kg--US dollar $35/kg
Packaging Details: Plywood box for export
Delivery Time: 5-25 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 kgs per month
Product Name: |
Titanium Forged Ring |
Material: |
Gr5 |
Application: |
Chemical Industry |
Outer Diameter: |
200-1300mm |
Inner Diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality Control: |
Ultrasonic Testing |
Product Name: |
Titanium Forged Ring |
Material: |
Gr5 |
Application: |
Chemical Industry |
Outer Diameter: |
200-1300mm |
Inner Diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality Control: |
Ultrasonic Testing |

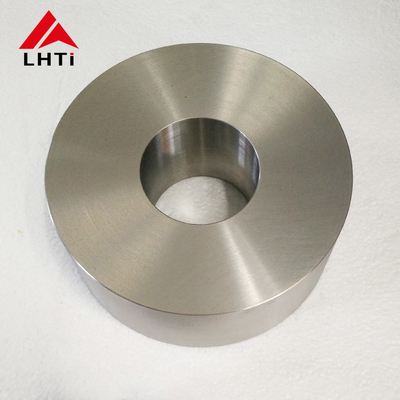

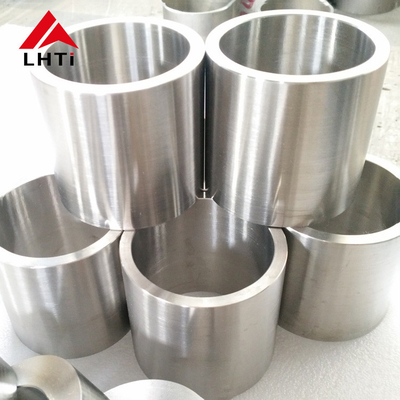

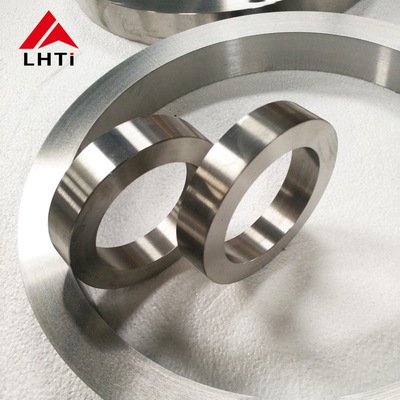

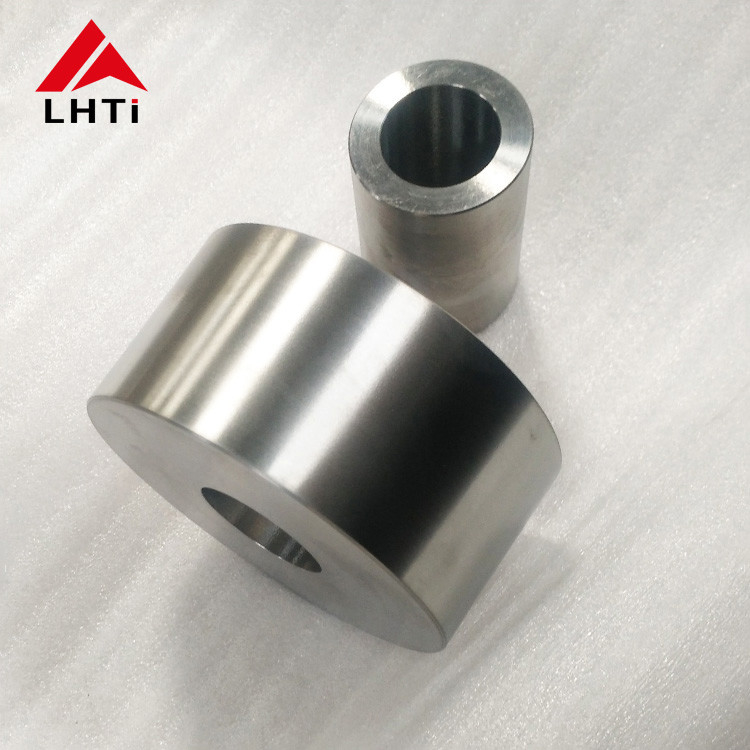

ASTM B381 Titanium Forgings GR5 titanium ring
· Standard: ASTM b381
· Material: GR1 Gr2 GR5 GR7 GR12 GR9 GR23
· Delivery status: annealed state (m) hot working state (R) cold working state (y) (annealed, ultrasonic flaw detection)
· Packing: in cartons or wooden cases
· Surface treatment: polishing, chamfering
Rolled ring forging is a process that starts with a circular metal preform that has been pierced to form a doughnut shape. The ring is heated and rotated to reduce its wall thickness and increase its diameter.
Including titanium seamless rolled rings, forged rings, and casted rings
The process for seamless rolled forged rings involves cutting a hole out of the forging material and rolling it into a thin ring. The rolled forged rings offer concentrically improved rings with smooth surfaces as compared to plate burn-outs, or butt welded rings.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
