Product Details
Place of Origin: Baoji, China
Brand Name: LIHUA
Certification: ISO9001, TUV etc.
Model Number: LH-TH
Payment & Shipping Terms
Minimum Order Quantity: 1 pieces
Price: US dollar $15/kg--US dollar $35/kg
Packaging Details: Plywood box for export
Delivery Time: 5-25 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 kgs per month
Product Name: |
Titanium Forged Ring |
Material: |
Gr5 |
Application: |
Chemical Industry |
Outer Diameter: |
200-1300mm |
Inner Diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality Control: |
Ultrasonic Testing |
Product Name: |
Titanium Forged Ring |
Material: |
Gr5 |
Application: |
Chemical Industry |
Outer Diameter: |
200-1300mm |
Inner Diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality Control: |
Ultrasonic Testing |

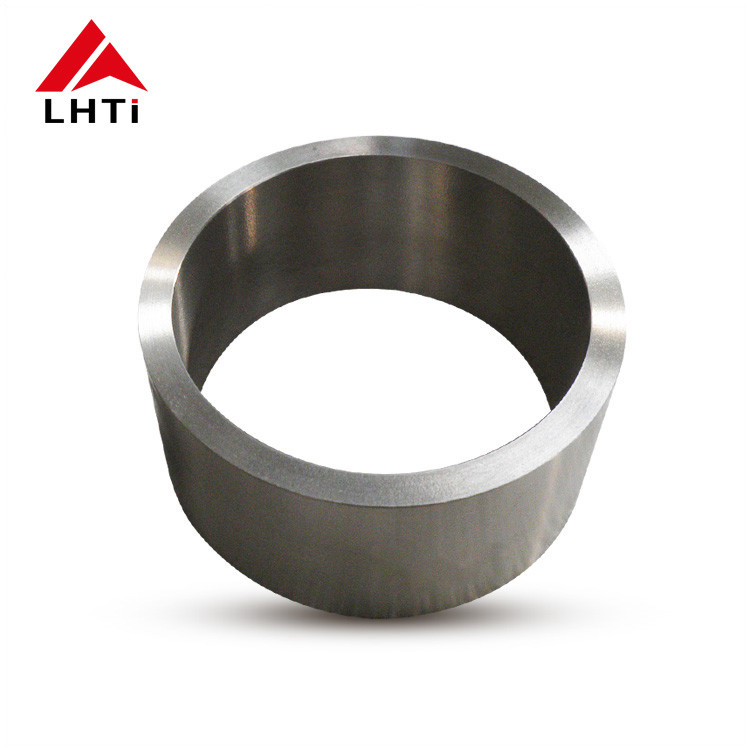

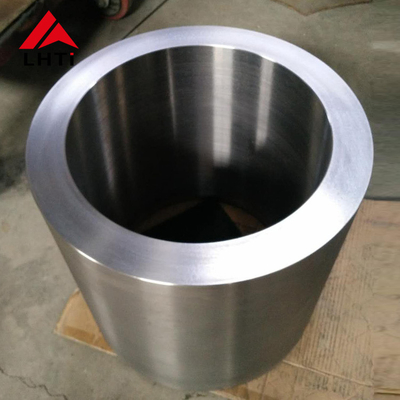

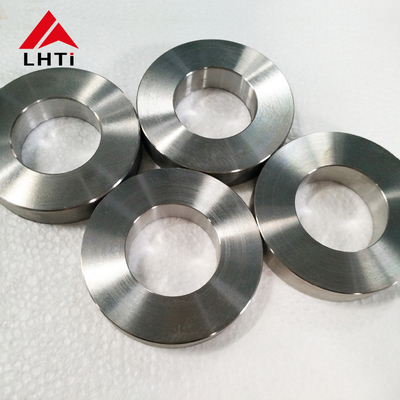

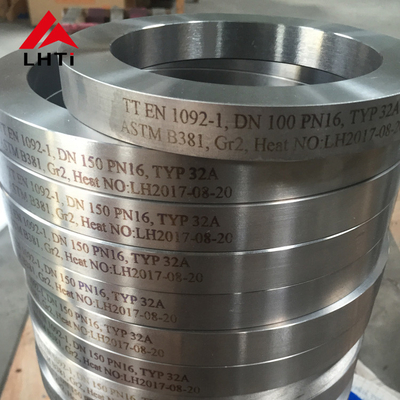

Titanium Forged Rings ASTM B381 Titanium Forgings
Standard: ASTM b381
Material: GR1 Gr2 GR5 GR7 GR12 GR9 GR23
Delivery status: annealed state (m) hot working state (R) cold working state (y) (annealed, ultrasonic flaw detection)
Packing: in cartons or wooden cases
Surface treatment: polishing, chamfering
Titanium Forged Rings are mainly used to make compressor parts of aircraft engines, followed by structural parts of rockets, missiles and high-speed aircraft. In the mid-1960s, titanium and its alloys have been used in general industry, such as electrodes for electrolysis industry, condensers for power stations, heaters for oil refining and seawater desalination, and environmental pollution control devices. Titanium Forged Rings have become a kind of corrosion-resistant structural materials. In addition, it is also used to produce hydrogen storage materials and shape memory alloys.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
