Product Details
Place of Origin: China
Brand Name: LHTI
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: LH-12
Payment & Shipping Terms
Minimum Order Quantity: 10 kg
Packaging Details: Coil and spool package in carton case or plywood case,straight wire package in Plastic case,outside is standard export plywood case
Delivery Time: In stock--3 days.production--15-20 working days
Payment Terms: L/C, D/P, T/T, Western Union,paypal etc
Supply Ability: 50000 kgs per month
Product Name: |
ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price |
Grade: |
Grade1 Grade2 ErTi1 ErTi2 |
Shape: |

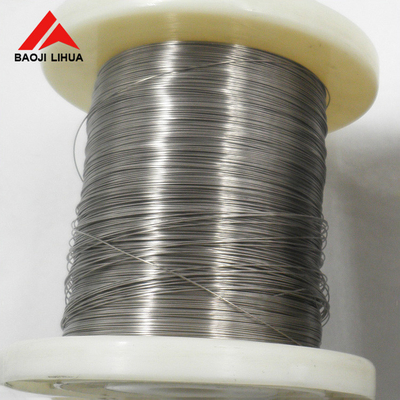

Coil,spool,straight |
Material: |
Pure Titanium |
Surface: |
Pickling Surface/polish Surface |
Package: |
Standard Export Package |
Hot Sale Diameter: |
0.8mm-5mm Etc |
Length: |
1000mm |
Key Words: |
Thin Titanium Wire |
Product Name: |
ERTi 1 ERTi 2 Gr.1 Gr.2 Straight / Coil Ti Pure Titanium Wire Price |
Grade: |
Grade1 Grade2 ErTi1 ErTi2 |
Shape: |
Coil,spool,straight |
Material: |
Pure Titanium |
Surface: |
Pickling Surface/polish Surface |
Package: |
Standard Export Package |
Hot Sale Diameter: |
0.8mm-5mm Etc |
Length: |
1000mm |
Key Words: |
Thin Titanium Wire |

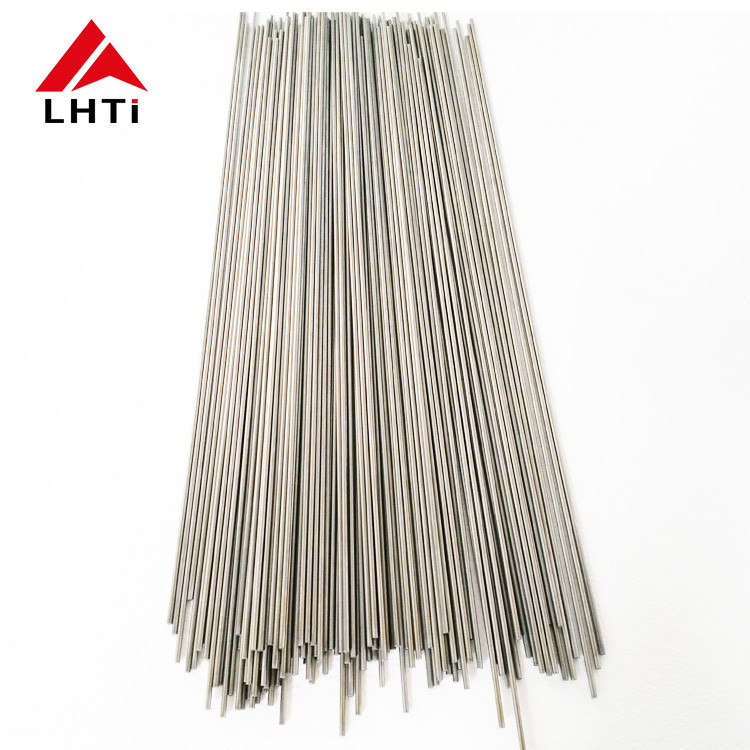

Pure Titanium Wire 2.4mm With Pickling Surface
Erti-4 Titanium Welding Wire is processed through high-precision machines, achieving high durability and accuracy. Titanium is a non-magnetic metal, which can effectively avoid interference and is widely used in railroad engineering, communication, aerospace, high-tech laboratories, hospitals, outdoor work, chemical industry, seawater confiding, etc. Titanium also has small thermal conductivity and high damping resistance.
Erti-4 Titanium Welding Wire in aerospace is mainly used in aircraft engine parts, aircraft structural parts of each component. It has a metallic luster and is malleable. Its main characteristics are low density, high mechanical strength and easy processing, meanwhile, it has good corrosion resistance and is not affected by the atmosphere and seawater.
| ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | |
| UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | |||
| Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 |
| Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 |
| Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 |
| Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 |
| Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 |
| AWS | CHEMICAL SPECIFICATIONS | ||||||||
| AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd |
| Number | |||||||||
| ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
| ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
| ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
| ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
| ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
