Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium wire
Payment & Shipping Terms
Minimum Order Quantity: 20 kg
Price: USD16.00-28.00 per kg
Packaging Details: Plastic bag with laber, outside plastic box, then plywod box
Delivery Time: 7-20 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 200000 kg per month
Material: |
Best Price And Hight Quality ErTi-2 Titanium Wire 1.2mm Titanium Filler Rod For Welding |
Grade: |
Gr1, Gr2 |
Diameter: |
0.5mm-3mm |
Straight Wire Length: |
1000mm-3000mm |
MOQ: |
20 Kg |
Package Box: |
5kg Per Plastic Box, Or As Your Request |
Certificate: |
ISO9001:2008 |
Processing Service: |
Bending, Cutting |
Package Coil: |
10~15kg ,or As Per Buyer Requirement |
Advantage: |
Corrosion Resistance, High Strength, Light Quality |
Material: |
Best Price And Hight Quality ErTi-2 Titanium Wire 1.2mm Titanium Filler Rod For Welding |
Grade: |
Gr1, Gr2 |
Diameter: |
0.5mm-3mm |
Straight Wire Length: |
1000mm-3000mm |
MOQ: |
20 Kg |
Package Box: |
5kg Per Plastic Box, Or As Your Request |
Certificate: |
ISO9001:2008 |
Processing Service: |
Bending, Cutting |
Package Coil: |
10~15kg ,or As Per Buyer Requirement |
Advantage: |
Corrosion Resistance, High Strength, Light Quality |

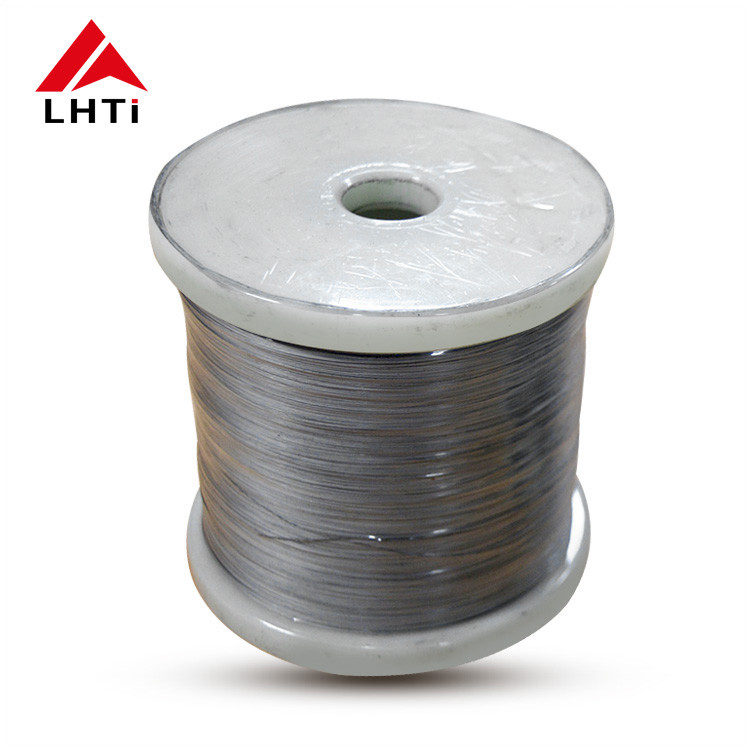

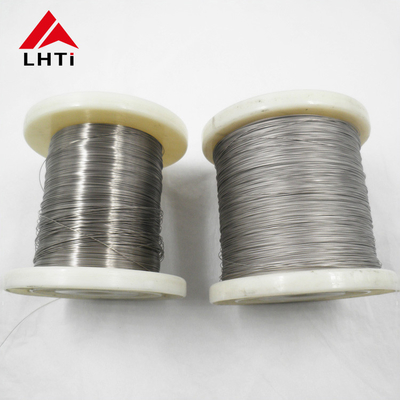

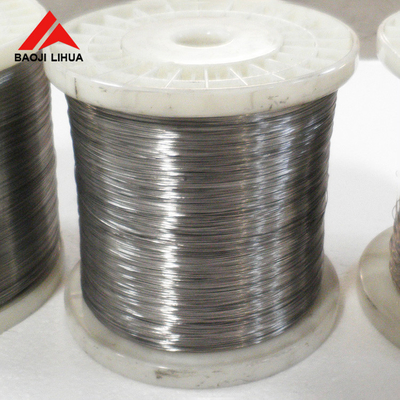

Titanium Wire Gr2 Welding Filler Rod 1.2mm
Titanium Wire and Rod perfectly inherits the advantages of titanium and titanium alloys, and has a series of excellent characteristics such as good corrosion resistance, high specific strength, non-magnetic, high biocompatibility, low resistance to ultrasonic waves and good shape memory function.
| Item | Titanium wire |
| Material | Pure Titanium and alloy |
| Grade | GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR12 |
| Standard | ASTM B863 |
| Size | Dia(0.8--5) *L |
| Process | Bar billets-hot rolling-drawing-annealing-strength-pickling |
| Surface | Polishing, picking, acid washed, black oxide |
| Type | Straight , spool ,coil |
| Application | Chemical equipment, such as pipes, heat exchangers, evaporators, heaters, reaction kettles et |
| ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | |
| UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | |||
| Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 |
| Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 |
| Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 |
| Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 |
| Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 |
| AWS | CHEMICAL SPECIFICATIONS | ||||||||
| AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd |
| Number | |||||||||
| ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
| ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
| ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
| ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
| ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
| ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | |
| UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | |||
| Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 |
| Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 |
| Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 |
| Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 |
| Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 |
| AWS | CHEMICAL SPECIFICATIONS | ||||||||
| AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd |
| Number | |||||||||
| ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
| ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
| ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
| ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
| ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
