Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium wire
Payment & Shipping Terms
Minimum Order Quantity: 20 kg
Price: USD16.00-28.00 per kg
Packaging Details: Plastic bag with laber, outside plastic box, then plywod box
Delivery Time: 7-20 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 200000 kg per month
Material: |
Factory Direct-Sales Gr1 Gr2 Pure Titanium Wire For Welding AWS A5.16 Titanium Spool Wire |
Grade: |
Gr1, Gr2 |
Diameter: |
0.5mm-3mm |
Straight Wire Length: |
1000mm-3000mm |
MOQ: |
20 Kg |
Package Box: |
5kg Per Plastic Box, Or As Your Request |
Certificate: |
ISO9001:2008 |
Processing Service: |
Bending, Cutting |
Package Coil: |
10~15kg ,or As Per Buyer Requirement |
Advantage: |
Corrosion Resistance, High Strength, Light Quality |
Material: |
Factory Direct-Sales Gr1 Gr2 Pure Titanium Wire For Welding AWS A5.16 Titanium Spool Wire |
Grade: |
Gr1, Gr2 |
Diameter: |
0.5mm-3mm |
Straight Wire Length: |
1000mm-3000mm |
MOQ: |
20 Kg |
Package Box: |
5kg Per Plastic Box, Or As Your Request |
Certificate: |
ISO9001:2008 |
Processing Service: |
Bending, Cutting |
Package Coil: |
10~15kg ,or As Per Buyer Requirement |
Advantage: |
Corrosion Resistance, High Strength, Light Quality |

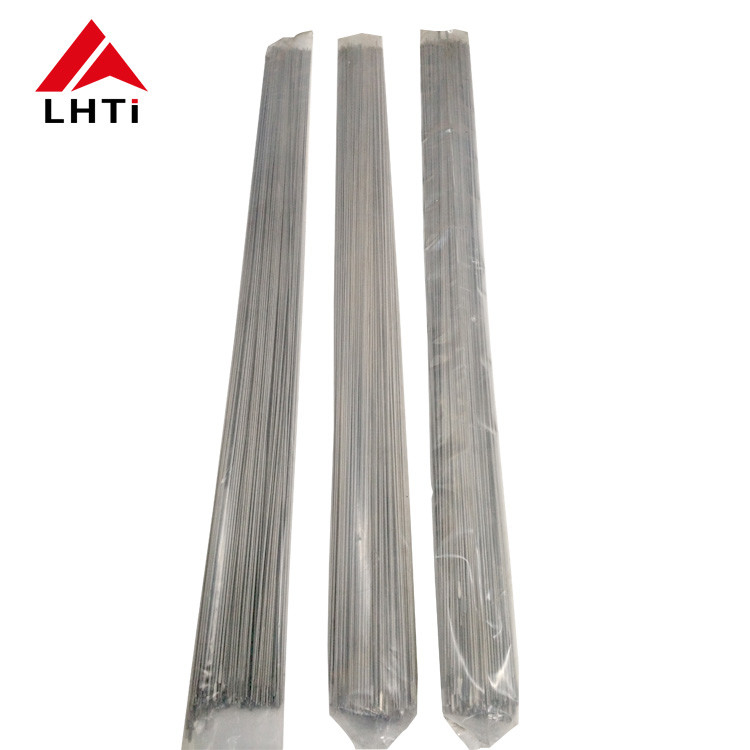

0.1mm 0.3mm Titanium Alloy Wire
| Standard | ASTM B348, ,ASTM SB348,ASTM B863,AWSA5.16, ASTM F67, ASTM F136 | |||
| Material |
GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR12 Titanium Alloy and pure titanium, Titanium Nickel Shape Memory Alloy Wires |
|||
| Color | Matal gray | |||
| Shape | Straight , spool ,coil | |||
| Size | 0.5-4.0 (mm) | |||
| Surface | pickling, polished, bright finish, etc. | |||
| Application | Structural parts wire: mainly used for structural parts and fasteners; Welding wire:mainly used for the electrode material and welding materials Medical wire | |||
| Package | Ply-wooden case, carton box,As customer's requirement | |||
2.Guide to choose of filler metal for general purpose titanium welding
| ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | |
| UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | |||
| Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 |
| Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 |
| Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 |
| Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 |
| Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 |
3.Chemical compostion requirements
| AWS | CHEMICAL SPECIFICATIONS | ||||||||
| AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd |
| Number | |||||||||
| ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
| ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
| ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
| ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
| ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
4. Definition of Different Levels
ERTI-1: Grade 1 is the lowest strength unalloyed (or Commercially Pure-CP)grade. Grade 1 is used in applications where ductility is paramount,such as explosive cladding, loose linings, expanded metal, and deep drawing applications. It is also used in electrolytic applications like coated anode substrates for production of chlorine and sodium chlorate.
ERTI-2: Grade 2 is the "workhorse"of the industrial corrosion market and most common unalloyed(or commercially Pure-CP)grade. Grade 2 is generally the most readily available in all product forms and has the lowest cost . It is used for process equirpment like pressure vessels ,columns ,tanks,heat exchangers,shafts,blowers and fans,conderser tubing ,valves,fittings and pipe.
ERTI-4: Grade 4 is the highest strenth unalloyed(or Commerically Pure-CP) grade.Grade 4 is rarely used I corrosion service ,but have beeen used(under AMS Specifications)in aircraft components where its higher strength can reduce the weight of components like bulk-heads and firewalls.

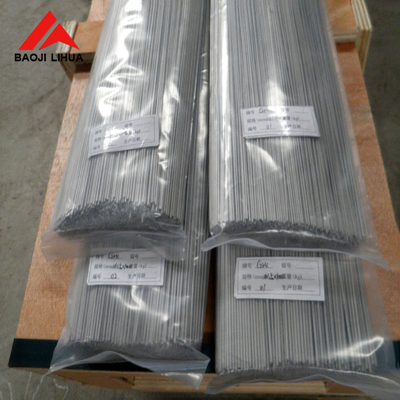

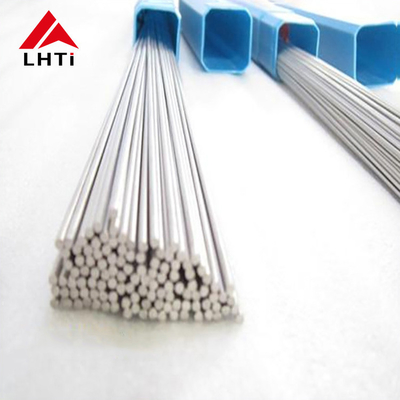

5. Detailed Images and Application
