Product Details
Place of Origin: Baoji City Shaanxi Province China
Brand Name: LHTi
Certification: ISO9001
Model Number: LHTI-041
Payment & Shipping Terms
Minimum Order Quantity: 100kg
Price: USD35-45 per kg
Packaging Details: 5kg put into plastic tube inside and plywood case outside Or as the clients' request
Delivery Time: 7-30work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5Ton per month
Standard: |
AWS 5.16 |
Surface: |
Pickling Surface/bright Surface |
Application: |
GTAW |
Type: |
Straight / Spool / Coil |
Certificate: |
ISO9001:2015 |
Technique: |
Cold Rolling |
Grade: |
Gr12 (Ti-0.3Mo-0.8Ni) |
Advantage: |
Hot Resistance |
Standard: |
AWS 5.16 |
Surface: |
Pickling Surface/bright Surface |
Application: |
GTAW |
Type: |
Straight / Spool / Coil |
Certificate: |
ISO9001:2015 |
Technique: |
Cold Rolling |
Grade: |
Gr12 (Ti-0.3Mo-0.8Ni) |
Advantage: |
Hot Resistance |
1.2mm 1.6mm 2.0mm 2.4mm ErTi1 ErTi2 ErTi5 ErTi7 titanium welding wire
ERTi-2 titanium welding wire Application Fields:
• Welding field
• Aerospace
• Electronic product welding
• Metal welding
• Titanium product welding
ERTi-2 titanium welding wire has a series of excellent properties unmatched by other metal materials, so it has developed rapidly in recent years and has been rapidly and widely used in high-tech fields such as the aerospace military. All countries in the world attach great importance to the research and development of titanium alloys, and constantly develop new titanium alloy materials to expand the application of titanium and titanium alloys.
2. ERTi-12 Titanium wire parameter information
Grade Contrast
| China | America | Russia | Japan | |
| TA1 |
Industrially Pure Titanium |
GR1 | BT1-00 | TP270 |
| TA2 | GR2 | BT1-0 | TP340 | |
| TA3 | GR3 | TP450 | ||
| TA4 | GR4 | TP550 | ||
| TA8 | Ti-0.05Pd | GR16 | ||
| TA9 | Ti-0.2Pd | GR7 | TP340Pb | |
| TA10 | Ti-0.3Mo-0.8Ni | GR12 | ||
| TA18 | Ti-3Al-2.5V | GR9 | 0T4-1B | TAP3250 |
| TB5 | Ti-15V-3Al-3Gr-3Sn | Ti-15333 | ||
| TC4 | Ti-6Al-4V | GR5 | BT6 |
TAP6400 |
| Common Titanium Wires Tolerance | |||
| Diameter | 0.1-0.3mm | 0.3-0.8mm | 0.8-2.0mm |
| Tolerance | +/- 0.025 | +/-0.04 | +/-0.05 |
| Length | 200-500mm | 500-1000mm | 1000-2000mm |
| Tolerance | +/-1.0 | +/-1.5 | +/-2. |
| Titanium Grade 12 (Ti-0.3Mo-0.8Ni ) welding wire | ||||
| Chemical compositions(weight%,<=) | ||||
| Mo | Ni | V | Fe | C |
| 0.3 | 0.8 | ---- | 0.047 | 0.03 |
| N | H | O | Other(total) | Ti |
| 0.009 | 0.002 | 0.117 | 0.4 | Remainder |
| Physical properties(>=) | ||||
|
Σb Tensile Strength (Mpa) |
σr0.2 Yield Strength (Mpa) |
δL0+50mm Elongation (%) |
ψ Reduction of area (%) |
|
| 508 | 378 | 18 | 25 |

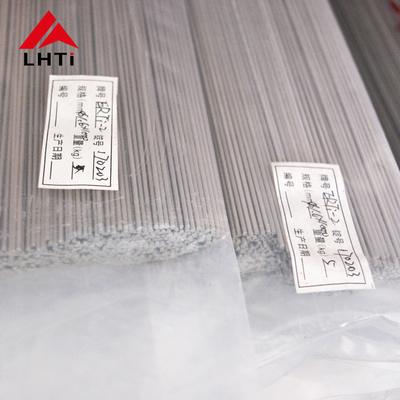

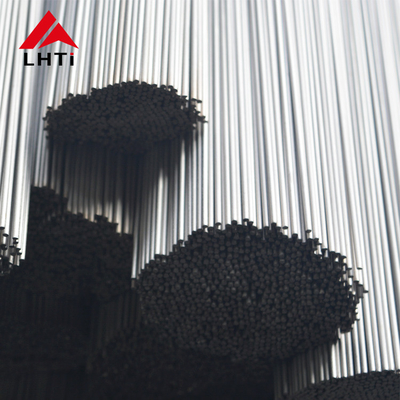

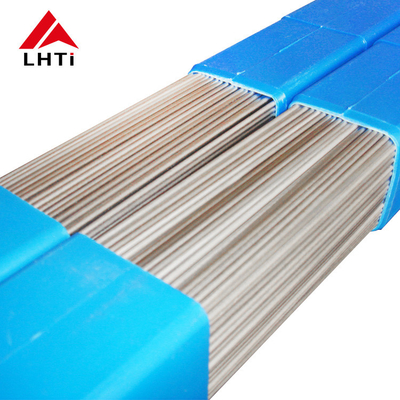

3. Details picture
Titanium AWS 5.16 Gr12 (Ti-0.3Mo-0.8Ni) ERTi-12 alloy welding Filler Rod for MIG GTAW
There are two surface : Acid washed and polished
