Product Details
Place of Origin: Baoji, Shaanxi, China
Brand Name: LHTi
Certification: ISO9001:2015
Model Number: Forged titanium ring
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: USD15.5-58.5 per kg
Packaging Details: Standard export packging, Carton box/ plywood case outside
Delivery Time: 10-20 work days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 20000 kgs per month
Standard: |
ASTM B381 |
OD: |
200mm 250mm 300mm,or As Customized |
Wall Thickness: |
10mm 25mm 30mm 40mm, Or As Customers' Requests |
Material: |
Titanium Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 Etc. |
Application: |
Chemical Industry Etc. |
Surface: |
Bright |
Technique: |
Forged, Machined |
MOQ: |
1 Piece |
Standard: |
ASTM B381 |
OD: |
200mm 250mm 300mm,or As Customized |
Wall Thickness: |
10mm 25mm 30mm 40mm, Or As Customers' Requests |
Material: |
Titanium Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 Etc. |
Application: |
Chemical Industry Etc. |
Surface: |
Bright |
Technique: |
Forged, Machined |
MOQ: |
1 Piece |

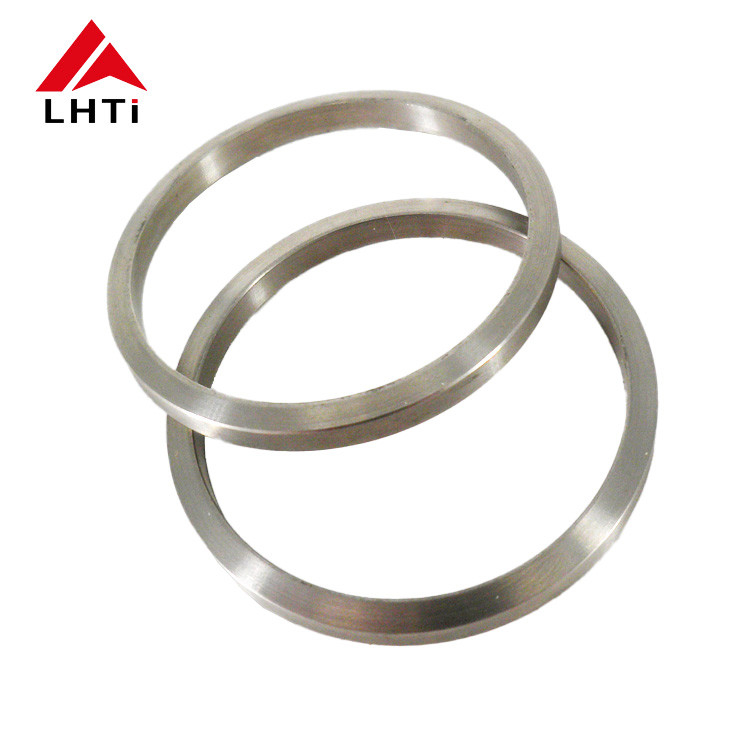

GR5 Titanium Forged Rings
Rolled ring forging is a process that works with several different materials, all with their own advantages.
Rolled ring forging is a process that starts with a circular metal preform that has been pierced to form a doughnut shape. The ring is heated and rotated to reduce its wall thickness and increase its diameter.

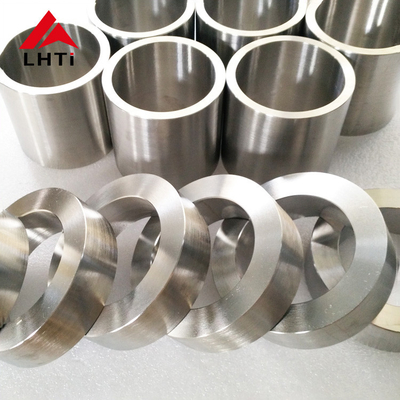

Including titanium seamless rolled rings, forged rings, and casted rings
The process for seamless rolled forged rings involves cutting a hole out of the forging material and rolling it into a thin ring. The rolled forged rings offer concentrically improved rings with smooth surfaces as compared to plate burn-outs, or butt welded rings.
1. High Strength: Titanium is known for its strength and durability, making it an ideal material for forging rings that can withstand wear and tear.
2. Corrosion Resistance: Titanium is highly resistant to corrosion, making it ideal for use in environments where other metals may begin to corrode or degrade.

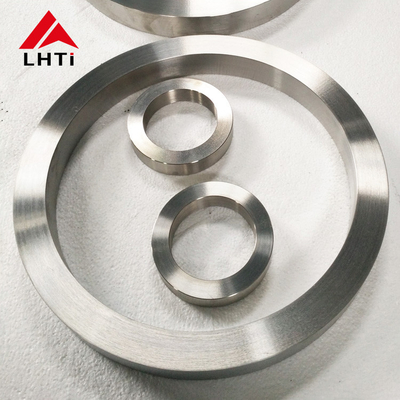

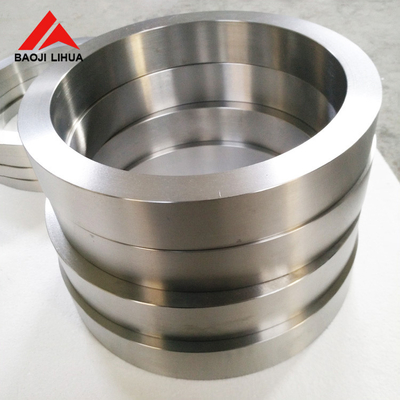

Product name: forged titanium ring
Standard: ASTM B381
Grade: GR1,GR2,GR5,GR7,GR9,GR12
Application:Chemical industry etc.
1.Common Dimensions:
Outside Diameter: 200~400 400~700 700~900 900~1300mm
Inside Diameter: 100~300 150~500 300~700 400~900mm
Height: 20~150 30~250 35~300 50~400mm
2.Mechanical Properties:
| ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation % | ||||
| ksi | Mpa | ksi | Mpa | |||||
| Gr1 | Unalloyed Ti ("Pure") 35A -CP1 | 35 | 240 | 25 | 170 | 24 | ||
| Gr2 | Unalloyed Ti ("Pure") 50A -CP2 | 50 | 345 | 40 | 275 | 20 | ||
| Gr5 | Ti 6Al 4V | 130 | 895 | 120 | 828 | 10E | ||
| Gr7 | T-50A 0.15Pd | 50 | 345 | 40 | 275 | 20 | ||
| Gr9 | Ti 3Al 2.5V | 90 | 620 | 70 | 483 | 15F | ||
| Gr12 | Ti-0.3Mo-0.8Ni | 70 | 485 | 50 | 345 | 18 | ||
