Product Details
Place of Origin: Baoji ,Shaanxi ,China
Brand Name: LH
Certification: ISO9001:2015; SGS;BV;TUV
Model Number: LHTS
Payment & Shipping Terms
Minimum Order Quantity: 5kg
Price: USD15.5-39.5 per kg
Packaging Details: Inside Plastic bag with laber, outside plastic box, then carton box/plywood case
Delivery Time: 5-20 working days
Payment Terms: D/A, D/P, T/T, Western Union, L/C
Supply Ability: 50000 kgs per month
Diameter: |
1.0mm 1.6mm 2mm 2.4mm 3mm 3.2mm Etc. |
Standard: |
AWS A5.16/AMSE SFA 5.16 |
Grade: |
Erti-7( Gr7) |
Length: |
1000mm 2000mm 3000mm, Or As Customers' Requets |
Material: |
Pure Titanium, Alloy Titanium |
Shape: |
Straight, Spool, Coil |
Product Name: |
Titanium Welding Wire |
Surface: |
Pickled, Polished |
Diameter: |
1.0mm 1.6mm 2mm 2.4mm 3mm 3.2mm Etc. |
Standard: |
AWS A5.16/AMSE SFA 5.16 |
Grade: |
Erti-7( Gr7) |
Length: |
1000mm 2000mm 3000mm, Or As Customers' Requets |
Material: |
Pure Titanium, Alloy Titanium |
Shape: |
Straight, Spool, Coil |
Product Name: |
Titanium Welding Wire |
Surface: |
Pickled, Polished |

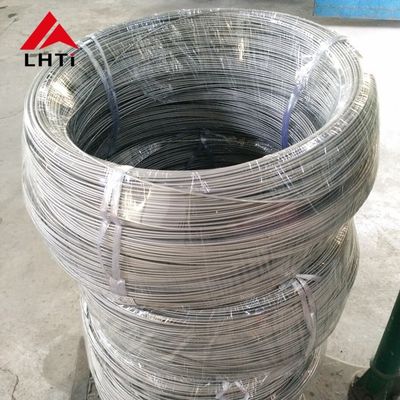

Titanium grade 7 wire Gr7 ErTi-7 Ti-0.2Pd titanium welding wire filler wire
Titanium Wire is slivery metal with excellent properties. Density is 4.54g/cm³ lighter than Steel. But mechanical strength is higher than Steel, 2 times stronger than Aluminium, 5 times stronger than Magnesium. Pure Titanium Wire is high temperature resistance and melting point is 1942K.
High Qualiy Titanium Wire has low density, light weight, high strength, also has the good corrosion resistance, high temperature resistant, low temperature resistance, acid resistance, alkali resistance and so on.
Titanium wire can be applyed in different walks of life. Such as military industry, sporting goods industry, glasses, earring, headwear, plating hangers, welding wire etc.
Among different grade titanium, Grade 7 titanium wire is especially very resistant to corrosion. For example, titanium grade 7 is resistant to salt water and iSuitable for handling chlorides media. In addition, Titanium Grade 7 is resistant to erosion or impact.
|
Chemical Composition(%wt) |
Ti | Pd | Fe(max) | C(max) | N(max) | H(max) | O(max) | The others |
| Gr7 | Remainder | 0.12-0.25 | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | <=0.4 |
| Physical properties(min) | Σb Tensile Strength (Mpa) |
σr0.2 Yield Strength (Mpa) |
δL0+50mm Elongation (%) |
ψ Reduction of area (%) |
| 400 | 275 | 20 | / |
| Diameter range | Types | |||
| mm | inch | Coil | Spool | Straight |
| >0.78 to 3.25 | >0.031 to 0.128 | Yes | Yes | Yes |
| > 3.25 to 6.00 | > 0.128 to 0.236 | Yes | No | Yes |
| * Diameter Tolerance: +/-0.05mm (+/-0.002”) or finer * Spools: 100mm – 300mm (3.9” – 12”) * Straight Length: 300mm - 3000mm (12” – 118”) |
||||
Material Testing:
We ,Baoji Lihua ensure that all our materials go through strict quality tests before dispatching them to our clients.Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test
