Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium Sheet
Payment & Shipping Terms
Minimum Order Quantity: 50 kg
Price: USD13.00-38.00 per kg
Packaging Details: Plywood box with soft foam for additional protection
Delivery Time: 7-20 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union
Supply Ability: 200000 kg per month
Standard: |
ASTM B265 |
Technology: |
Cold Rolled |
Shape: |
Straight |
Surface: |
Polished, Acid Washing |
Standard: |
ASTM B265 |
Technology: |
Cold Rolled |
Shape: |
Straight |
Surface: |
Polished, Acid Washing |

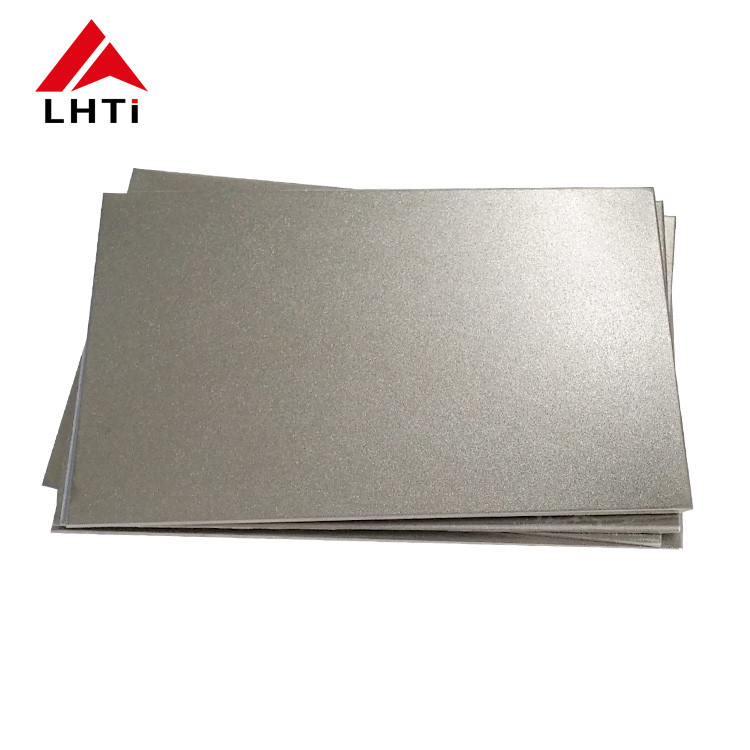

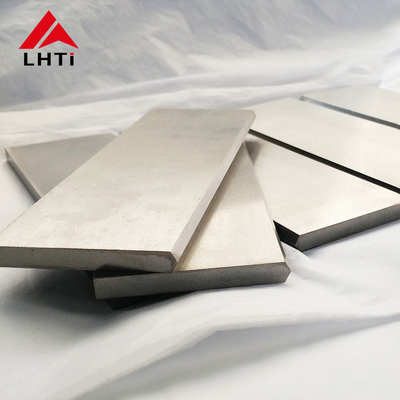

GR7 Polished Alloy Titanium Sheet Cold Rolled Ti Plates
Titanium Plate can be classified into three types: hot rolled, forged, and cold rolled. The specification of hot rolled Titanium Plate is 5.5-250mm. Among them, small pure titanium plates with diameters of 5.5-25mm are mainly supplied as titanium alloys, bolts and straight strips used as various mechanical parts. Pure titanium sheets over 25mm are mainly used for making mechanical parts or seamless titanium tube blanks. Due to the difference in the chemical composition and strength of titanium alloys, there are differences in physical and mechanical properties. Pure titanium plates have better cold bending performance and can be used with 180-degree hooks. The weldability of GR1 Titanium Plate is better, and ordinary carbon electrodes can be used.
| Titanium Grade | Gr7 Ti-0.2Pd |
| Width | 50-3000mm |
| Length | Cut available |
| Technique | Hot Rolled & Cold Rolled |
| Thickness | 0.5~100mm |
| Shape | Plate/Coil |
| Standard | ASTM B265 / ASME 265/ AMS 4911 /ASTM F67 / ASTM F136/ISO 5832-2 / ISO 5832-3 |
| Condition | R(Hot Working) Y(Cold Working) M(Annealed) |
| Application | Aviation,shipping,chemical,industrial,equipment manufacturing,medical,automobile as well sports |
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
