Product Details
Place of Origin: China
Brand Name: LH
Certification: ISO9001:2015
Model Number: LHTB
Payment & Shipping Terms
Minimum Order Quantity: 50kg
Price: USD$15-$30/kg
Packaging Details: Standard export packing
Delivery Time: 5-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 kgs per month
Product Name: |
Titanium Plate |
Material: |
Gr1 Gr2 Gr5 Gr7 Titanium Plate |
Thickness: |
0.5-100mm |
Width: |
10-1000mm |
Standard: |
ASTM B265 |
Application: |
Industry |
Length: |
As Your Require |
Surface: |
Pickling, Polishing, Sand Blasting |
Product Name: |
Titanium Plate |
Material: |
Gr1 Gr2 Gr5 Gr7 Titanium Plate |
Thickness: |
0.5-100mm |
Width: |
10-1000mm |
Standard: |
ASTM B265 |
Application: |
Industry |
Length: |
As Your Require |
Surface: |
Pickling, Polishing, Sand Blasting |

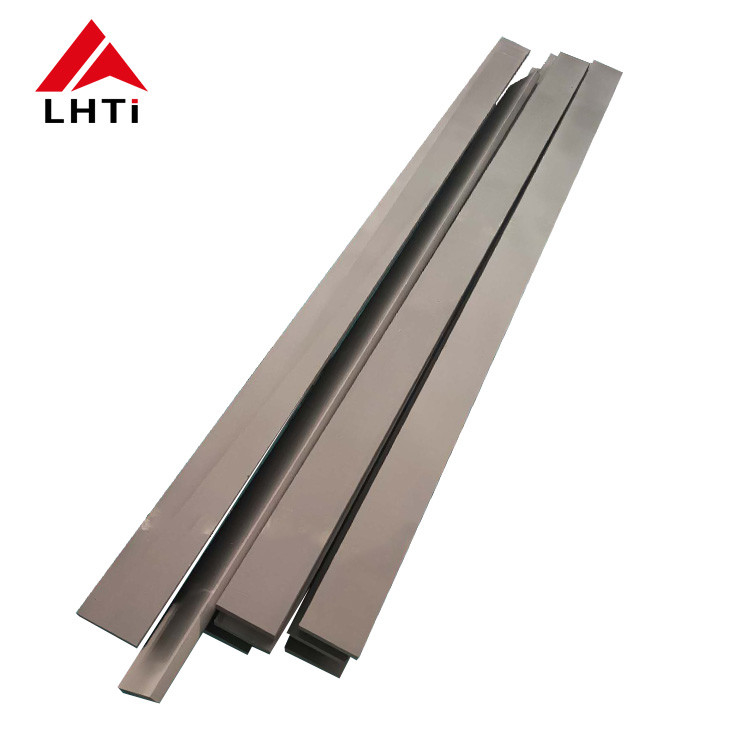

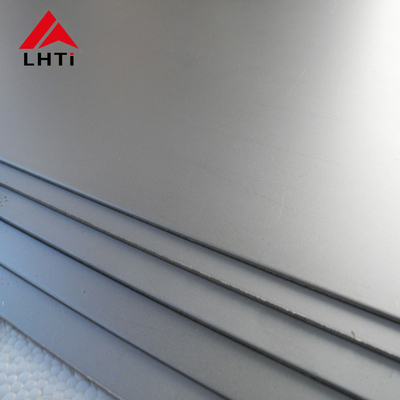

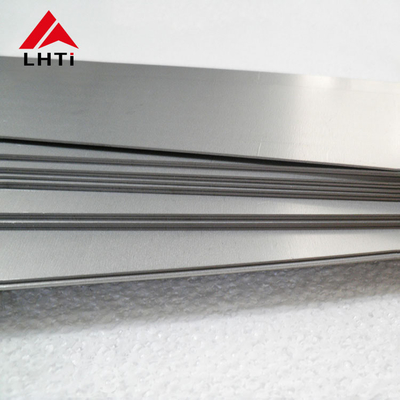

ASTM B265 Gr5 Gr7 Titanium Plate Sheet 0.5mm
Titanium Plates and Sheets is a metal plate made of sponge titanium as raw material. Titanium is a very special metal. It is lightweight, tough and corrosion resistant. Chenyuan Metal specializes in the production of sponge titanium titanium plates. We manufacture a range of Titanium sintered plate, titanium porous plate, titanium anode plate, titanium cathode plate, etc.
| Production Name | Titanium plate. Titanium Plates and Sheets.Titanium sheet |
| Grade | GR1,GR2,GR5,GR7,GR9,GR12 |
| Size | 0.3mm≤1000mm≤2500mm or as your request |
| Standard | ASTM B 265, ASME SB265,AMS491 |
| Supply status | M (Y/ R/ ST) |
| Application | chemical, industry, sports etc. |
| Feature | High corrosion resistance, low density, good thermal stability |
| Technics | Cold Rolled, Hot rolled & cold rolled |
| Surface | Bright, Polished, Pickling, Acid cleaning, Sandblasting |
| Packing | Export Standard Woodcase |
| MOQ | 0.5 Ton |
| Payment terms | T/T, L/C, D/A, D/P, Escrow, Western Union, PayPal |
| Certificate | ISO 9001:2008; The third test report; TÜV Rheinland; |
| Delivery time | 10—25days according to the quantity and process of the product |
| Quality and test | Hardness test, Bending test, Hydrostatic etc. |
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
