Product Details
Place of Origin: Baoji Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-145
Payment & Shipping Terms
Minimum Order Quantity: 5 piece
Price: US dollar $10/pc-US dollar $60/pc
Payment Terms: L/C, D/P, T/T, Western Union,Paypal etc
Supply Ability: 10000 piece per month
Material: |
Titanium |
Grade: |
Gr1,Gr2 |
Purity: |
99.5%min |
Degree: |
45 Degree /90 Degree |
Radius: |
Long Radius |
Key Words: |
Titanium Elbow |
Keyword: |
Titanium Bends |
Keywords: |
Titanium Fittings Pipe |
Package: |
Plwood Case |
Surface: |
Pickling Surface/Sandblasting Surface Etc |
Material: |
Titanium |
Grade: |
Gr1,Gr2 |
Purity: |
99.5%min |
Degree: |
45 Degree /90 Degree |
Radius: |
Long Radius |
Key Words: |
Titanium Elbow |
Keyword: |
Titanium Bends |
Keywords: |
Titanium Fittings Pipe |
Package: |
Plwood Case |
Surface: |
Pickling Surface/Sandblasting Surface Etc |

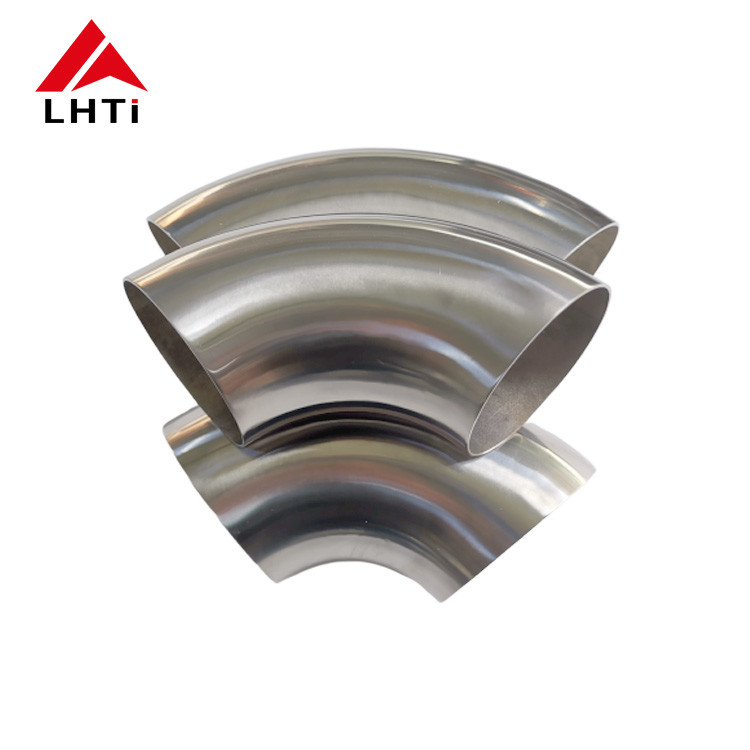

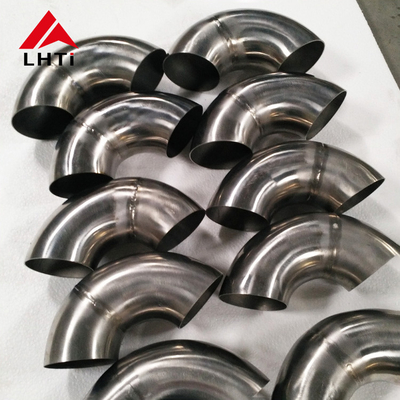

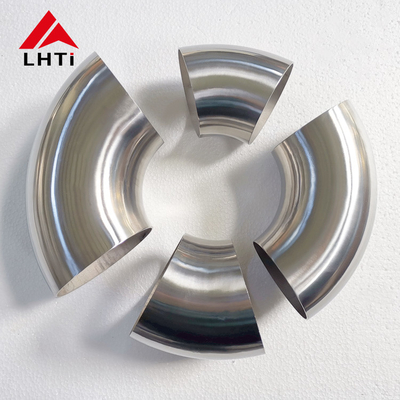

Titanium Elbow 45 Degree / 90 Degree Titanium Pipe Elbow
Elbow is one of the important pipe fittings in various pipeline systems. It is not only used to change the flow direction of medium, but also to improve the flexibility of pipeline. When the medium passes through the elbow, the medium with pressure directly rushes to the back of the elbow, and the medium flows to the outlet along the back. It can be seen that the back of the elbow bears both high pressure and severe erosion corrosion, indicating that the back bears more load than any part.
| TItanium elbow | |
| Material | Titanium(Gr1,Gr2,Gr7,Gr12) |
| Standard | Ansi/asme b16.9, b16.28 |
| Degree | 30D,45D,90D,120D,180D |
| Wall thickness | Sch5 s-Sch160 s(1-15mm) |
| Technical | Pressing,welded, seamless |
| Inspection for welding lines | X-Ray Tests or Dye Penetrate Tests |
| Material Test Report | EN10204.3.1,Chemical Composion And Physical Properties |
| Product Marking | All products are marked by laser after they are finished |
| Application | Petroleum, Chemical Industry, Chloralkali, Metallurgy, Carbonization, Refrigeration, Light Industry, Salt Industry, Electric Power,etc. |
| Certifcate | Germany TUV Assessment, ISO9001:2008 |
| Payment | T/T in advance, L/C at sight,Weastern Union, Paypal, Escrow, |
| package | Plastic bag first,then form inside, plywood case outside |
