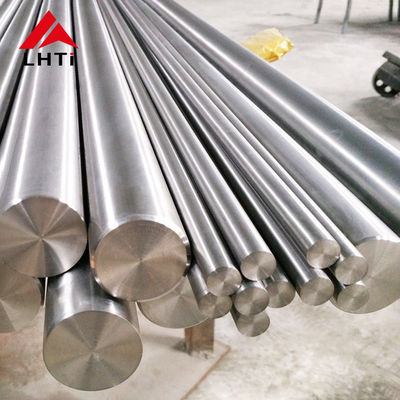

High Strength Titanium Alloy Rod

Basic Information
Place of Origin: Baoji, China
Brand Name: LIHUA
Certification: ISO9001, TUV etc.
Model Number: titanium rod
Minimum Order Quantity: 200kg
Price: US dollar $45/kg--US dollar $60/kg
Packaging Details: Plywood box for export
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 kgs per month
Detail Information
Product Name: ASTM B348 TC9 TC10 TC11 TC12 High Strength Titanium Alloy Rod Standard: ASTM B348
Application: Industry Shape: Round
Length: As Per Your Requirements Surface: Bright
Material: TC9 TC10 TC11 TC12
Highlight:

solid titanium rod

,

titanium hex bar


Product Description



ASTM B348 TC9 TC10 TC11 TC12 high strength Titanium alloy rod



TC9  Ti -6.5AL-3.5Mo-2.5Sn-0.3Si

TC10 Ti-6Al-6V-2Sn-0.5Cu-0.5Fe

TC11 Ti-6.5Al-3.5Mo-1.5Zr-0.3Si

TC12 Ti-5AL-4Mo-4Cr-2Zr-2Sn-1Nb



Industrial pure titanium TA1, TA2, TA3
Excellent stamping performance. Various types of welding can be carried out, and the welding performance is good. The welding joint can reach 90% of the strength of the base metal. It is easy to saw and cut with grinding wheel, and has good machining performance. Excellent corrosion resistance
It is used for parts under 350 ℃ with less stress and parts punched into various complex shapes. Such as condensers in thermal power stations; pipeline systems, valves, and pumps corroded by marine seawater; chemical heat exchangers, pump bodies, distillation towers; seawater desalination systems, platinum-plated anodes; aircraft skeletons, skins, engine parts, beams, etc
TA6
It has good welding performance and high creep strength, but the process has low plasticity and can be deformed under heat. When the alloy is under axial load, it is not sensitive to the cut and the cutting performance is still good.
Parts and welding parts working below 400 ℃
TA7
Poor stamping performance and good thermoplasticity. It can perform various forms of welding with good performance. The strength and plasticity of the welded joint can be equal to the base metal. Mechanical processing performance is the same as industrial pure titanium. Good corrosion resistance, high temperature thermal stability
Do structural parts for long-term work below 500 ℃, can make various forgings
TA8
Good thermoplasticity. Can be welded in various forms with good weldability. The machinability is the same as industrial pure titanium. Good oxidation resistance
Long-term working parts below 500 ℃. Can manufacture engine compressor discs and blades
TC1
Good punchability. Can be welded in various forms with good weldability. The machinability is the same as industrial pure titanium. Good oxidation resistance
Parts for work below 400 ℃. Suitable for all kinds of plates, stamping and welding parts
TC2
At 350 ℃, the endurance strength of 100h is above 400MPa, and the hot working has good plasticity. When heated to 350-400 ℃, there is no tendency to become brittle, so it can be used to weld parts that work at high temperatures
Parts, welding parts, die forgings and bending parts that work below 500 ℃
TC4
Poor stamping and good thermoplasticity. Various forms of welding are possible, and the strength of the welded joint can reach 90% of the strength of the base metal. The mechanical processing performance is good, it needs to use cemented carbide, large cutting volume, slow speed, and sufficient cooling. Good corrosion resistance and good thermal stability. It is one of the most widely used titanium alloys
Parts for long-term work below 400 ℃
TC5
It is stable below 350, and the plasticity decreases at higher temperatures. Forging, stamping and other deformations can be performed under hot conditions
Parts working below 350 ℃
TC9
Thermoplastic is good. Machinability is the same as T alloy. High corrosion resistance. Thermal stability is good
Long-term working parts below 400 ℃. Can manufacture compressor discs and blades
TC10
Poor stamping and good thermoplasticity. Various forms of welding are possible, and the strength of the welded joint can reach 90% of the strength of the base metal. Mechanical processing performance is the same as T alloy. Good corrosion resistance. Good thermal stability, remarkable heat treatment effect, good hardenability
Do long-term work below 450 ℃





 Tensile requirements

Grade Tensile strength(min) Yield strength(min) Elongation(%)
M Pa M Pa
TC9 1060 910 25
TC10 1030 900 25
TC11 1030 900 30
TC12 1150 1000 25


Tolerance

Diameter(mm) h7 h8 h9 h10 h11 h12
Tolerance precision (um)
3~6 12 18 30 48 75 120
6~10 15 22 36 58 90 150
10~18 18 27 43 70 110 180
"h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X)



High Strength Titanium Alloy Rod 0

High Strength Titanium Alloy Rod 1
