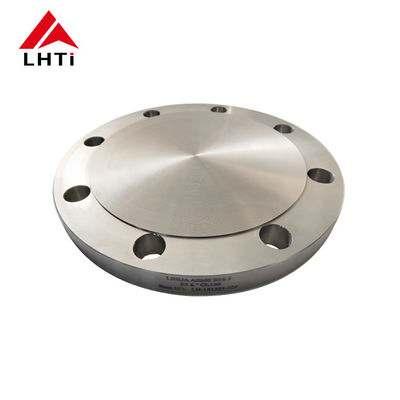

Ansi b16.5 Gr2 Gr7 Gr12 Titanium Blind Flanges for pipe fittings

Product Details

Place of Origin: Baoji, China

Brand Name: LIHUA

Certification: ISO9001, TUV etc.

Model Number: LH-BL

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: US dollar $30/pc--US dollar $80/pc

Packaging Details: Wrapped by foam contained in plywood box for export

Delivery Time: 3-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000 pcs per month

Get Best Price
Highlight:

Raised Face Titanium Blind Flange

,

Gr12 Raised Face Flange

,

CNC Machined Titanium Pipe Blind Flange

Product Name:
Ansi Titanium Blind Flange
Standard:
ANSI B16.5
Material:
Gr2, Gr7, Gr12
Application:
Chemical Industry
Sealing Surface:
RF
Size:
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure:
150#-2500#
Surface:
Polished
Technique:
Froged And CNC Machined
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Product Name:
Ansi Titanium Blind Flange
Standard:
ANSI B16.5
Material:
Gr2, Gr7, Gr12
Application:
Chemical Industry
Sealing Surface:
RF
Size:
NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure:
150#-2500#
Surface:
Polished
Technique:
Froged And CNC Machined
Inspection:
Ultrasonic Testing & Material Test Report EN10204.3.1
Ansi b16.5 Gr2 Gr7 Gr12 Titanium Blind Flanges for pipe fittings





Titanium Blind Flanges



Product name

Titanium blind flanges

Flange Type

BL

Standard

ANSI B16.5,ANSI B16.47A, ANSI B16.47

Size

1/2''~60''

Class Rating

150~20000LBS

Material

Titanium GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12)

Manufacturing process

Forged, CNC machined

Surface

CNC machined polished

Facing

RF(raised face);FF(flat face);RTJ(ring type joint);RJ(ring joint face),TG(tongue and groove face);MFM(male and female face)

Application

Pipe connections for chemical and petrochemical equipment. It has low density and performs impressively in corrosive environments.



Dimensional Tolerances of Blind Flanges ASME B16.5



Outside Diameter ≤ 24 = 1.6 mm | > 24 = ± 3.2 mm

Inside Diameter not applicable

Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm

Outside Diameter of Hub 2≤ 1 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm

Diameter of Counterbore not applicable

Drilling Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.

Thickness ≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0

Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm

Titanmium Bind flange

titanium blind flange 25titanium blind flange 32titanium blind flange 23



Applications



Titanium Blind Flange Type 05



Production Process



Titanium Blind Flange Type 05



Our Factory



Titanium Blind Flange Type 05



Stock



Titanium Blind Flange Type 05



Quality Inspection



Titanium Blind Flange Type 05



Packaging



Titanium Blind Flange Type 05



Advantages of our factory



1. Used grade 1 titanium sponge as raw material to guarantee the chemical composition and mechanical propertis. Material certificate will be submitted follow to orders.

2. Forged valve body and disc to control the leakage and visual.

3. Superior facilities and good experiences for fabrication.

4. In ability to improve and develop new design.

5. Fast delivery is possible to meet your needs well in time.

6. Low cost from bulk production will reduce your budget and improve your business.

7.Professional export team and long-term after-sales service
