Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium Rod
Payment & Shipping Terms
Minimum Order Quantity: 30 kg
Price: $20.00~$30.00/kg
Packaging Details: Plywood box with soft foam for additional protection,Standard Export package Titanium bar/rod will be packed in the plastic first and then use wooden case,wooden case or according to your order.
Delivery Time: 10-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 300000 kg per month
Diameter: |
3mm-350mm |
Material: |
Pure Titanium |
Surface: |
Bright,Polished,Pickling |
Condition: |
Annealed; M |
MOQ: |
30 Kg |
Packing: |
Standard Export Packing |
Diameter: |
3mm-350mm |
Material: |
Pure Titanium |
Surface: |
Bright,Polished,Pickling |
Condition: |
Annealed; M |
MOQ: |
30 Kg |
Packing: |
Standard Export Packing |
High Quality TC4 Gr5 Grade5 Titanium Bar
Grade 5 Titanium Bar Specifications | |
Specifications | ASTM B348,ASTM SB348 |
Dimensions | EN,DIN,JIS,ASTM,BS,ASME,AISI |
Size | 5mm to 500mm |
Diameter | 0.1mm to 100mm |
Length | 100mm to 3000mm Long & Above |
Finish | Black,Polished,Bright,Round Turned |
Tolerance | H8,H9,H10,H11,H12,K9,K10,K11,K12 |
Form | Round,Square,Hex(A/F),Rectangle,Billet,Ingot,Forging,etc. |
Chemical requirements | |||||||||||
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Tensile requirements | |||||
Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
KSI | MPa | Ksi | MPa | ||
1 | 35 | 240 | 20 | 138 | 24 |
2 | 50 | 345 | 40 | 275 | 20 |
5 | 130 | 895 | 120 | 828 | 10 |
7 | 50 | 345 | 40 | 275 | 20 |
12 | 70 | 438 | 50 | 345 | 18 |
Item Name | Titanium bar/titanium rod |
Standard | ASTM B348,ASTM F67,ASTM F136, AMS 4928 |
Material | Gr1 Gr2 Gr3 Gr4 Gr5 |
Diameter | 0.8~500mm |
Length | 500~6000mm or according to customers' request |
Product Status | Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status |
Shape | Round bar, square bar , hex bar |
Feature |
1.Polished surface without any defects free from cracks no pittings |
Certificate | ISO9001:2015, TUV, material test certificate acc EN10204.3.1 |

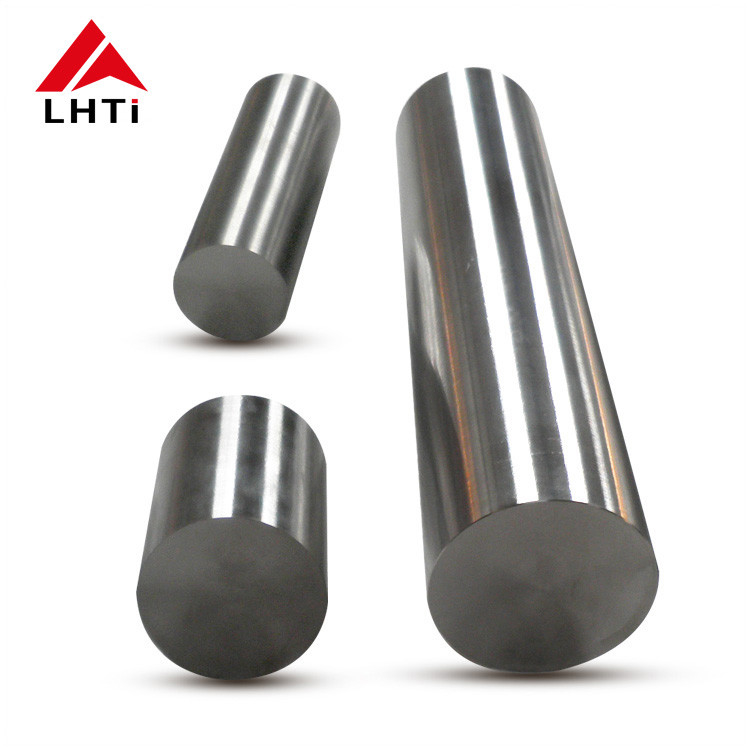

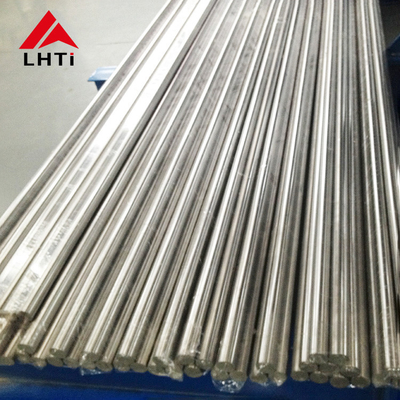

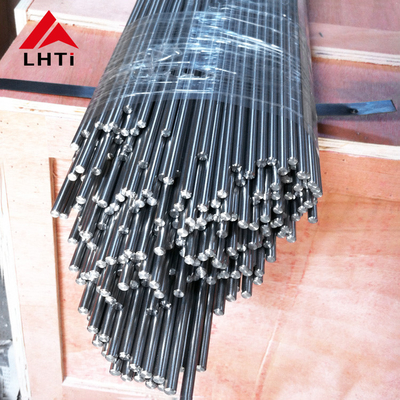

Product picture:
