Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001:2015; TUV; BV; SGS
Model Number: Titanium elbow
Payment & Shipping Terms
Minimum Order Quantity: 5 piece
Packaging Details: Plastic bag with laber, outside plastic box, then plywod box
Delivery Time: 5-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 50000 pcs per month
Model Number: |
ASTM B363 WPT2 Titanium Lap Joint Stub End Cap Fitting From Factory |
Material: |
Titanium |
Connection: |
Welding |
Shape: |
Reducing |
KW: |
Corrosion Resistance |
Application: |
Chemical Industry |
Packaging Details: |
Plastic Inside And The Good Wooden Export Case Outside, Suitable For Both Air And Sea Delivery |
Model Number: |
ASTM B363 WPT2 Titanium Lap Joint Stub End Cap Fitting From Factory |
Material: |
Titanium |
Connection: |
Welding |
Shape: |
Reducing |
KW: |
Corrosion Resistance |
Application: |
Chemical Industry |
Packaging Details: |
Plastic Inside And The Good Wooden Export Case Outside, Suitable For Both Air And Sea Delivery |

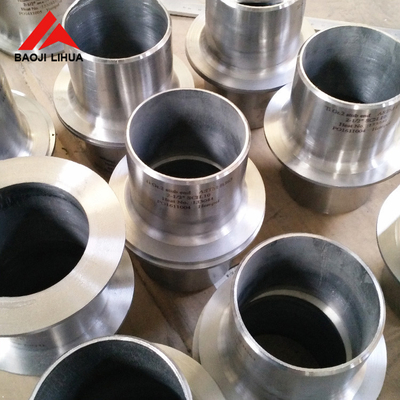

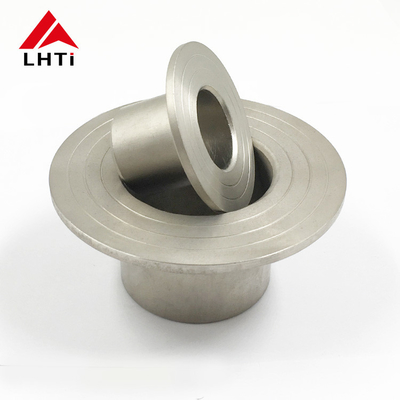

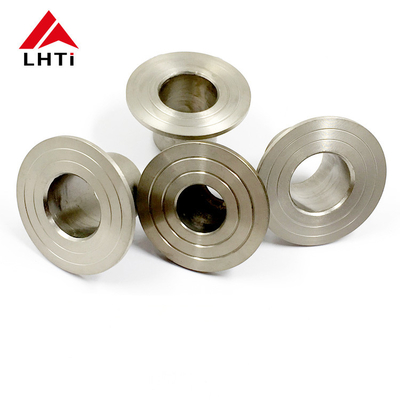

ASTM B363 Titanium Pipe Lap Joint Stub End
Titanium has excellent corrosion resistance. At room temperature, titanium surface is easy to form a protective oxide film, which is not eroded by water, acid solution and alkaline solution, and has strong corrosion resistance to seawater. It is mainly used in petroleum, chemical industry, thermal power station and other industrial departments, and the connection between titanium pipe fittings (such as elbow, Gr1 Titanium Stub Ends,tee and reducer) and pipes is an important part.
1. Product Information
Grade: GR1 GR2 GR7 GR9 GR12
Standard: ASTM B363, ASME SB363, ASME B16.9, ANSI B16.9, JIS, ISO, BS, DN etc.
Application: Chemical industry
Type: 45 degree elbow, 90 degree elbow, 180 degree elbow
Type 2: Long radius, Short radius
Technique: Seamless, Welded
Outer Diameter: 1/2"-48"(DN15-DN1200)
Wall Thickness: Sch5s-Sch160s
Specifications:
| Specifications | ||
| Nominal diameter DN | Diameter of mm | Grade |
| 3/8 | 17.1 | Gr1/Gr2/Gr7/gr12 |
| 1/2 | 21.3 | Gr1/Gr2/Gr7/gr12 |
| 1 | 33.4 | Gr1/Gr2/Gr7/gr12 |
| 1 1/4 | 42.2 | Gr1/Gr2/Gr7/gr12 |
| 1 1/2 | 73.0 | Gr1/Gr2/Gr7/gr12 |
| 2 | 60.3 | Gr1/Gr2/Gr7/gr12 |
| 2 1/2 | 73.0 | Gr1/Gr2/Gr7/gr12 |
| 3 | 88.9 | Gr1/Gr2/Gr7/gr12 |
| 3 1/2 | 101.6 | Gr1/Gr2/Gr7/gr12 |
| 4 | 114.3 | Gr1/Gr2/Gr7/gr12 |
| 5 | 141.3 | Gr1/Gr2/Gr7/gr12 |
| 6 | 168.3 | Gr1/Gr2/Gr7/gr12 |
| 8 | 219.1 | Gr1/Gr2/Gr7/gr12 |
| 10 | 273.1 | Gr1/Gr2/Gr7/gr12 |
| 12 | 323.9 | Gr1/Gr2/Gr7/gr12 |
| 14 | 355.6 | Gr1/Gr2/Gr7/gr12 |
| 16 | 406.4 | Gr1/Gr2/Gr7/gr12 |
| 18 | 457.2 | Gr1/Gr2/Gr7/gr12 |
| ... | ... | Gr1/Gr2/Gr7/gr12 |
| Note: Specific thickness and diameter can also be customized. | ||
