Product Details
Place of Origin: Baoji, China
Brand Name: LH-Ti
Certification: ISO9001, TUV etc.
Model Number: LH-BL
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $30/pc--US dollar $80/pc
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Product Name: |
Ansi Titanium Blind Flange |
Standard: |
ANSI B16.5 |
Material: |
Gr2, Gr7, Gr12 |
Application: |
Chemical Industry |
Sealing Surface: |
RF |
Size: |
NPS 1/2 - NPS 24(DN 10 - 2000) |
Pressure: |
150#-2500# |
Surface: |
Polished |
Technique: |
Froged And CNC Machined |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Product Name: |
Ansi Titanium Blind Flange |
Standard: |
ANSI B16.5 |
Material: |
Gr2, Gr7, Gr12 |
Application: |
Chemical Industry |
Sealing Surface: |
RF |
Size: |
NPS 1/2 - NPS 24(DN 10 - 2000) |
Pressure: |
150#-2500# |
Surface: |
Polished |
Technique: |
Froged And CNC Machined |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Gr1 Gr2 Titanium Flange ANSI B16.5 ASME B16.5 Titanium 50mm
Titanium flange is a part made of non-ferrous titanium or titanium alloy to make pipes and pipes connected to each other, connected to the pipe end. It can be cast, threaded or welded. The flange connection is composed of a pair of flanges, a gasket and a number of bolts and nuts. The gasket is placed between the sealing surface of the two flanges. After tightening the nut, the specific pressure on the surface of the gasket will be deformed after reaching a certain value, and the uneven part of the sealing surface will be filled, so that the connection is tight and not leaking. The common grades: TA0 TA1, TA2, TA3, TA9, TA10, TC4, etc
Material: Gr1, Gr2, Gr5, Gr7, Gr12
Standard: ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628
Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) .
Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.
Sealing Surface: RF, FF, TG, RJ etc.
Technique: Forged and CNC Machined
Inspection: UT% , PT%
Certificate: ISO9001, TUV etc.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

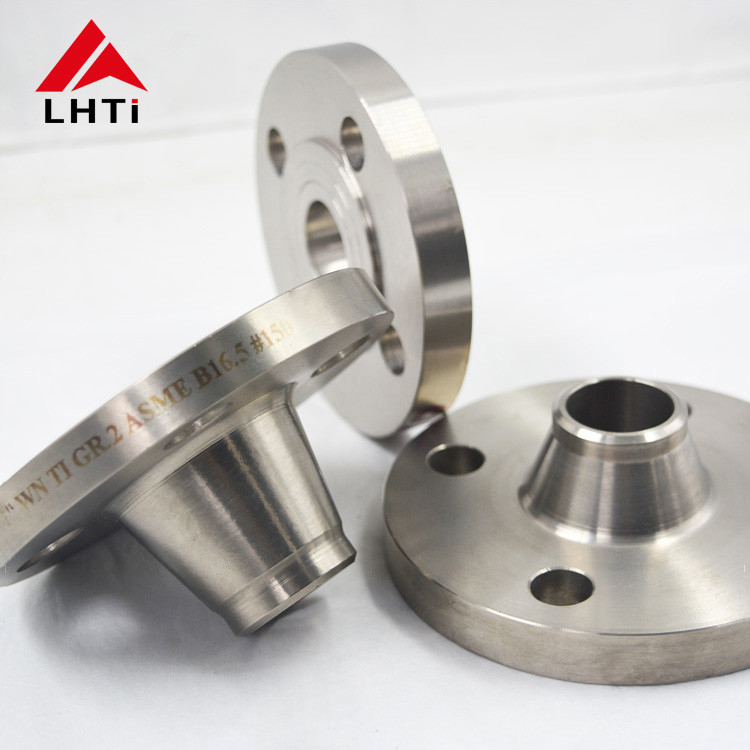

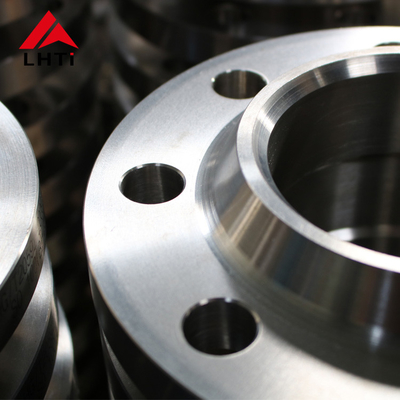

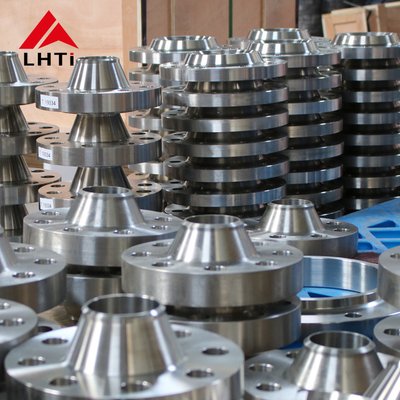

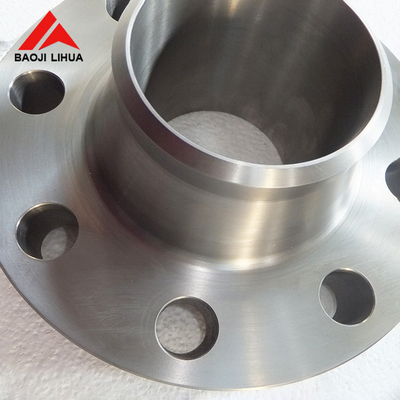

Product picture:
