Product Details
Place of Origin: Baoji, China
Brand Name: LIHUA
Certification: ISO9001, TUV etc.
Model Number: LH-BL
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $30/pc--US dollar $80/pc
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Product Name: |
Ansi Titanium Blind Flange |
Standard: |
ANSI B16.5 |
Material: |
Gr2, Gr7, Gr12 |
Application: |
Chemical Industry |
Sealing Surface: |
RF |
Size: |
NPS 1/2 - NPS 24(DN 10 - 2000) |
Pressure: |
150#-2500# |
Surface: |
Polished |
Technique: |
Froged And CNC Machined |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Product Name: |
Ansi Titanium Blind Flange |
Standard: |
ANSI B16.5 |
Material: |
Gr2, Gr7, Gr12 |
Application: |
Chemical Industry |
Sealing Surface: |
RF |
Size: |
NPS 1/2 - NPS 24(DN 10 - 2000) |
Pressure: |
150#-2500# |
Surface: |
Polished |
Technique: |
Froged And CNC Machined |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Flanges are widely used in water conservancy, electric power, power stations, pipe fittings, industry, pressure vessels, etc. Titanium flange is a flange processed by forging process. It is made of titanium material and is generally used in machinery and chemical industries. In addition to titanium flanges, we can also manufacture nickel flanges, zirconium flanges, etc.
ASME B16.47 titanium flange
Material:Titanium GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12)
Type: Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange,
Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange,etc
Connection type: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female,Large tongue groove, Small tongue groove etc
Size: 1'' and 1/2'' ~ 120'' (DN40-DN3000)
MOQ: 1 piece
Price term:EXW factory, FOB, C&F and CIF
Payment term: T/T, L/C, West Union, Money Gram and etc
Package: Standard exporT plywood case or as you requested
Application: Usually used in constructions,petroleum, chemical industry, power, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing and electric etc.
Export to USA,Canada,Australia,Singapore,Indonesia,Hongkong,Oman,Vietnam etc
Physical Properties
| Grade | Tensile strength(min) | Yeild strength(min) | Elongation (%) | ||
| ksi | MPa | ksi | MPa | ||
| GR1 | 35 | 240 | 20 | 138 | 24 |
| GR2 | 50 | 345 | 40 | 275 | 20 |
| GR5 | 130 | 895 | 120 | 828 | 10 |
| GR7 | 50 | 345 | 40 | 275 | 20 |
| GR9 | 90 | 620 | 70 | 438 | 15 |
| GR12 | 70 | 438 | 50 | 345 | 18 |
We can manufacture different type titanium flanges:

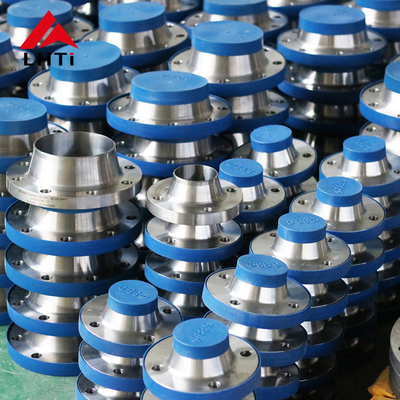

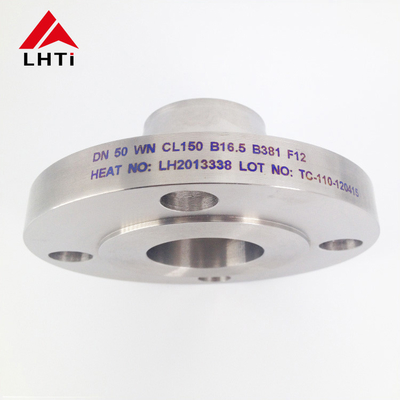

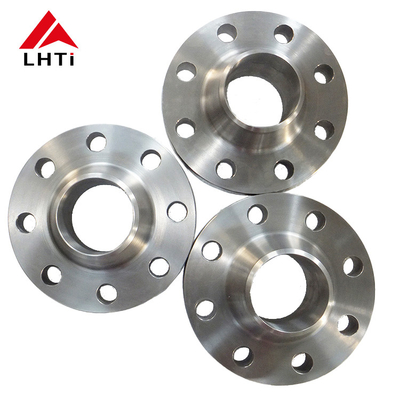

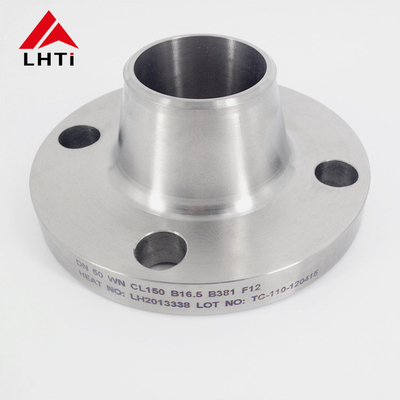

Detailed images:
Based on international and domestic industrial standards and customer requirements, we set up higher internal quality assurance standards to implement comprehensive and full quality management.Our factory always arrange PMI and physical properties inspection for all incoming materials.We strictly performance the ultrasonic testing for each titanium flange according to the worldwide standards and customer requirements.Additional test such as radiographic testing, hardness testing ect can be arranged upon request.We will never allow any defective products leave from the factory.
Advantages of our factory:
1. The first-grade titanium sponge is used as the raw material to ensure the chemical composition and mechanical properties. Material certificates will be submitted in accordance with the order.
2. Forged body and disc control leakage and vision.
3. Advanced production equipment and rich experience.
4. Ability to improve and develop new designs.
5. Fast delivery can meet your needs in time.
6. The low cost of mass production will reduce your budget and improve your business.
7. Professional export team and long-term after-sales service
Welcome to send inquiries!
