Product Details
Place of Origin: Baoji, China
Brand Name: LIHUA
Certification: ISO9001, TUV etc.
Model Number: LH-BL
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: US dollar $30/pc--US dollar $180/pc
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Product Name: |
Titanium Blind Flange |
Standard: |
ANSI B16.5 |
Material: |
Gr2, Gr7, Gr12 |
Application: |
Chemical Industry |
Sealing Surface: |
RF |
Size: |
NPS 1/2" - NPS 24"(DN 10 - 2000) |
Pressure: |
150#-2500# |
Surface: |
Polished |
Technique: |
Froged And CNC Machined |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Product Name: |
Titanium Blind Flange |
Standard: |
ANSI B16.5 |
Material: |
Gr2, Gr7, Gr12 |
Application: |
Chemical Industry |
Sealing Surface: |
RF |
Size: |
NPS 1/2" - NPS 24"(DN 10 - 2000) |
Pressure: |
150#-2500# |
Surface: |
Polished |
Technique: |
Froged And CNC Machined |
Inspection: |
Ultrasonic Testing & Material Test Report EN10204.3.1 |
Ti Gr2 Gr12 Blind Flansch(BL) titanium flange price per kg
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
Baoji Lihua can provide various standards (ASTM, ASME, JIS, en1092-1, DIN ect.) and various types of titanium flange (PL, BL, WN, LP, so ect.) our flange quality is good, in line with international standards.
ANSI B16.5 titanium blind flange
Material Titanium: Gr1 (3.7025), Gr2 (3.7035), Gr7 (3.7235), Gr12 (3.7105)
Size: 1/2"-48" Schedule 5s to Schedule 80
Standard: ASME B16.5, EN 1092, JIS 2201, AWWA C207, ASME B16.48
Type: PL, BL, WN, LP, SO, spectacle etc
Pressure level: Class 150-1200LBS, PN 1.0-4.0 Mpa
Month capacity: 100000 pieces
Tests: UT, DPI
Sealing Face: RF, FF, FMF, RJ, Groove etc
Cerfificate: EN 10204-3.1
Application
1.Mechanical equipment
2.Plating equipment
3.Chemical and petroleum
4.precision parts and other industries
5. Aircraft engine compressor components
6. Structure rockets, missiles and high-speed aircraft
Physical Properties
| Grade | Tensile strength(min) | Yeild strength(min) | Elongation (%) | ||
| ksi | MPa | ksi | MPa | ||
| GR1 | 35 | 240 | 20 | 138 | 24 |
| GR2 | 50 | 345 | 40 | 275 | 20 |
| GR7 | 50 | 345 | 40 | 275 | 20 |
| GR12 | 70 | 438 | 50 | 345 | 18 |

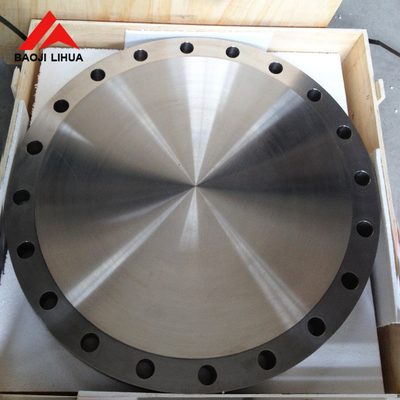

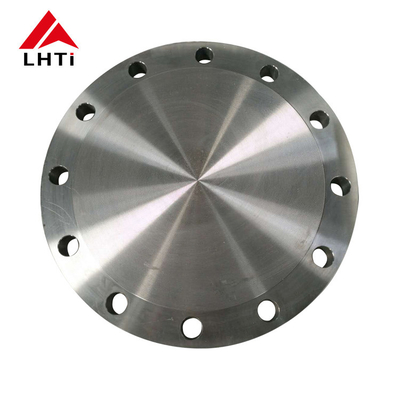

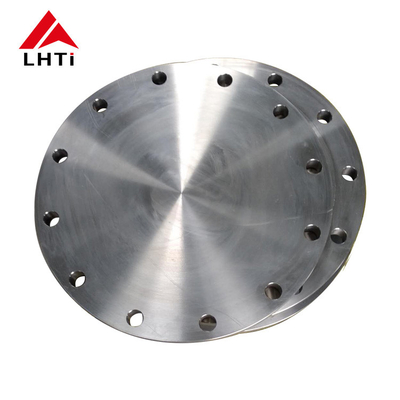

Detailed images of titanium blind flanges:
The packaging of titanium flanges:
Inside,each flange is wrapped with pearl cotton to avoid scratch and deformation during transportation. Outside is the fumigation free plywood box, and then add the fixed steel belt. Standard export packaging, ensure the safety of goods to arrive to customers sides.
About our company:
Baoji Lihua Non-ferrous Metals co.,Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.We are specialized in manufacturing,researching and marketing of titanium products. Titanium flange is one of our main product, and the quality is recognized by the customers from domestic and foreign . We have our own factory and mechanical equipments, so can ensure products quality and delivery time. With over 15 years export Experience, our products was sold to Asia, Europe, North America in large quantity.
We are always available in any time! Welcome to contact!
