Home > products > Titanium Wire > 0.5mm Titanium Wire Elastic Memory Nitinol Alloy Wire ASTM F2063

0.5mm Titanium Wire Elastic Memory Nitinol Alloy Wire ASTM F2063

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001

Model Number: Titanium Wire

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Packaging Details: Plywood case and then tied by steel band. The packaging will keep the goods more secure when in long distance transportation.

Delivery Time: 10-15working days

Payment Terms: L/C, D/A, T/T, Western Union

Supply Ability: 1000 Kilogram/Kilograms per Month

Get Best Price
Highlight:

0.5mm Titanium Wire

,

Elastic Memory Nitinol Alloy Wire

,

ASTM F2063 Titanium Wire

Place Of Origin:
China
Brand Name:
LHTi
Model NumbeTITANIUM WIREr:
Titanium Wire
Application:
INDUSTRY
Ti (Min):
90%
Processing Service:
Bending, Welding, Cutting
Material:
Pure Titanium Titanium Alloy
Standard:
ASTMF2063-2012
Surface:
Pickling Polished
Color:
Metal Color
MOQ:
10kg
Package:
Wooden Case
Key Words:
ASTM F2063 0.5mm Nitinol Wire
Key Words 2:
Titanium Wire
Shape:
Round
Place Of Origin:
China
Brand Name:
LHTi
Model NumbeTITANIUM WIREr:
Titanium Wire
Application:
INDUSTRY
Ti (Min):
90%
Processing Service:
Bending, Welding, Cutting
Material:
Pure Titanium Titanium Alloy
Standard:
ASTMF2063-2012
Surface:
Pickling Polished
Color:
Metal Color
MOQ:
10kg
Package:
Wooden Case
Key Words:
ASTM F2063 0.5mm Nitinol Wire
Key Words 2:
Titanium Wire
Shape:
Round
0.5mm Titanium Wire Elastic Memory Nitinol Alloy Wire ASTM F2063

High Quality ASTM F2063 0.5mm 2mm 0.36mm mesh super elastic memory round metal polished nitinol alloy wire



Product application



1. Nitinol spring: nitinol push and pull spring is a kind of spring used for orthodontic treatment. It has the characteristics of nitinol super elasticity, and is suitable for orthodontic treatment, opening up the space between teeth and pulling teeth in different directions. A force of about 50 g can be produced by extending the NiTi coil spring by 1 mm. NiTi coil spring has high elastic properties, which can produce soft and stable continuous force under tensile state. The force attenuation is very small, which can produce ideal orthodontic force for clinical tooth movement. Meet the physiological requirements. Compared with the stainless steel wire of the same diameter, the force released by the Ni Ti wire spring is 3.5-4 times lower. Therefore, in the application of orthodontic treatment, patients not only have mild pain, soft and lasting feeling power, but also reduce the return visit time, shorten the course of treatment and improve the curative effect. It is a new excellent mechanical device in orthodontic treatment.



2. Because of the super elasticity, shape memory and low stress-strain curve of nitinol archwire, nitinol archwire is usually used as the initial archwire in orthodontic treatment system. In this way, the discomfort of patients will be greatly reduced. Because there are several kinds of straight wire orthodontic techniques, mbt technique recommends the use of 0.016 inch heat activated nickel titanium alloy arch wire (hant wire), demon self-locking bracket technique recommends the use of copper containing heat activated nickel titanium alloy arch wire (phase transition temperature is about 40 ℃), 0.016 inch super elastic Ni Ti alloy arch wire is recommended for early alignment in o-pak.





Alloy Chemical
composition
Af(fully annealed) Min. elongation to failure [%] Max. Residual
elongation
after 6%
strain [%]
Main
Applications
Superelastic
Ni-Ti alloy
TiNi-SS Ti-50.8at% -5°C ± 5°C. 10 0.1 Eyeglass
Frames,
Cellular Phone
Antennae,
Bra Underwire
TN3
TNC
TiNiVAl
TiNiCr
-40°C ~50°C 10 0.1
Body temperature
Ni-Ti alloy
TiNi-YY Ti-50.7at%Ni Functional(Af=33±3) 15 0.1 Implantable
devices,
Bone staples
Vascular Stents
Ti-Ni-01 55.6~55.8 wt%Ni 20-40 15 0.1 Guide wires,
Stents
Orthodontic
Arches
High temperature
Ni-Ti alloy
Ti-Ni-02 54.8~55.5wt%Ni 45 - 95 10 0.1 Implantable
active devices,
Surgical tools,
Thermostats
Coffeepots
TiNiCu TiNiCu As-Ms ≤ 5 10 0.1

size Wire:Dia.0.5-0.6mm
Bar:Dia3.0mm-20mm
Sheet:Thickness 0.3-10.0mm Width≤400mm Length≤2500mm
Surface State Options Oxide surface(including black oxide,Blue oxide,Amber oxide)
Etched surface
Medical grade polished surface
Centerless ground surface
Packaging Straight lengths/Coils without support
Coils with support/spools
Wooden cases suitable for overseas shipment
Other packaging available on customer'srequest



Product picture

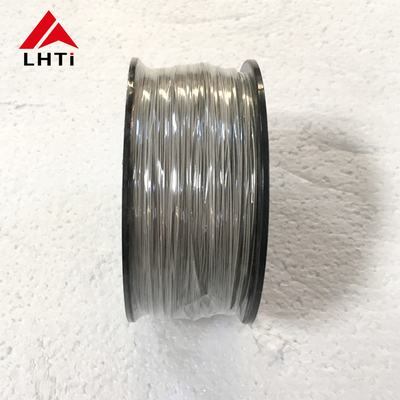

0.5mm Titanium Wire Elastic Memory Nitinol Alloy Wire ASTM F2063 0

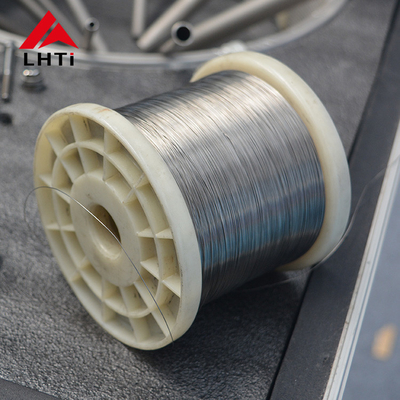

0.5mm Titanium Wire Elastic Memory Nitinol Alloy Wire ASTM F2063 1

Exhibition

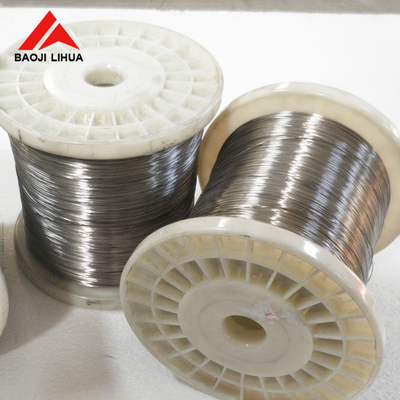

0.5mm Titanium Wire Elastic Memory Nitinol Alloy Wire ASTM F2063 2

0.5mm Titanium Wire Elastic Memory Nitinol Alloy Wire ASTM F2063 3
