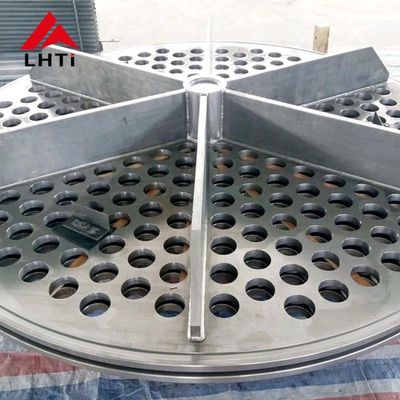

ASME B381 Titanium Equipment Titanium Exchanger Tube Sheet CNC Machining

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO 9001:2015

Model Number: LH-Ti2

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Packaging Details: Standard export packing,plywood case outside

Delivery Time: 15-30 Days

Payment Terms: L/C,D/P, T/T etc.

Supply Ability: 20000 pieces per month

Get Best Price
Highlight:

ASME B381 Titanium Equipment

,

CNC Titanium Exchanger Tube Sheet

,

Gr7 Titanium Exchanger Tube Sheet

Product Name:
Titanium Alloy Tube Sheet Tubesheet CNC Machining Of Titanium Alloy Parts Turning
Material:
Grade 1 Grade2 Grade5 Grade7 Grade12 Titanium
Standard:
ASTM/ASME B265,ASTM/ASME B381
Tubesheet Diameter:
MaxΦ8600mm
Hole Diameter Range:
1.5mm---238mm
Hole Depth:
Max1100mm
Quality Test:
UT,PT
Third-party Testing:
Available
Product Name:
Titanium Alloy Tube Sheet Tubesheet CNC Machining Of Titanium Alloy Parts Turning
Material:
Grade 1 Grade2 Grade5 Grade7 Grade12 Titanium
Standard:
ASTM/ASME B265,ASTM/ASME B381
Tubesheet Diameter:
MaxΦ8600mm
Hole Diameter Range:
1.5mm---238mm
Hole Depth:
Max1100mm
Quality Test:
UT,PT
Third-party Testing:
Available
ASME B381 Titanium Equipment Titanium Exchanger Tube Sheet CNC Machining

 Titanium alloy tube sheet tubesheet CNC machining of titanium alloy parts Turning



Tubesheet, is a circular plate drilled with holes of the same diameter of the pipe , is the heat exchanger to fix the pipe and sealing medium role of the round plate. An accessory that does this by passing a pipe through and soldering it in place.Titanium tubesheet is a tubesheet made of titanium.

The precision of tube plate processing, especially the tolerance of tube hole spacing and diameter, verticality and finish, greatly affect the assembly and performance of the chemical equipment listed above.



With the upsizing of chemical equipment and power stations, the diameter of tubesheet is becoming larger and larger. Tubesheet with a diameter of 4m-5m is very common. Large tubesheet is characterized by a large number of tube holes, dense, small aperture, deep, high precision and finish requirements.



Tubesheet is widely used in tubular heat exchanger, boiler, pressure vessel, steam turbine, large central air conditioning and other industries.



Tubeplate is mainly used in chemical vessels, such as tubular heat exchanger, pressure vessel, boiler, condenser, central air conditioning, evaporator, seawater desalination, to support the role of fixed tube, metal material makes it not only has strong rigidity, but also has great heat conduction performance.





Item Titanium tubesheet/ Ti Tube sheet
CNC Machining or Not Cnc Machining
Type

Broaching, DRILLING, Etching / Chemical Machining,

Laser Machining, Milling, Other Machining Services, Turning,

Wire EDM, Rapid Prototyping

Material Capabilities Titanium
Micro Machining or Not Not Micro Machining
Place of Origin China
  ShaanXi
Model Number LH-2021-02-03
Brand Name LHTi
Material Titanium
Size Customized Size





Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n

Σb

(Mpa)

σr0.2

(Mpa)

No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa
Grade 1 0.2 0.18 0.03 0.1 0.015           24 240 140
Grade 2 0.3 0.25 0.03 0.1 0.015           20 400 275
Grade 5 0.4 0.2 0.05 0.1 0.015   5.5-6.7 3.5-4.5     10 895 828
Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25         20 400 275
Grade 12 0.3 0.25 0.03 0.1 0.015       0.3 0.8 18 460 300





Detailed images:

 ASME B381 Titanium Equipment Titanium Exchanger Tube Sheet CNC Machining 0ASME B381 Titanium Equipment Titanium Exchanger Tube Sheet CNC Machining 1ASME B381 Titanium Equipment Titanium Exchanger Tube Sheet CNC Machining 2ASME B381 Titanium Equipment Titanium Exchanger Tube Sheet CNC Machining 3





According to the different environment, people need to use different materials tubesheet, generally use Q345R container plate, such as first and second pressure vessels, no corrosive medium flow, the use of carbon steel composite plate. In the case of strong acid, high pressure and high temperature, nuclear energy and other environments, stainless steel, 16 manganese, titanium alloy and other corrosion-resistant materials are needed. The application of new synthetic materials brings new vitality to tube-sheet products.





Titanium tubesheet used in heat exchanger:

 ASME B381 Titanium Equipment Titanium Exchanger Tube Sheet CNC Machining 4ASME B381 Titanium Equipment Titanium Exchanger Tube Sheet CNC Machining 5
