Anti Corrosion Titanium Shell Tube Heat Exchanger For Solar Heaters

Product Details

Place of Origin: China

Brand Name: LHTi

Certification: ISO9001:2015

Model Number: LH-Ti10

Payment & Shipping Terms

Minimum Order Quantity: 1 pieces

Price: US dollar $2000piece--US dollar $130,000/piece

Packaging Details: Standard export packing,plywood case outside

Delivery Time: 20-30 working days

Payment Terms: L/C,D/P, T/T etc.

Supply Ability: 2000-5000 pieces per month

Get Best Price
Highlight:

R404a Refrigerant Titanium Heat Exchanger

,

ASME Titanium Shell Tube Heat Exchanger

,

SS316L Shell Titanium Heat Exchanger

Product Name:
Titanium Heat Exchanger
Assembly Parts:
Tube Bundle, Shell, Dish Head, Heat Exchange Tube, Etc
Tube Material:
Titanium
Tube Plate Material:
Titanium Steel Composite
Shell Side Material:
Titanium/Stainless Steel
Shell Material:
Titanium/Stainless Steel
Sasteners Material:
Titanium/Stainless Steel
Advantages:
Corrosion Resistant,Simple Structure And Low Cost
Dimension(L*W*H):
Customized
Applications:
High Temperature And Pressure Corrode Fluids,seawater,saltwater,brine Water Etc.
Warranty:
1 Year
System:
Single /double/Triple System
Product Name:
Titanium Heat Exchanger
Assembly Parts:
Tube Bundle, Shell, Dish Head, Heat Exchange Tube, Etc
Tube Material:
Titanium
Tube Plate Material:
Titanium Steel Composite
Shell Side Material:
Titanium/Stainless Steel
Shell Material:
Titanium/Stainless Steel
Sasteners Material:
Titanium/Stainless Steel
Advantages:
Corrosion Resistant,Simple Structure And Low Cost
Dimension(L*W*H):
Customized
Applications:
High Temperature And Pressure Corrode Fluids,seawater,saltwater,brine Water Etc.
Warranty:
1 Year
System:
Single /double/Triple System
Anti Corrosion Titanium Shell Tube Heat Exchanger For Solar Heaters

High temperature resistance and corrosion resistance shell titanium heat exchanger





Because of environmental pollution, the water quality is getting worse and worse, the traditional copper heat exchanger corrosion speed is very fast.

Titanium has superior corrosion resistance. Our titanium heat exchangers use seamless pure titanium tubes as heat conductors, which can ensure that the titanium heat exchangers can be used for a long time without any cost in the after-sales service.

Due to their excellent performance, titanium heat exchangers are widely used in:
Swimming pool equipment, aquarium chillers, Marine refrigeration systems, solar heaters, aquaculture, pharmaceutical, food industry, electroplating industry and part of the heat recovered from waste water or exhaust gas.

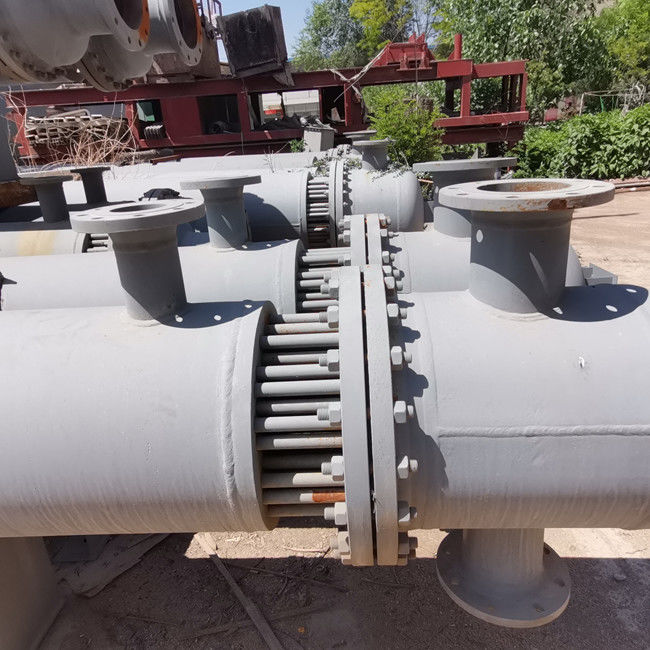

Anti Corrosion Titanium Shell Tube Heat Exchanger For Solar Heaters 0



1) Refrigerant side (in tubes) : R22, R134a, R407c, R404a, R410a, R600a, etc.



2) Water side (between shells) : natural water, groundwater, seawater and other corrosive solutions.



Material:



1) Heat transfer tube: pure titanium seamless tube, thickness 0.55mm



2) Shell: stainless steel 304 or 316L, thickness 1.0mm~1.2mm



Features:



1) Application: Can be used in condenser and evaporator, usually used in high temperature heat pumps, spa heaters, swimming pool thermostat, or heating/cooling some corrosive solutions.



2) Pure titanium seamless steel pipe has super corrosion resistance and mechanical strength. Don't worry about it being damaged by poor working conditions.



3) The seamless titanium tube has undergone two 50bar pressure nitrogen tests before leaving the factory. Make sure piping is firm and free of leaks.



4) The housing is 304 or 316L stainless steel, so it can be used in high-temperature solutions (the stainless steel housing can withstand 120 ° C, but the PVC housing can withstand up to 45 ° C). In addition, the housing is hydrostatic tested at 10 bar to ensure that the water system does not leak.



Notice: We can produce any material and capacity heat exchagers according customer requirement and design.





Detailed images:

Anti Corrosion Titanium Shell Tube Heat Exchanger For Solar Heaters 1Anti Corrosion Titanium Shell Tube Heat Exchanger For Solar Heaters 2 Anti Corrosion Titanium Shell Tube Heat Exchanger For Solar Heaters 3





The shell and tube exchanger is a kind of heat exchanger that widely applied for chemical and alcohol production. It is mainly composed of the shell, tube sheet, heat exchanging tube, sealing head, baffle plate, ect. It can be made of stainless steel, duplex stainless steel ,Titanium (Ti) ... During the heat exchanger, a king of fluid enters from the tube connection of the sealing head, flows in the tube and exits from the other tube connection of the shell and exits from the other tube connection of the shell, which is called shell pass.



Shell and tube heat exchanger belongs to petrochemical equipment, is composed of a tube box, a shell and a tube bundle, and so on. The U shaped tube heat exchanger has only one tube plate, and both ends of the pipe are fixed on the same pipe plate. In addition, in order to make up for the reduction of the pipe wall of the elbow, the straight pipe part of the wall thickness of the pipe. This affected the use of the occasion, it is only suitable for pipe shell wall temperature difference is larger, or the shell side of the medium is easy to scale and the pipe is clean and not easy to scale, high temperature, high pressure, corrosion of the situation.


The shell and tube exchanger can be on-standard customized made and our products will follow international certifications, such as ASME,GB,CE,ISO ect.

Anti Corrosion Titanium Shell Tube Heat Exchanger For Solar Heaters 4

Q: Are you a manufacturer or a trader?
We're a manufacturer with more than 15 years professional production experience.

Q: Can you accept OEM?
Yes, OEM is acceptable. Just pls provide us the drawing or sample.

We will production totally according to your required.

Q: Can you provide us the design drawing?
Yeah, of course, we will provide you the drawing after you payment or prepaid.

Q: Can your factory produce products according to our drawings?
Yes, we can. Most products can be customized, including the Logo on products.

Q: What kind of your packaging ?
Neutral plywood or wooden box packaging or according to customer’s requirements.

Q: How long is your delivery time?
Normally 30days after payment, and we promise we will delivery as soon as we can.
