Product Details
Place of Origin: Baoji City Shaanxi Province China
Brand Name: LHTi
Certification: ISO9001
Model Number: LHTI-041
Payment & Shipping Terms
Minimum Order Quantity: 100kg
Price: USD35-45 per kg
Packaging Details: 5kg put into plastic tube inside and plywood case outside Or as the clients' request
Delivery Time: 7-30work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5Ton per month
Standard: |
AWS 5.16 |
Surface: |
Pickling Surface/bright Surface |
Application: |
GTAW |
Type: |
Straight / Spool / Coil |
Certificate: |
ISO9001:2015 |
Technique: |
Cold Rolling |
Grade: |
Gr12 (Ti-0.3Mo-0.8Ni) |
Advantage: |
Hot Resistance |
Standard: |
AWS 5.16 |
Surface: |
Pickling Surface/bright Surface |
Application: |
GTAW |
Type: |
Straight / Spool / Coil |
Certificate: |
ISO9001:2015 |
Technique: |
Cold Rolling |
Grade: |
Gr12 (Ti-0.3Mo-0.8Ni) |
Advantage: |
Hot Resistance |
Titanium AWS 5.16 Gr12(Ti-0.3Mo-0.8Ni) ERTi-12 alloy welding Wire for GTAW
1. Product description
Product name: Titanium grade 12 ErTi-12 welding wire
Standard : AWS a5.16 , ASME SFA 5.16
Grade : Gr12 (Ti-0.3Mo-0.8Ni)
Diameter : 1.0mm 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm etc.
Shape : Coil,spool,straight.
Surface : Pickling surface/bright surface
Application : Welding
2. ERTi-12 Titanium wire parameter information
Grade Contrast
| China | America | Russia | Japan | |
| TA1 |
Industrially Pure Titanium |
GR1 | BT1-00 | TP270 |
| TA2 | GR2 | BT1-0 | TP340 | |
| TA3 | GR3 | TP450 | ||
| TA4 | GR4 | TP550 | ||
| TA8 | Ti-0.05Pd | GR16 | ||
| TA9 | Ti-0.2Pd | GR7 | TP340Pb | |
| TA10 | Ti-0.3Mo-0.8Ni | GR12 | ||
| TA18 | Ti-3Al-2.5V | GR9 | 0T4-1B | TAP3250 |
| TB5 | Ti-15V-3Al-3Gr-3Sn | Ti-15333 | ||
| TC4 | Ti-6Al-4V | GR5 | BT6 |
TAP6400 |
| Common Titanium Wires Tolerance | |||
| Diameter | 0.1-0.3mm | 0.3-0.8mm | 0.8-2.0mm |
| Tolerance | +/- 0.025 | +/-0.04 | +/-0.05 |
| Length | 200-500mm | 500-1000mm | 1000-2000mm |
| Tolerance | +/-1.0 | +/-1.5 | +/-2. |
| Titanium Grade 12 (Ti-0.3Mo-0.8Ni ) welding wire | ||||
| Chemical compositions(weight%,<=) | ||||
| Mo | Ni | V | Fe | C |
| 0.3 | 0.8 | ---- | 0.047 | 0.03 |
| N | H | O | Other(total) | Ti |
| 0.009 | 0.002 | 0.117 | 0.4 | Remainder |
| Physical properties(>=) | ||||
|
Σb Tensile Strength (Mpa) |
σr0.2 Yield Strength (Mpa) |
δL0+50mm Elongation (%) |
ψ Reduction of area (%) |
|
| 508 | 378 | 18 | 25 |
3. Details picture

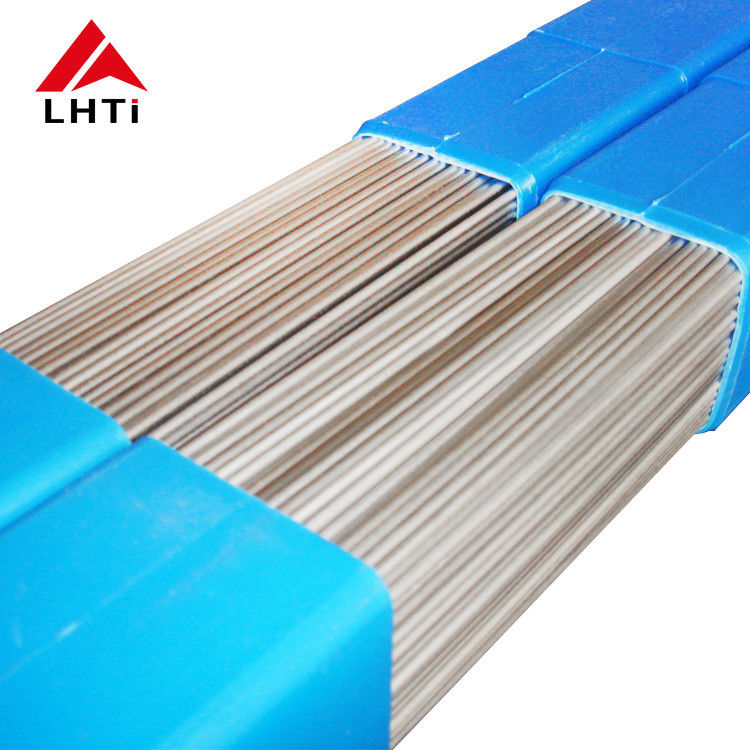

Titanium AWS 5.16 Gr12 (Ti-0.3Mo-0.8Ni) ERTi-12 alloy welding Filler Rod for MIG GTAW
There are two surface : Acid washed and polished
| AWS | Chemical specifications | ||||||||
| AWS A5.16 |
UNS Number |
C | O | N | H | I | Al | V | Pd |
| ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
| ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
| ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
| ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
| ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
4. Company Information
Titanium AWS 5.16 Gr12 (Ti-0.3Mo-0.8Ni) ERTi-12 alloy welding Filler Rod for MIG GTAW
5. Quality Assurance
1. Titanium wire is manufactured by globally recognized standards, such as ASMT B863,AWS A5.16.
2. Factory will do quality testes for each batch titanium wire: Mechanical properties,chemical composition,Microstructure
3. The Third Party Quality Test is available: SGS,BV,TUV
6. FAQ
1. Any discount?
A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.
2. Are you a manufacturer?
A: Yes. As a manufacturer with 15 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.
3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.
4. Has your company acquired any certificate?
A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.
5. How about the quality of the products?
A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.
6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.
7. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
8. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.
9. If you have additional questions, please feel free to contact us.
