Product Details
Place of Origin: China
Brand Name: LHTi
Certification: ISO9001-2015
Model Number: tube
Payment & Shipping Terms
Minimum Order Quantity: 100kg
Price: $20--$28/pcs
Packaging Details: Sponge wrap or plastic bag inside, plywood case as outside,
Delivery Time: 15 workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5Ton per month
Grade: |
Gr2 |
Outer Diameter: |
OD25mm OD38mm |
Application: |
Industrial,Chemical |
Material: |
GR1.GR2 |
Standard: |
ASTM B338 |
Length: |
<6000mm,6000mm Or According To Client's Requirement |
Grade: |
Gr2 |
Outer Diameter: |
OD25mm OD38mm |
Application: |
Industrial,Chemical |
Material: |
GR1.GR2 |
Standard: |
ASTM B338 |
Length: |
<6000mm,6000mm Or According To Client's Requirement |

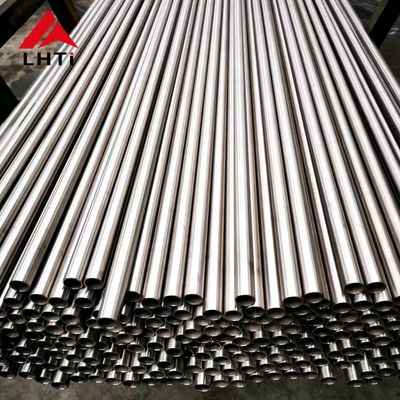

titanium tube ASME SB338 1inch OD25mm OD25.4mm titanium tube price per kg
1. SB338 Titanium tube specification
Product name: Gr2 titanium tube
Material: Titanium Gr2
Standard :ASTM B338 .
size: 12.7mm 19.1mm 25.4mm 31.75mm 38.1mm 45mm , or as customer's request
OD19mmxWT0.5-0.8mmx3000-12000mm
OD25mmxWT1.0-1.2mmx3000-12000mm
OD32mmxWT1.0-1.2mmx3000-6000mm
OD38mmxWT1.0-1.2mmx3000-6000mm
Or according customer’s requirement.
Or according customer’s requirement.
Status: Annealed(M)
Type:Seamless,welded
Certification: ISO9001:2015, EN10204.3.1
Seamless Titanium alloy Tube for heat exchanger, Titanium welded tube OD25mm
titanium coil tube Welded Titanium Tube,
2. Titanium tube tolerance
|
Titanium tube diametere tolerance(mm)
|
||||||
| OD | 3-10 | >10-30 | >30-50 | >50-80 | >80-100 | >100 |
| Tolerance | ±0.15 | ±0.30 | ±0.50 | ±0.65 | ±0.75 | ± |
|
Length of titanium tube(mm)
|
||||
| Titanium seamless tube | OD | ≤15 | Random length | 500~400 |
| 15 | 500~900 | |||
| Titanium welded tube | WT | 0.5~1.25 | 500~1500 | |
| 1.25~2.0 | 500~6000 | |||
| Titanium welded tube(rolled) | WT | 2.0~2.5 | 500~4000 | |
| 0.5~0.8 | 500~8000 | |||
| >0.8~2.0 | 500~5000 | |||
2 . Details picture
Applied field of different grade titanium:
Titanium in grade 1 and 2 is used in the chemical industry and marine technology,because of its resistance to corrosion.In addition, titanium grade 1/2 is also used in plant engineering, medical technology and in the watch and jewelery industries.
Titanium grade 5 is widely used in aviation industry and machinery industry, automobile industry--It has better physical properties and hardness than pure titanium.
Titanium Grade 7 is preferably used in chemical plants.Due to the high palladium content, Titanium Grade 7 is very resistant to corrosion. Thus, for example, titanium grade 7 is resistant to salt water and iSuitable for handling chlorides media. In addition, Titanium Grade 7 is resistant to erosion or impact.
Titanium Grade 12 alloy is similar to Titanium Grades 2 and 3 except that Titanium Grade 12 has 0.3% molybdenum and 0.8% nickel. This offers enhanced corrosion resistance.
Gr16 Medium-strength titanium plus 0.04-0.08% Pd for enhanced corrosion properties Titanium tube grades (other grades are available on request).
3. Production process
4. ASME SB388 Test as below
We provide following tests for Ti seamless and welded tubes
| Chemical Composition | Visual Inspect | Ultrasonic Testing | Current Testing |
| Flattening Testing | Flattening Testing | Pneumatic Test | Hydrostatic Test |
| Tensile | Yield | Hardness | Elongation |
5. Feel free to contact us titanium tube 338 supplier
