Home > products > Weld Neck Flange > Flat Face Weld Neck Flange , Forged Chemical Industry Titanium Flange

Flat Face Weld Neck Flange , Forged Chemical Industry Titanium Flange

Product Details

Place of Origin: Baoji City Shaanxi Province

Brand Name: LHTi

Certification: ISO9001

Model Number: LHTI-038

Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: USD8-75 per pc

Packaging Details: Standard foreigh packing, plastic inside and plywood case outside Or as the clients' request

Delivery Time: 7-30work days

Payment Terms: Western Union, T/T,, L/C

Supply Ability: 5Ton per month

Get Best Price
Highlight:

weld neck pipe flanges

,

titanium gr 2 flanges

Grade:
Gr1, Gr2, Gr5, Gr9
Stype:
ANSI, DIN, ISO, JIS, ASME, ASME B16.47 ANSI B16.5
Surface:
FF, RF, TG, RJ, Etc
Standard:
ANSI, DIN, JIS, ASME
Pressure Rating:
0.6~32MPA
Package:
Plywood Case Line With Foam Or As Per Clients Request
Payment:
Alibaba Trade Assurance, TT, Western Union Etc
Application:
Industry
Grade:
Gr1, Gr2, Gr5, Gr9
Stype:
ANSI, DIN, ISO, JIS, ASME, ASME B16.47 ANSI B16.5
Surface:
FF, RF, TG, RJ, Etc
Standard:
ANSI, DIN, JIS, ASME
Pressure Rating:
0.6~32MPA
Package:
Plywood Case Line With Foam Or As Per Clients Request
Payment:
Alibaba Trade Assurance, TT, Western Union Etc
Application:
Industry
Flat Face Weld Neck Flange , Forged Chemical Industry Titanium Flange

High Pressure Forged Flat Welding Neck Titanium Flange Large Diameter 800mm 1000mm





1. Product parameters





Products Titanium Flange
Material Grade Gr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9, Gr23, TI-6Al4v, Ti6Al4V Eli
Certification ISO9001:2008
Standard ANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
size 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure Clase PN0.25~32Mpa
  (DIN) PN6,PN10,PN16,PN25 though PN250
  150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB
Technique Forged and CNC Machined
type WNRF, SORF, BLIND, SW, PL
Flange surface FF,RF,TG,RJ etc
Application used in cars, glasses, medical equipment, electronics, petrochemical equipment
Advantage 1. Long service life
  2. corrosion-resistant
  3.hign yelled strength and tensile strength.







.png







2. Detail images

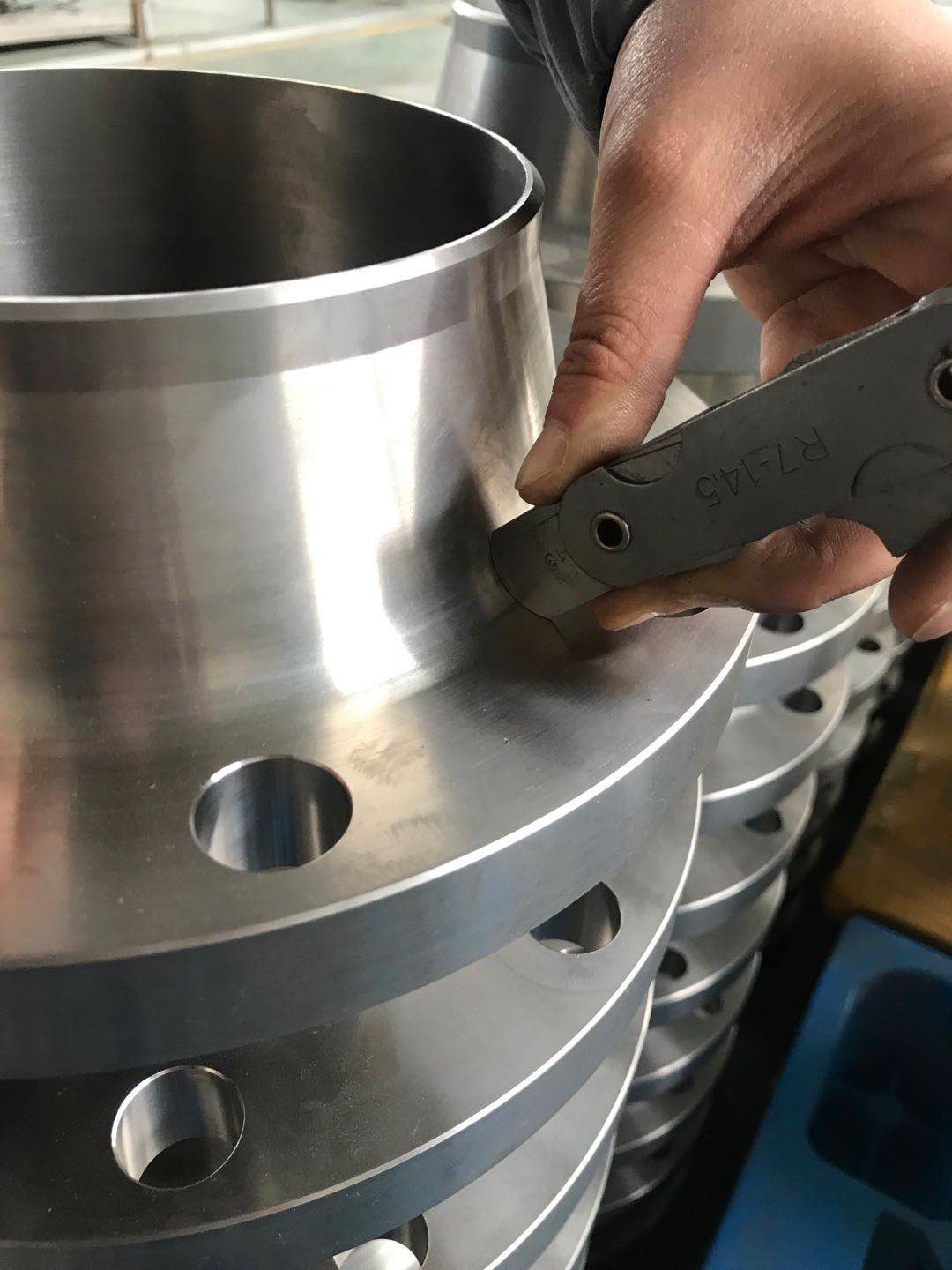

Flat Face Weld Neck Flange , Forged Chemical Industry Titanium Flange 1



3. Available Dimensions



OD ( mm) I D ( mm) HEIGHT ( mm)
200-400 100-300 35-120
400-700 150-500 40-160
700-900 300-700 50-480
900-1300 400-900

70-250





Flat Face Weld Neck Flange , Forged Chemical Industry Titanium Flange 2



Baoji Lihua Group



As a leading manufacturer of titanium products for over 17 years, we supply a series of high-performance products for titanium products, including titanium flange, titanium bar, and titanium wire, etc.

If you'd like to know more about our products, please feel free to contact me.
Your early reply will be highly appreciated.

4. Flange introduction

Titanium flange Type(Seamless&welded): Elbow(45,90,180),LR(Long Radius),SR(Short Radius),Slip-on Flange(SOF)
Lap Joint Flange(LJW), Blind Flange, Socket Welding Flange (SWF)
Threaded Flange(THW), Plate Flange.

Titanium flange Standard: ASME B16.9,ASME B16.28,Din2615,Din 2616,Din2617,BS4504.
Material: Titanium(WPT1,WPT2, WPT7,WPT12,)

Titanium flange Special Material (C276,Inconel 625/600/601,Monel 400,Incoloy 800H/825,Ni200/201,B10,B30 etc.
Titanium flange Size: NPS 1/2" to 48"(DN15 TO DN1200).
Titanium flange Thickness: Sch 5 to Sch160(1.5 to 60mm), NPS 26" to 48".
Titanium flange Production Art: Cold Forming(Extrusion &Push).
Titanium flange Surface: Sandblast or Pickling.
Non-standard Buttwelded Pipefittings can be made as per customer's drawing.


Titanium flange Forged Pipe fittings & Titanium flange Socket Welding Pipe fittings

Titanium flange Type(Seamless&welded): Elbow(45,90) Threaded or Socket-welding,
Tee(Equal & Reducing) Threaded or Socket-welding
Cross(Equal & Reducing) Threaded or Socket-welding
Coupling(Full & Half) Threaded or Socket-welding
Nipple(Hex) Threaded,Caps.

Titanium flange Standard: ASME B16.11, Din2605.
Material: Titanium(WPT1,WPT2, WPT7,WPT12,)

Titanium flange Special Material (C276,Inconel 625/600/601,Monel 400,Incoloy 800H/825,Ni200/201,B10,B30 etc.
Titanium flange Size: NPS 1/8" to 4"(DN6 TO DN100),NPS 26" to 48".
Titanium flange Pressure ratings: Class 2000LB,Class 3000LB,Class 6000LB,Class 9000LB.
Production Art: Forging + Model forming +Precision Machining.

Titanium flange Surface: Sand blast , Machined, Pickling.
Non-standard Forged & Socket Welding Pipefittings can be made as per customer's drawing.



9. If you have additional questions, please feel free to contact us as follows:





Flat Face Weld Neck Flange , Forged Chemical Industry Titanium Flange 3
