Home > products > Titanium Sheet > High Performance ASTM B265 Ti-0.2Pd Gr7 Titanium Alloy Sheet Foil

High Performance ASTM B265 Ti-0.2Pd Gr7 Titanium Alloy Sheet Foil

Product Details

Place of Origin: China

Brand Name: LH

Certification: ISO9001:2015

Model Number: LHTB

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Price: USD$100-$180/kg

Packaging Details: Standard export packing

Delivery Time: 5-20 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50000 kgs per month

Get Best Price
Highlight:

thin titanium sheet

,

forming titanium sheet

Product Name:
Gr7 Titanium Alloy Sheet
Material:
Titanium
Thickness:
0.5-100mm
Width:
10-1000mm
Standard:
ASTM B265
Application:
Industry
Length:
As Your Require
Surface:
Pickling, Polishing, Sand Blasting
Product Name:
Gr7 Titanium Alloy Sheet
Material:
Titanium
Thickness:
0.5-100mm
Width:
10-1000mm
Standard:
ASTM B265
Application:
Industry
Length:
As Your Require
Surface:
Pickling, Polishing, Sand Blasting
High Performance ASTM B265 Ti-0.2Pd Gr7 Titanium Alloy Sheet Foil

High-Performance ASTM B265 Ti-0.2Pd Gr7 Titanium Alloy Sheet Foil

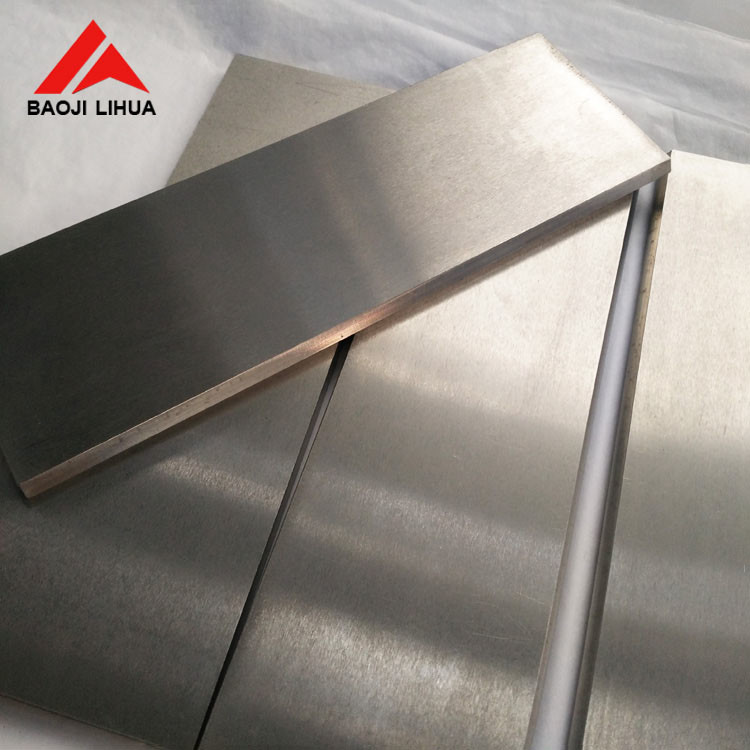

High Performance ASTM B265 Ti-0.2Pd Gr7 Titanium Alloy Sheet Foil 0



Gr7 is an alpha titanium alloy, and its process performance and mechanical properties are similar to industrial pure titanium. When the amount of Pd added to titanium reaches 0.1% -0.2%, the corrosion rate of titanium in sulfuric acid and hydrochloric acid is significantly reduced, further increasing the content of Pd, the corrosion rate of the alloy is almost unchanged, and when the Pd content is less than 0.05% Instead, the corrosion rate increases. When the acid concentration is low, the titanium-palladium alloy containing 0.13% Pd has satisfactory corrosion resistance, but when the acid concentration is high, Ti-0.2Pd has better corrosion resistance, so Ti-0.2Pd is more As appropriate.



1. Chemical requirements

  N C H Fe O Al V Pd Mo Ni Ti
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal





2. Tensile requirements

Grade Tensile strength(min) Yield strength(min) Elongation(%)
ksi M Pa ksi M Pa
7 50 345 40 275 20





3. Specification



Specification of Titanium foil/Titanium sheet/Titanium plate
  Thickness(mm) Width(mm) Length(mm)
Titanium foil 0.03-0.5 30-150 30-200
Titanium sheet 0.5-5 30-1000 30-2000
Titanium plate 5-60 200-2800 1000-6000








4.Good performance



High-quality Titanium sheet has low density, lightweight, high strength, also has good corrosion resistance,high-temperature resistance,low-temperature resistance, acid resistance, alkali resistance and so on.





High Performance ASTM B265 Ti-0.2Pd Gr7 Titanium Alloy Sheet Foil 1







High Performance ASTM B265 Ti-0.2Pd Gr7 Titanium Alloy Sheet Foil 2

High Performance ASTM B265 Ti-0.2Pd Gr7 Titanium Alloy Sheet Foil 3



Baoji Lihua Non-ferrous Metals Co., Ltd

High Performance ASTM B265 Ti-0.2Pd Gr7 Titanium Alloy Sheet Foil 4
