Product Details
Place of Origin: BaoJi Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-01
Payment & Shipping Terms
Minimum Order Quantity: 1kg of each size
Price: US dollar $23/kg-US dollar $31/kg
Packaging Details: Each tube with environmental protection bags,outside is standard plywood case
Delivery Time: 15 working days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Key Words 1: |
ASTM SB861 Titanium Tube |
Key Words 2: |
GR2 Titanium Seamless Tube |
Key Words 3: |
Gr2 Gr7 Titanium Tube |
Material: |
Pure Titanium |
Grade: |
Grade 2 / Grade 7 |
Purity: |
99.0%min |
Length: |
Max 12 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |
Key Words 1: |
ASTM SB861 Titanium Tube |
Key Words 2: |
GR2 Titanium Seamless Tube |
Key Words 3: |
Gr2 Gr7 Titanium Tube |
Material: |
Pure Titanium |
Grade: |
Grade 2 / Grade 7 |
Purity: |
99.0%min |
Length: |
Max 12 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |

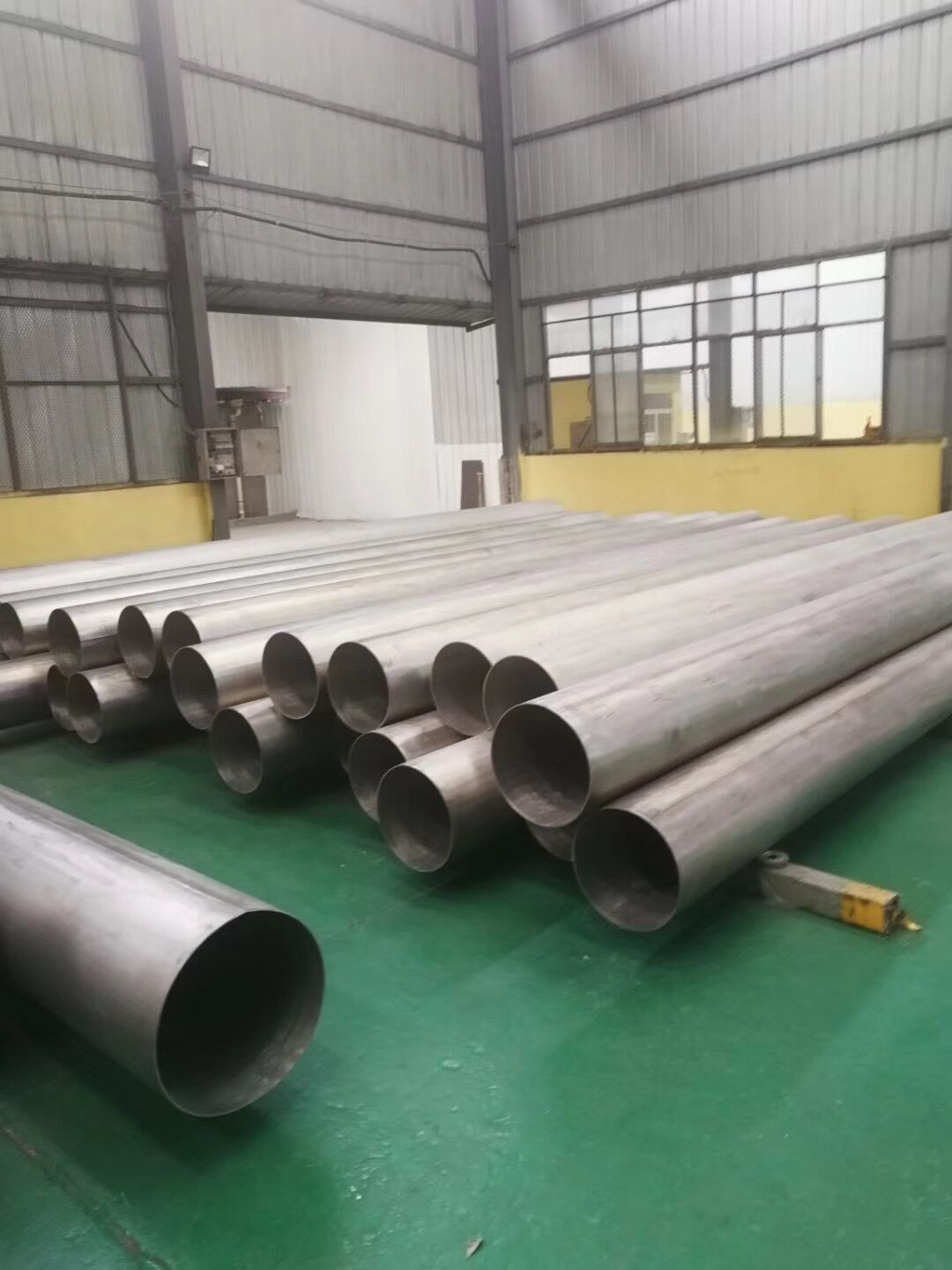

High Quality ASTM B861 Gr2 Gr7 Titanium Seamless Tube For Chemcial Industry
Titanium tubes have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes.
1.titanium tube information
| Name | Titanium Tube |
| Tube Shape | Round Seamless Tube |
| Material | Gr2,Gr7 |
| Standard | ASTM B861 |
| Type |
Seamless |
| OD | 31.8mm |
| Wall Thickness | 1.2mm or as customized |
| Length | Max 12 meter |
| End | Plain End, Beveled End, Threaded |
| Certificate | EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report---TUV,BV,SGS etc |
| Application |
Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry |
| Titanium welded pipe for heat exchanger equipments Titanium welded pipe for chemial and Oil industry |
ASTM B338, ASTM B862 |
Gr1 GR2 GR7 GR12 | OD (10.3~914) = (1/8~36)Inch WT (0.5~30.96) = (0.049~1.219) Inch Length as your requirment |
||||
| Titanium seamless tube (heat exchanger ) |
ASTM B338, ASTM B337, ASTM B861 |
GR1 GR2 GR3 GR5 GR6 GR7 GR9 GR12 etc | OD (1.5~420) × WT (0.3~16 ) × Length 18000 mm |
||||
2.Chemical Composition
| Element | N | C | H | Fe | O | Al | V | Mo | Ni | Pd | Ti |
| Type | |||||||||||
| GR.1 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.2 | ≤0.18 | Residual | |||||
| GR.2 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | Residual | |||||
| GR.3 | ≤0.05 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.35 | Residual | |||||
| GR.7 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | 0.12-0.25 | Residual | ||||
| GR.9 | ≤0.02 | ≤0.08 | ≤0.015 | ≤0.25 | ≤0.15 | 2.5-3.3 | 2.0-3.0 | Residual | |||
| GR.12 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | 0.2-0.4 | 0.6-0.9 |
Residual |
3.Titanium Tube Size List
| OD (mm) | WT (mm) | OD (mm) | WT (mm) | OD (mm) | WT (mm) |
| 3.3 | 0.25 | 24 | 0.7 | 33.4 | 4.55 |
| 4 | 0.25 | 25 | 0.5 | 38 | 1.2 |
| 4.9 | 0.3 | 25 | 0.7 | 38.1 | 1.24 |
| 6.35 | 0.889 | 25 | 1.5 | 40 | 0.5 |
| 12.7 | 0.8 | 25 | 2 | 45 | 1.5 |
| 15.88 | 0.5 | 25 | 2.2 | 45 | 2 |
| 15.88 | 0.71 | 25.4 | 0.89 | 48.26 | 1.65 |
| 19 | 0.508 | 25.4 | 1.07 | 48.3 | 5.08 |
| 19 | 0.711 | 25.4 | 1.473 | 50.8 | 0.7 |
| 19 | 0.9 | 25.4 | 2.108 | 50.8 | 0.889 |
| 19 | 1.24 | 26.67 | 2.11 | 50.8 | 0.9 |
| 19.05 | 0.56 | 26.67 | 3.912 | 51 | 1.5 |
| 19.05 | 0.9 | 31.75 | 0.7112 | 56 | 0.8 |
| 19.05 | 1.24 | 31.75 | 0.889 | 60.3 | 1.5 |
| 19.05 | 1.65 | 31.75 | 1 | 60.325 | 0.889 |
| 19.05 | 3 | 31.8 | 0.89 | 62 | 2 |
| 21.34 | 2.11 | 33.4 | 2.77 | 89 | 2 |
| 24 | 0.5 | 33.4 | 3.38 | 114.3 | 3.05 |
4.Titanium tube Process
5.Titanium Tube Test
We can provide ASTM B861 Titanium Alloy Seamless Pipe Mill Test Certificate as per EN10204 as per 3.1
Testing items for titanium tube and titanium pipe:
Chemical composition and mechanical properties
Bending, flaring, flattening, hydraulic, eddy current, ultrasonic (against different specification or specific requirement by customer)
Titanium tubes have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes.
Application:
Chemical processing industrials (Pure titanium Gr1 or Gr2 Plate or tube)
Heat exchanger(Pure titanium Gr.1 or Gr2 Welded tube)
Plate heat exchanger (Pure titanium Gr.1 or Gr.2 Plate)
Tubing heat exchanger (Pure titanium Gr.1 or Gr2 Welded tube)
Condensers all kinds of corrosive fluid transmission pipeline systems
Titanium bicycle frame
Automobile exhaust pipes
Offshore aquaculture, etc.
