Home > products > Titanium Bolts Nuts > DIN 934 Hex Titanium Bolts Nuts , DIN 938 Gr2 Titanium Stud Bolt M14 M18 M20

DIN 934 Hex Titanium Bolts Nuts , DIN 938 Gr2 Titanium Stud Bolt M14 M18 M20

Product Details

Place of Origin: Baoji , Shaanxi , China

Brand Name: LHTi

Certification: ISO9001:2015; SGS; TUV; BV

Model Number: Titanium stud bolts

Payment & Shipping Terms

Minimum Order Quantity: 200 PCS

Price: USD $ 0.5-3.5per pc

Packaging Details: Small quantity: pp bags inside,carton box outside packing. More than 10kgs: pp bags inside, Plywood case outside packing

Delivery Time: 15-20 working days

Payment Terms: T/T, Western Union, L/C, D/A, D/P

Supply Ability: 1000k piece per month

Get Best Price
Highlight:

titanium hex bolt

,

titanium flange bolt

Standard:
DIN938 DIN939
Material:
Titanium Gr2
Size:
M3-M36
Length:
As Customers' Request
MOQ:
200 PCS
Technique:
CNC Machined, Forged
Application:
Chemical Industry, Machinery,aerospace, Electroplating Etc
Standard:
DIN938 DIN939
Material:
Titanium Gr2
Size:
M3-M36
Length:
As Customers' Request
MOQ:
200 PCS
Technique:
CNC Machined, Forged
Application:
Chemical Industry, Machinery,aerospace, Electroplating Etc
DIN 934 Hex Titanium Bolts Nuts , DIN 938 Gr2 Titanium Stud Bolt M14 M18 M20

DIN 938 Gr2 titanium stud bolts with DIN 934 hex nuts M8 M10 M12 M14 M18 M20



Pure titanium has extremely high corrosion resistance in most media, especially in neutral, oxidizing

and seawater media. The corrosion resistance in seawater is higher than that of aluminum alloys,

stainless steels and nickel-based alloys.So it has been used in the industrial, agricultural environment

and marine atmosphere for several years, and the surface has not changed.

Titanium is highly stable in various concentrations of nitric acid and chromic acid, and it is also very

resistant to corrosion in alkaline solutions and most organic acids and compounds.





Item Name

DIN938  Titanium stud bolt with  DIN 934 hex head  nuts

Material

Pure Titanium

Grade

Gr2

Standard

DIN938 DIN 934

Surface Treatment

Forged or CNC machined

Color

Ti natural

Applications

Chemical Industry
Certificate ISO 9001:2015, EN 10204/3.1
Features

1. Not easy to rust;

2. Resistance to acid and alkali corrosion;

3. Light weight;

4. Has a long service life, widely used in aerospace, electroplating, chemical industry, machinery, etc.

















































DIN 934 Hex Titanium Bolts Nuts , DIN 938 Gr2 Titanium Stud Bolt M14 M18 M20 0

Chemical composition (Wt%)

 Grade Fe max O max N max C max H max Pd Al Bal
Gr2 0.3 0.25 0.03 0.1 0.015 - - Ti



Physical Properties (Min)

 Grade Alloy  Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Gr2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25





Detailed pictures:

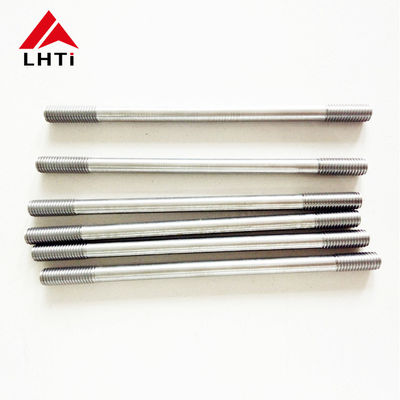

DIN 934 Hex Titanium Bolts Nuts , DIN 938 Gr2 Titanium Stud Bolt M14 M18 M20 1

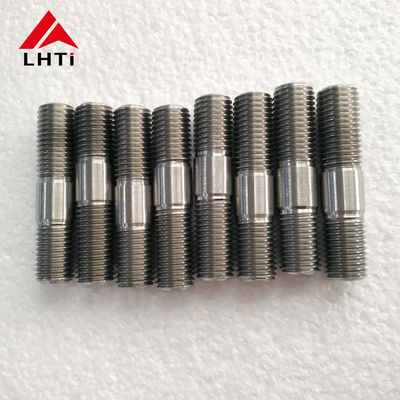

DIN 934 Hex Titanium Bolts Nuts , DIN 938 Gr2 Titanium Stud Bolt M14 M18 M20 2







Production process of titanium bolts/ screws:

Processing titanium bolts.jpg
