Home > products > Weld Neck Flange > Gr2 Titanium Weld Neck Flanges Gr5 Titanium Pipe Fitting 2" Sch.20s Class 300

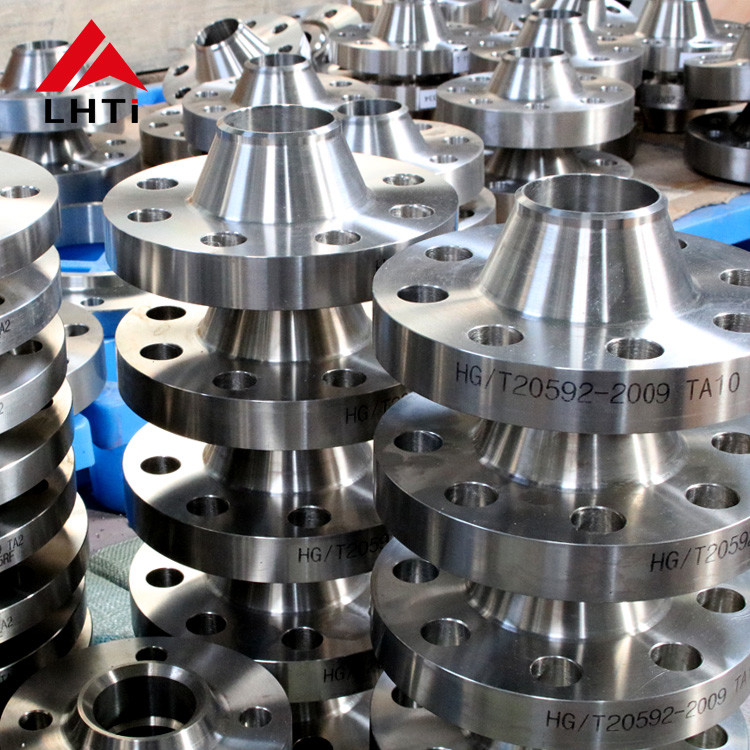

Gr2 Titanium Weld Neck Flanges Gr5 Titanium Pipe Fitting 2" Sch.20s Class 300

Product Details

Place of Origin: China , Shaanxi , Baoji(The titanium valley of China)

Brand Name: LHTi

Certification: ISO9001:2015

Model Number: WN

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: $35 / pc

Packaging Details: Standard exporting packing: protecting foam and EPE inside and plywood case outside.

Delivery Time: 10-15 days

Payment Terms: L/C, T/T, D/P,D/A,Western Union

Supply Ability: 100000 pcs per month

Get Best Price
Highlight:

weld neck pipe flanges

,

wn rf flange

Material:
Titanium Gr2 Gr5 Gr7
Type:
WN (weld Neck Flange)
Standard:
ASME/ASTM B16.5
Class:
CL300
Size:
2" Sch.20s
Quality Test:
UT,PT Etc.
MOQ:
1PC
The Third Party Test:
TUV,SGS,BV Etc.
Material:
Titanium Gr2 Gr5 Gr7
Type:
WN (weld Neck Flange)
Standard:
ASME/ASTM B16.5
Class:
CL300
Size:
2" Sch.20s
Quality Test:
UT,PT Etc.
MOQ:
1PC
The Third Party Test:
TUV,SGS,BV Etc.
Gr2 Titanium Weld Neck Flanges Gr5 Titanium Pipe Fitting 2" Sch.20s Class 300

Asme B16.5 Pipe Fitting Gr2 Gr5 Gr7 Titanium weld neck Flanges 2" sch.20s Class 300



1. Product name: titanium weld neck flange
2. Manufacturing technique: 2 timesVacuum smelting, 3 times titanium ingots .
3. Forging process: 1 ton of air forging air hammer forging blanks, machining finished products.
4. Quality Test: a. Ultrasonic inspection,Eddy current detection

                          b. Flaws inspection: such as cracks, slag inclusions, pores, etc.
5. Standard: ASME/ASTM B16.5

6.Flange types:WNRF,SORF,BLIND,SW,PL

7.The drawing of WN flange:

Gr2 Titanium Weld Neck Flanges Gr5 Titanium Pipe Fitting 2" Sch.20s Class 300 0



8.The connection way of flange:

A. The flange, gasket and bolt are connected to each other as a detachable connection of a

group of combined sealing structures.
B. Flange connection is an important connection method for pipeline construction.
C. The flange connection is easy to use and can withstand large pressures.



9.Tensile requirements of gr2 gr5 gr7 titanium flanges:

Grade Tensile strength(min) Tensile strength(min) Yeild strength(min) Yeild strength(min)

Elongation

(min)

  Ksi Mpa Ksi Mpa %
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20





Detailed Images


Laser marking is available:(standard,product name, size,heat No. etc.)

Gr2 Titanium Weld Neck Flanges Gr5 Titanium Pipe Fitting 2" Sch.20s Class 300 2



Good surface with precise machining

Gr2 Titanium Weld Neck Flanges Gr5 Titanium Pipe Fitting 2" Sch.20s Class 300 3

Gr2 Titanium Weld Neck Flanges Gr5 Titanium Pipe Fitting 2" Sch.20s Class 300 4



About our company:

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---

It is famous for manufacturing titanium, called “China Titanium Valley”.We are specialized in manufacturing,

researching and marketing for titanium mill products and equipment.

Titanium flange and titanium forging is one of our advantageous products.With over 15 years export

experience, our titanium products was sold to Asia, Europe, North America in large quantity, and

received wide acclaim.

FAQ

Q1.--How can you ensure the product quality?

   --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard).

   --We make 100% inspection before shipment.

   -- Company certificate:ISO 9001:2008 ;products certificate:EN10204/3.1

Q2.--Can you print our LOGO on the products?

   --Sure, and we welcome the customerized products.

Q3.--Can we get the free sample?

   --Sure.

Q4.--What about the payment terms?

   --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted.

Q5.--Do you have your website?

   --Yes, Please click here. http://www.lihua-group.com (Independent website)

Q6.--What is the necessary information for a inquiry?

   --Product name, specification, material grade and quantity.

Welcome to contact!
