Product Details
Place of Origin: BaoJi Shaanxi China
Brand Name: LHTI
Certification: ISO9001
Model Number: LH-01
Payment & Shipping Terms
Minimum Order Quantity: 1kg of each size
Price: US dollar $23/kg-US dollar $31/kg
Packaging Details: Each tube with environmental protection bags,outside is standard plywood case
Delivery Time: 15 working days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal.etc
Supply Ability: 5 tons per month
Key Words 1: |
ASTM B338 Titanium Tube |
Key Words 2: |
High Quality GR2 Titanium Tube |
Key Words 3: |
Titanium Tube For Heat Exchanger |
Material: |
Pure Titanium |
Grade: |
Grade 2 |
Purity: |
99.5%min |
Length: |
Max 12 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |
Key Words 1: |
ASTM B338 Titanium Tube |
Key Words 2: |
High Quality GR2 Titanium Tube |
Key Words 3: |
Titanium Tube For Heat Exchanger |
Material: |
Pure Titanium |
Grade: |
Grade 2 |
Purity: |
99.5%min |
Length: |
Max 12 Meter |
Surface: |
Pickling Surface |
Application: |
Heat Exchanger |
Production Time: |
15 Working Days |
Payment Term: |
T/T,Paypal,Western Union Etc |

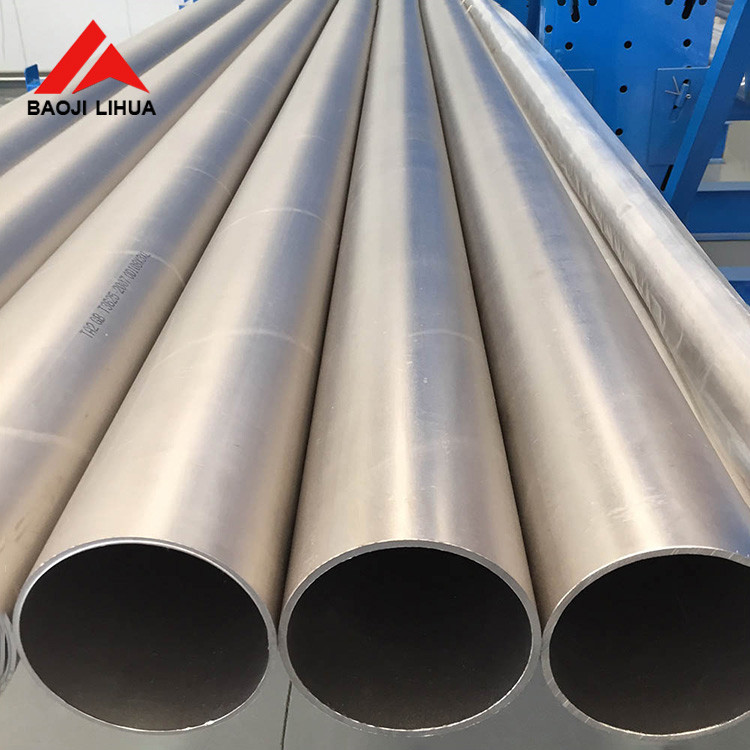

ASTM B338 Gr2 Titanium Seamless Tube 38mm Thk1.2mm with Length 6000mm For Heat Exchanger Equipment
Titanium tubes have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes.
1.Titanium Tube Information
| Name | Pure Titanium & Titanium Alloy Tube /Pipe/Tubing |
| Tube Shape | Round Square Flat Coil |
| Material | Gr1,Gr2,Gr7,Gr12. |
| Standard | ASTM B338 |
| Type |
Seamless |
| OD | 3-114mm or as customized |
| Wall Thickness | 0.2-50mm or as customized |
| Length | Max 6 meter |
| End | Plain End, Beveled End, Threaded |
| Certificate | EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report---TUV,BV,SGS etc |
| Application |
Off-Shore Oil Drilling Companies Power Generation Petrochemicals Gas Processing Specialty Chemicals Pharmaceuticals Pharmaceutical Equipment Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry |
| OD (mm) | WT (mm) | OD (mm) | WT (mm) | OD (mm) | WT (mm) |
| 3.3 | 0.25 | 24 | 0.7 | 33.4 | 4.55 |
| 4 | 0.25 | 25 | 0.5 | 38 | 1.2 |
| 4.9 | 0.3 | 25 | 0.7 | 38.1 | 1.24 |
| 6.35 | 0.889 | 25 | 1.5 | 40 | 0.5 |
| 12.7 | 0.8 | 25 | 2 | 45 | 1.5 |
| 15.88 | 0.5 | 25 | 2.2 | 45 | 2 |
| 15.88 | 0.71 | 25.4 | 0.89 | 48.26 | 1.65 |
| 19 | 0.508 | 25.4 | 1.07 | 48.3 | 5.08 |
| 19 | 0.711 | 25.4 | 1.473 | 50.8 | 0.7 |
| 19 | 0.9 | 25.4 | 2.108 | 50.8 | 0.889 |
| 19 | 1.24 | 26.67 | 2.11 | 50.8 | 0.9 |
| 19.05 | 0.56 | 26.67 | 3.912 | 51 | 1.5 |
| 19.05 | 0.9 | 31.75 | 0.7112 | 56 | 0.8 |
| 19.05 | 1.24 | 31.75 | 0.889 | 60.3 | 1.5 |
| 19.05 | 1.65 | 31.75 | 1 | 60.325 | 0.889 |
| 19.05 | 3 | 31.8 | 0.89 | 62 | 2 |
| 21.34 | 2.11 | 33.4 | 2.77 | 89 | 2 |
| 24 | 0.5 | 33.4 | 3.38 | 114.3 | 3.05 |
Chemcial Composition
| Element | N | C | H | Fe | O | Al | V | Mo | Ni | Pd | Ti |
| Type | |||||||||||
| GR.1 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.2 | ≤0.18 | Residual | |||||
| GR.2 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | Residual | |||||
| GR.3 | ≤0.05 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.35 | Residual | |||||
| GR.7 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | 0.12-0.25 | Residual | ||||
| GR.9 | ≤0.02 | ≤0.08 | ≤0.015 | ≤0.25 | ≤0.15 | 2.5-3.3 | 2.0-3.0 | Residual | |||
| GR.12 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | 0.2-0.4 | 0.6-0.9 | Residual |
Available dimensions of titanium tube
Outside Diameters:5m to 159mm (seamless tube)
Wall thickness:0.5mm to 7mm
Length:1 meter to 12 meters
Outside Diameters:55m to 914mm (welding tube)
Wall thickness:2mm to 10mm
Length:1 meter to 6 meters
Customer fedback Photo
We are one of the professional titanium mill product manufactuers with Foreign Trade Department,and certified to ISO 9001:2008, we are be able to supply titanium products with full range of sizes in all grades under ASTM,ANSI,DIN,JIS with high quality and competitiveprice. Seamless titanium tube.Our ISO certificate is your order's premise.You can trust us.power and chemical plant,autumotive components,sports,marine corrosion.
We still have Titanium flange,titanium bends,titanium Pipe fittings etc.
More details please feel free contact us.
