Home > products > Titanium Tube > OD 38mm WT 1.2mm Gr2 Titanium Tube Metal Titanium Seamless Pipe

OD 38mm WT 1.2mm Gr2 Titanium Tube Metal Titanium Seamless Pipe

Product Details

Place of Origin: China

Brand Name: LH

Certification: ISO9001:2015

Model Number: LHTG

Payment & Shipping Terms

Minimum Order Quantity: 100kg

Price: USD15.00-29.00 per kg

Packaging Details: Standard export packing

Delivery Time: 7-25days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000 kg per month

Get Best Price
Highlight:

titanium round tube

,

titanium welded pipe

Grade:
Gr2
Shape:
Round Shape
Outer Diameter:
3mm -57mm
Material:
Titanium
Standard:
ASTM B338
Length:
0- 6000mm
Technique:
Seamless Or Welding
Wall Thickness:
Requirement
Inside Diameter:
Requirement
Product Name:
Titanium Tube
Surface:
Polishing Or As Your Request
Color:
Metal
Grade:
Gr2
Shape:
Round Shape
Outer Diameter:
3mm -57mm
Material:
Titanium
Standard:
ASTM B338
Length:
0- 6000mm
Technique:
Seamless Or Welding
Wall Thickness:
Requirement
Inside Diameter:
Requirement
Product Name:
Titanium Tube
Surface:
Polishing Or As Your Request
Color:
Metal
OD 38mm WT 1.2mm Gr2 Titanium Tube Metal Titanium Seamless Pipe

Titanium valley supply ASTM B338 Gr2 OD38mm WT1.2mm seamless titanium tube/pipe





1. Titanium tube feature



Titanium tubes have the feature of lightweight, high strength and superior mechanical properties. Titanium tubes are widely used in heat-exchange equipment, such as tube-type heat-exchanger, coiled type heat-exchanger, coil heat-exchanger, condenser, evaporator, and transmission pipeline. Many nuclear power industries use titanium tubes as the unit standard tubes.



2. Titanium tube advantage



1). The titanium tube has plasticity. The elongation of high purity titanium tube can reach 50 ~ 60% and the reduction of the section can reach 70 ~ 80%. Although the strength of high purity titanium tubes is low, the mechanical properties of pure industrial titanium can be significantly enhanced by a small number of impurities and the addition of alloying elements, so that its strength can be compared with that of high strength. This means that the industrial pure titanium pipe, as long as there is a small number of clearance impurities and other metal impurities, it can be made both with high strength, and proper plasticity.


2). The specific strength (strength to weight ratio) of the industrial pure titanium tube is very high in the metal structure materials, its strength, and steel, but its weight is only 57% of the steel.


3). The heat resistance of the titanium tube is very strong, and it can maintain good strength and stability in the atmosphere of 500℃.


4). Titanium tube also has good low-temperature resistance, even at -250℃ ultra-low temperature, it still has a high impact strength, can withstand high pressure and vibration.


5). Strong corrosion resistance, which is due to its strong affinity to oxygen, can generate a dense oxide film on its surface, which can protect titanium from medium corrosion. Therefore, titanium has good stability in acid, alkaline, neutral salt solution and oxidizing medium, better than existing stainless steel and other non-ferrous metals corrosion resistance.



3. Chemical requirements



ASTM No. Fe max O max N max C max H max Pd Al Bal
Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti


4. Tensile requirements



ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min %
ksi Mpa ksi Mpa
Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

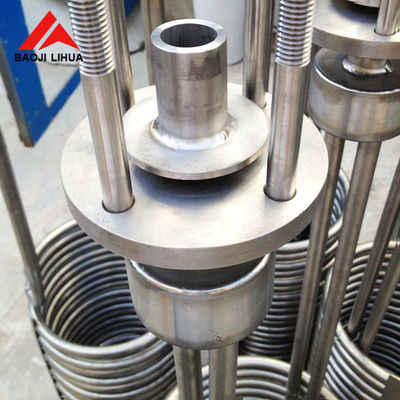

5. Detailed Images

OD 38mm WT 1.2mm Gr2 Titanium Tube Metal Titanium Seamless Pipe 0

OD 38mm WT 1.2mm Gr2 Titanium Tube Metal Titanium Seamless Pipe 1

OD 38mm WT 1.2mm Gr2 Titanium Tube Metal Titanium Seamless Pipe 2

OD 38mm WT 1.2mm Gr2 Titanium Tube Metal Titanium Seamless Pipe 3

OD 38mm WT 1.2mm Gr2 Titanium Tube Metal Titanium Seamless Pipe 4OD 38mm WT 1.2mm Gr2 Titanium Tube Metal Titanium Seamless Pipe 5



6. Quality Assurance:



A. According to globally recognized standards, such as ASTM, AMS, ASME. Provide third-party inspection reports. ISO Quality Management System.



B. Visual inspection to check the surface quality, ensuring without flaw, black dot, and other defects.



C. Chemical Composition making sure all chemical components can satisfy customer’s demands.



D. Mechanical Property testing making sure all titanium products have satisfying mechanical features before delivery.



7. FAQ



1. Any discount?
A: The prices we quote are all wholesale prices in the first place. Meanwhile, our best price will be offered according to your order quantity, so please specify your purchase quantity when you inquire. The more your order, the better discounts we will offer.



2. Are you a manufacturer?
A: Yes. As a manufacturer with 13 years of experience, we’ve gained adequate expertise and proficiency. Relying on our own factory, we offer you our best quality products as we have fully equipped the Product Department and QC Department.



3. How do I know if my products are delivered?
A: We will inform you Tracking No. for your reference or you can contact us anytime for shipment information.



4. Has your company acquired any certificate?
A: We are a certified manufacturer with our auto parts approved by the ISO9001 Quality Management System.



5. How about the quality of the products?
A: We guarantee strict control over every detail of the products. Each product is carefully inspected and tested before delivery.



6. What about payment terms?
A: T/T, L/C, Western Union Paypal are accepted.



7. How is your MOQ?
A: The minimum quantity for certain items is only 20pcs. But MOQ can be lowered when you buy several different kinds of products together. For more details, please feel free to contact us at any time.



8. How about the delivery time?
A: Usually within 5-7 days via express delivery. But it depends on your order quantity as well.



9. If you have additional questions, please feel free to contact us.
