| Place of Origin: | Baoji, Shaaxi, China |
|---|---|
| Brand Name: | LHTi |
| Certification: | ISO9001:2015;BV;TUV; SGS |
| Model Number: | Ti-04 |
| Minimum Order Quantity: | 100 kgs |
| Price: | USD26.5-38.500 per kg |
| Packaging Details: | Standard export packaging: soft foam protection inside, plywood outside |
| Delivery Time: | 7-20 work days |
| Payment Terms: | Western Union, T/T, D/P, D/A, L/C |
| Supply Ability: | 200000 kgs per month |
| Porudct Name: | Titanium Sheet/ Titanium Plate | Standard: | AMS 4911 |
|---|---|---|---|
| Material Grade: | Ti6Al4V (Grade 5 Titanium) | Technology: | Cold Rolled, Hot Rolled |
| Situation: | Annealed | Shape: | Straight |
| Surface: | Polished, Acid Washing | Application: | Aerospace Etc. |
| Highlight: | thin titanium sheet,forming titanium sheet |
||
Titanium grade 5 is widely used in aviation industry and machinery industry, automobile industry
--It has better physical properties and hardness than pure titanium.

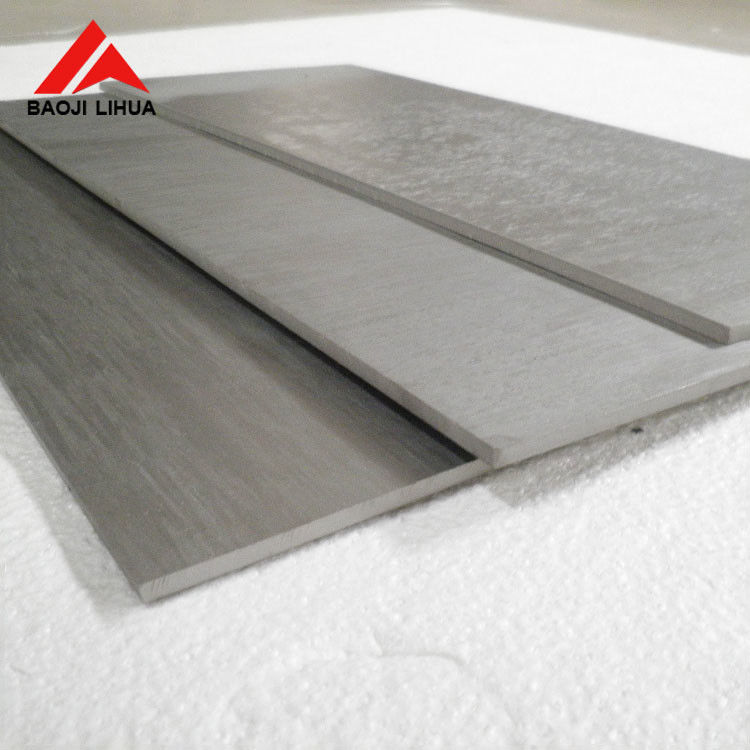

Product name: Ti6Al4V Grade 5 titanium sheet plate
Standard: AMS 4911
Material: Gr5 titanium
Common titanium plate size:
Thickness(0.5mm-0.7mm)*Width≤1000mm*L≤2000mm
Thickness(0.8mm-4.0mm)*Width≤2000mm*L≤6000mm
Thickness(5.0mm-50mm)*Width≤2000mm*L≤6000mm
Thickness(60mm-100mm)*Width≤2000mm*L≤6000mm
Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc
Supply status: Annealed(M)
Package: Carton or wooden case.
MTC: EN10204.3.1 certificate
MOQ : 100 kgs
Applications : Aerospace etc.
| Chemical composition | ||
| Min | Max | |
| Aluminum | 5.5 | 6.75 |
| Vanadium | 3.5 | 4.5 |
| Iron | ----- | 0.30 |
| Oxygen | ----- | 0.20 |
| Carbon | ----- | 0.08 |
| Nitrogen | ----- | 0.05 |
| Hydrogen | ----- | 0.015 |
| Yttrium | ----- | 0.005 |
| Other elements each | ----- | 0.1 |
| Other elements each | ----- | 0.4 |
| Titanium | Remainder | |
Detailed pictures:
Quality test:
Packaging and shipping:
Standard export packaging
Small size titnium sheets, each will be wrapped by white paper.
Big size titanium sheets, there will be a pearl cotton between each sheet to apart them and reduce
collisions and friction.
Inside use foam and pearl cotton padding to protect cargo,to ensure the safety of long-distance
transportation.
Main cooperating courier companies:TNT FedEx DHL UPS, and choose the most favorable courier
company for customers according to different countries.
For air and sea shipping, we always choose the fastest and safe route.
Our company has more than 5 years of experience in producing and exporting titanium plates. We
have advanced imported machinery and equipment, and the produced titanium plate has low cost
and high quality. Therefore, it is possible to provide customers with preferential prices while ensuring
good quality. Our titanium plates are produced according to American standards, such as ASM 4911,
ASTM B265.We mantain long-term cooperation with international testing institutions, such as SGS,
TUV,BV etc.Our products can meet these standards.
